Our breakthrough UV technology addresses durability issues related to abrasion and solvents and also provides more effective, opaque white ink performance. This UV printing process is great for a very wide variety of commercial and industrial applications . The Epson series UV printer delivers flawless graphics and text at resolutions up to 2400dpi.
Perfectly combined the hight speed and high quality printing effect.

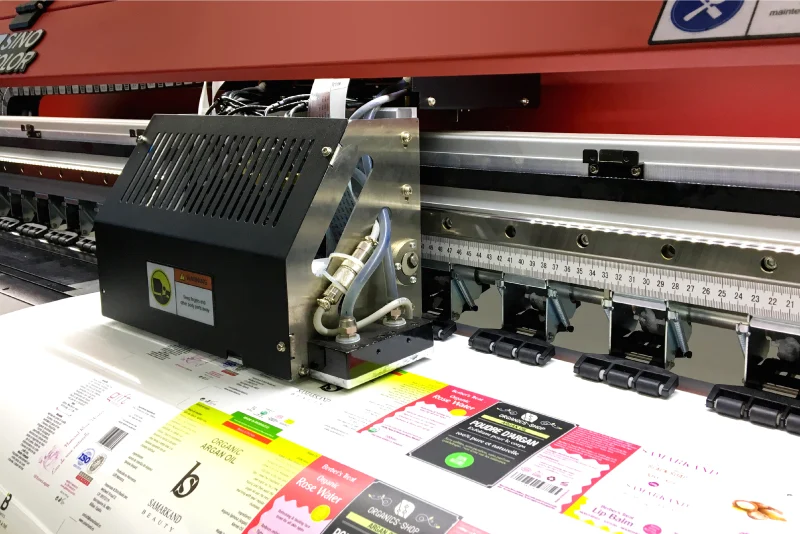

It is one of the world’s top UV-LED, long lifespan, low heat, and instant on-off
Wide pinch roller keeps smooth movement of the media. And it has proper pressure to ensure accurate media step while not make any footprint of the pinch roller.

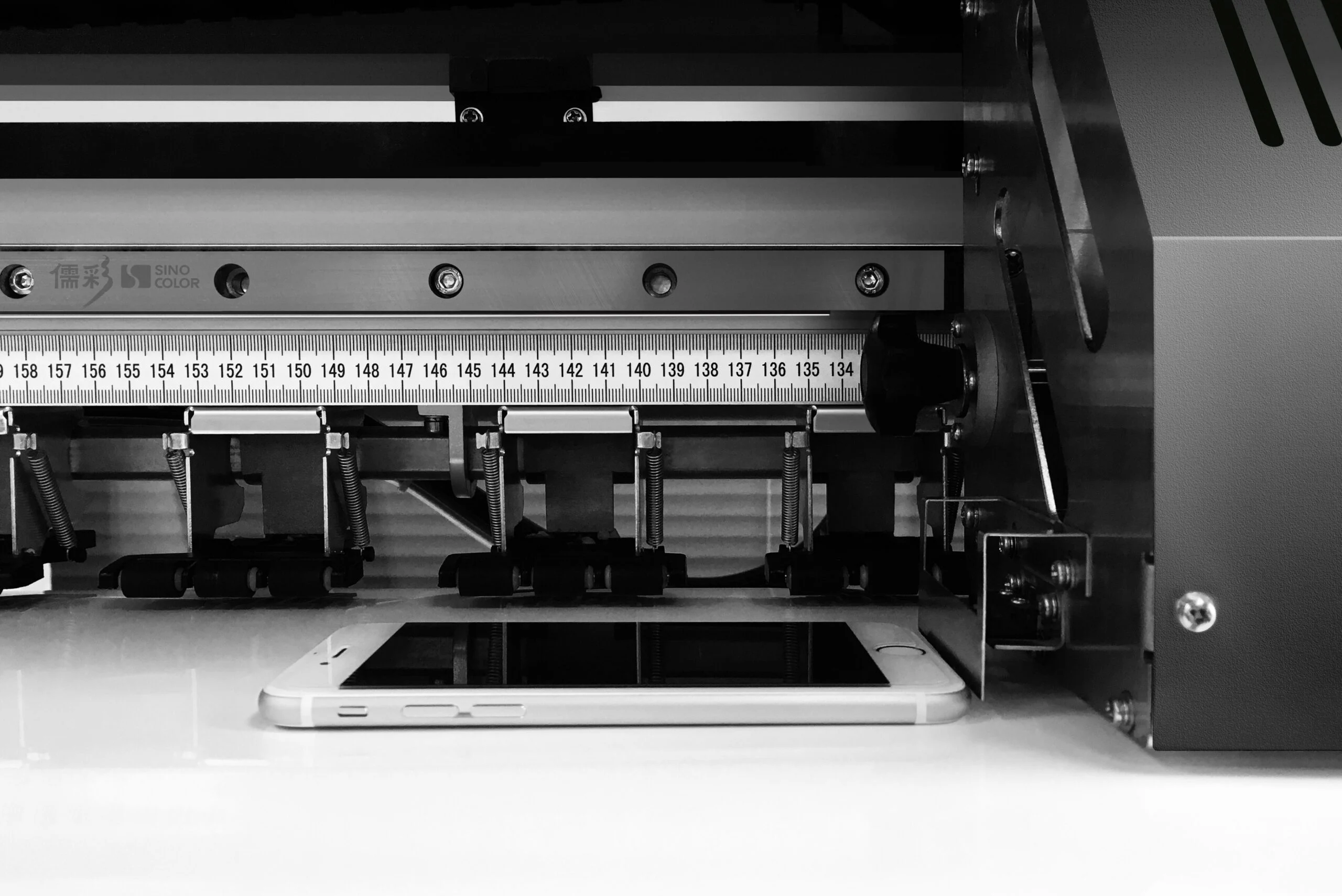

Anti-collision system is equipped to protect the printhead and carriage all the time
It offers adjustable roll widths, making it suitable for various sized media rolls and applications
Adopts the latest program Intelligent Error Auto-Detection boards, it can guide user to find solution very quickly.
Convenient for checking backlit material printing quality.
High quality. Durable. Guarantee smooth movement of carriage.
IGUS drag chain itself is a guarantee of quality, takes the printer stability to a new level.
Increase machine accuracy and extend machine durability
Since the double heads printer has wider carriage, double slider is necessary to ensure stable movement of the carriage.
Permitting the printer to provide smooth gradations, exceptional solid colors and optimum image quality in all print modes

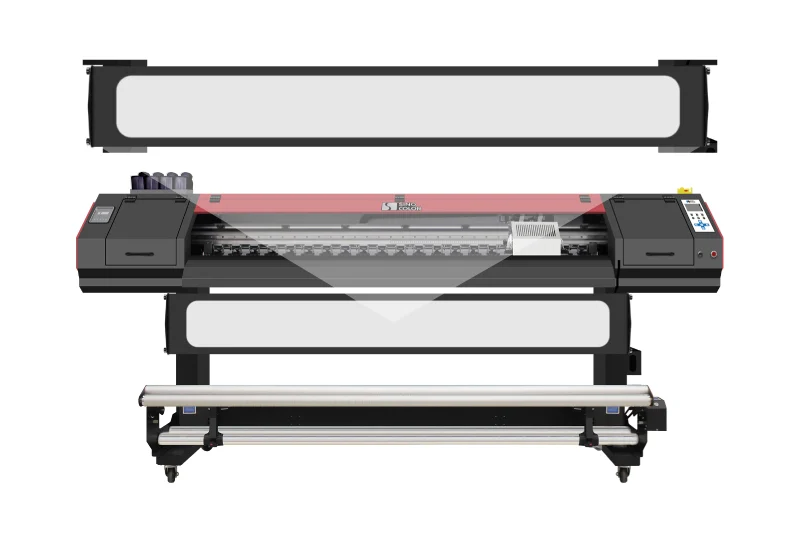

with the LED lamp strip, uses could check out the print result more easily
Our breakthrough UV technology addresses durability issues related to abrasion and solvents and also provides more effective, opaque white ink performance. This UV printing process is great for a very wide variety of commercial and industrial applications . The Epson series UV printer delivers flawless graphics and text at resolutions up to 2400dpi.
| Model NO. | UV-740D | |
|---|---|---|
| Printhead | 2/3 x Epson i1600-U printhead | |
| Resolution(dpi) | 2400 dpi MAX | |
| Media | Width | 1.8 meter |
| Types | Canvas,Leather,PET Film,Reflective Film,Soft Ceiling Film and a lot more flexible material… | |
| Ink | Type | UV Ink |
| Color | CMYK / CMYK+W / CMYK+W+CMYK / CMYK+W+Neon M&Y | |
| Curing | High Quality Water Cooling UV-LED Lamp | |
| Speed | Printing Mode | CMYK |
| Draft | 16 ㎡/h | |
| Standard | 12 ㎡/h | |
| Quality | 8 ㎡/h | |
| Cleaning | Automatic Cleaning, Anti-Clogging Flash Function & Capping System | |
| Feed & Take Up | Automatic Media Feeding (Standard) & Take Up System (Optional) | |
| Rip Software | Maintop (Standard) / FlexiPrint (Optional) | |
| Interface | USB 3.0 | |
| Power | AC 110/ 220V, 50/ 60Hz, 1600W | |
| Size | Machine | L3130×W710×H1380 mm |
| Packing | L3210×W1000×H740 mm | |
| Weight | Machine | 280 KG |
| Packing | 400 KG | |
