Compare with the split type direct polyester printer, this new launched FP-740P&FP-740S series designed the printer and heater to be integrated. Make the machine installation to be quite easy. Besides, the optimized structure and component, perfectly meet the requirement of high speed printing. And high precision material feeding and take-up are guaranteed. It is the professional choice for direct polyester printing. Great partner for extending your business of flags, high-end light box, and display board.

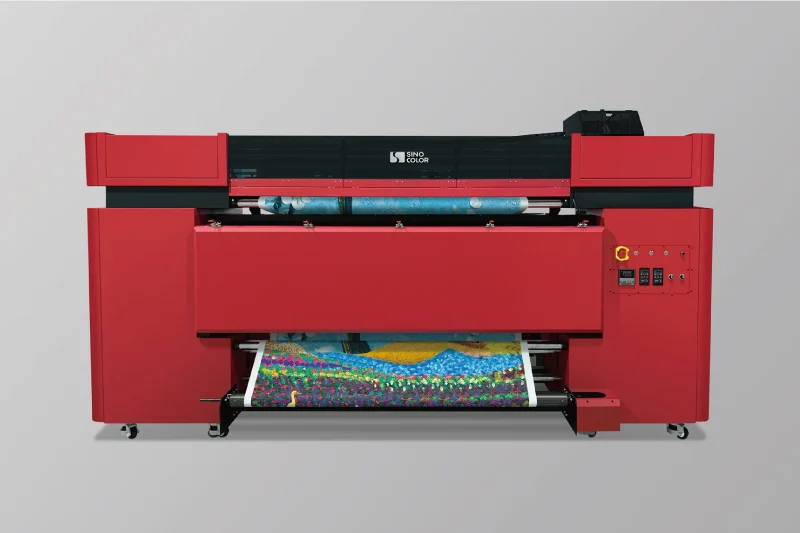

Integrated design of printer and heater. Make the installation to be quite easy. Professional choice for direct polyester printing.

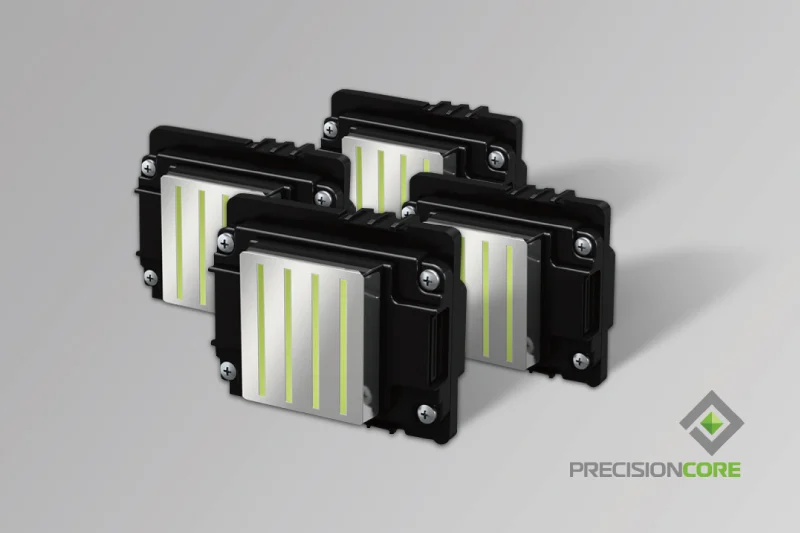

Equipped with 2 or 4 pieces Epson official supplied i3200 printheads,powered by advanced precisioncore technology, born for speed and resolution.

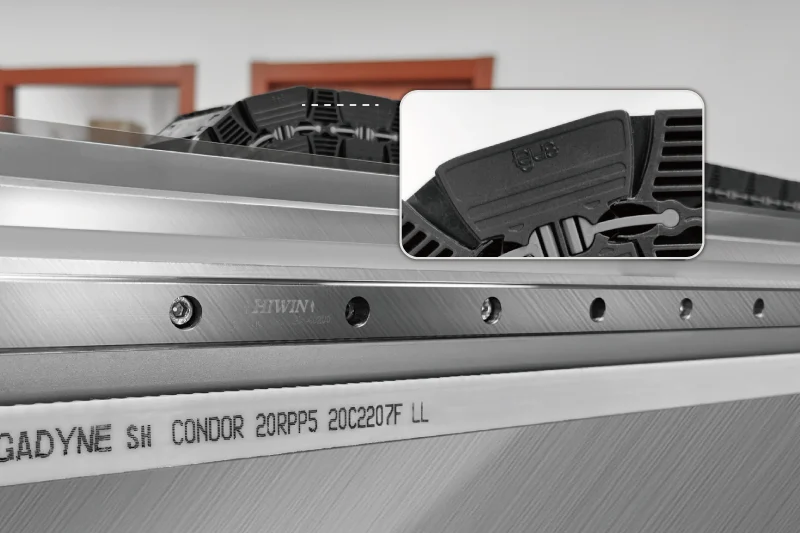

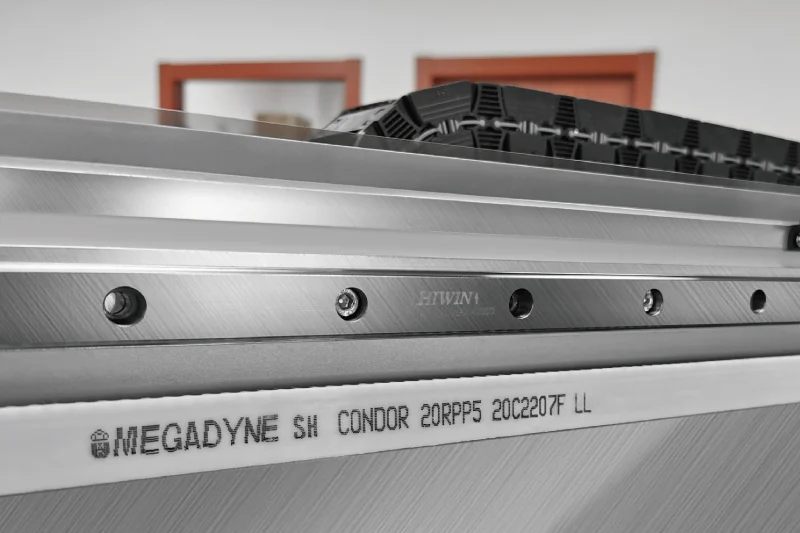

Branded accessories are used for high attrition area. Greatly increased the lifetime and stability of the machine. For example, the Hiwin guide rail, German Igus drag chain, Italian Megadyne belt.

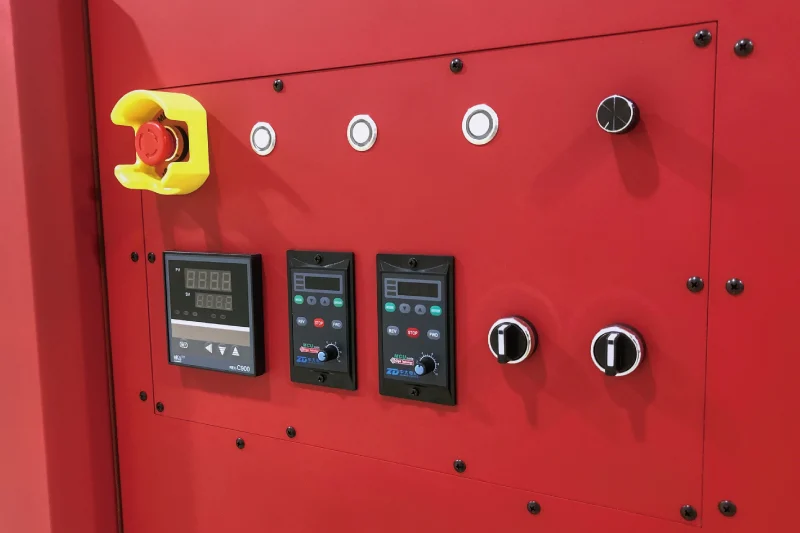

Integrated machine control centre. Convenient and high-efficiency.

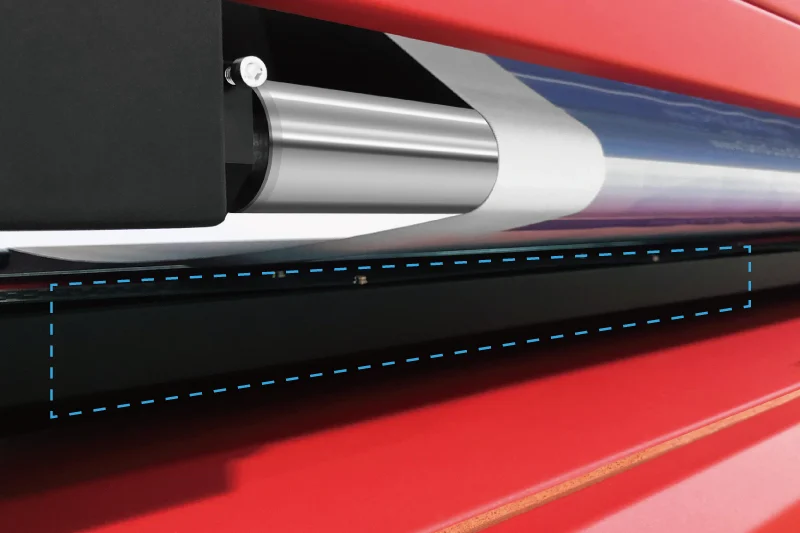

Extra IR heating device is equipped for pre-heating of the printed material. Effectively protect the fabric guide rail from soiling.

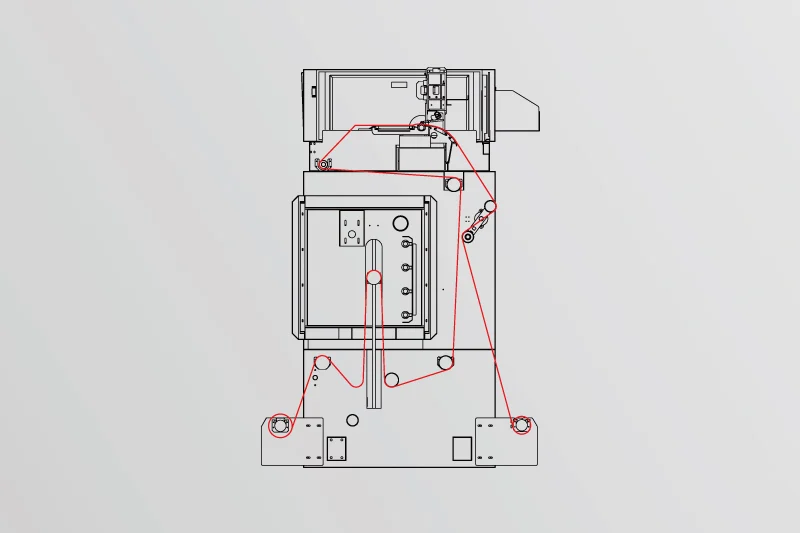

Apply to material with different elasticity
Ultra wide one-time molding aluminum beam. Ensure the high resolution printing.

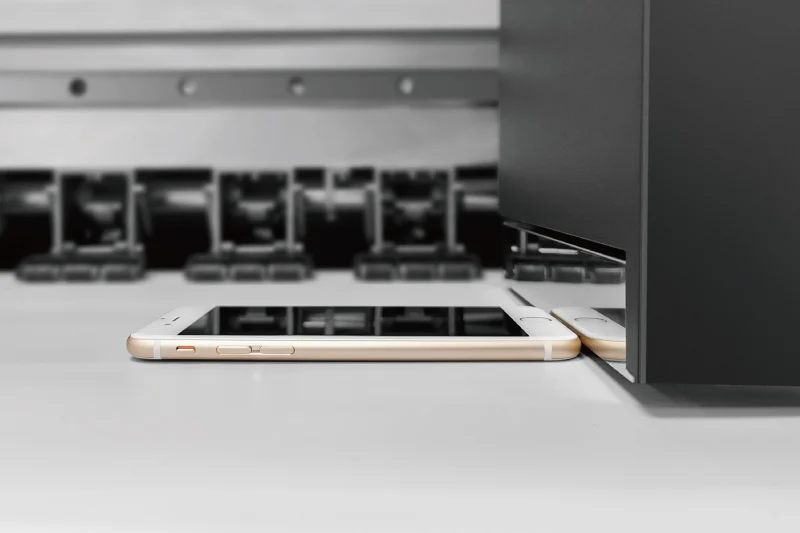

Printer will automatically stop when the printhead carriage hit any unexpected object during working, and system memory function support continuing printing from the interruption part, reduce the material waste.

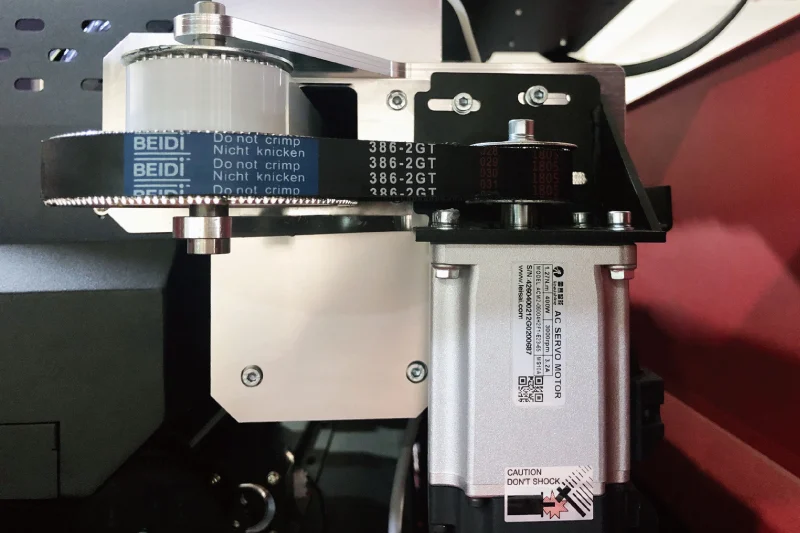

High power AC Servo Motor for X direction.Perfectly meet the requirement of high speed printing.

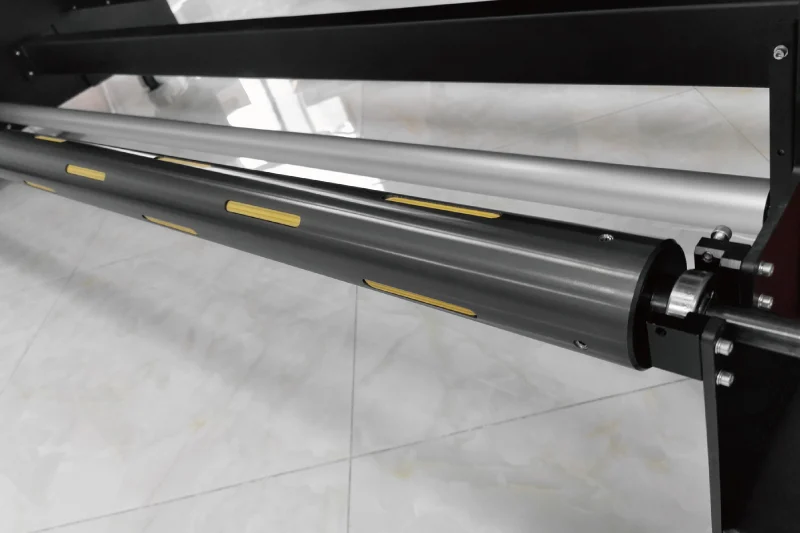

Heavy duty material roller, load-bearing can reach maximum 180KG. And it can adapt to different diameter material by adjusting the air pressure inside the roller.

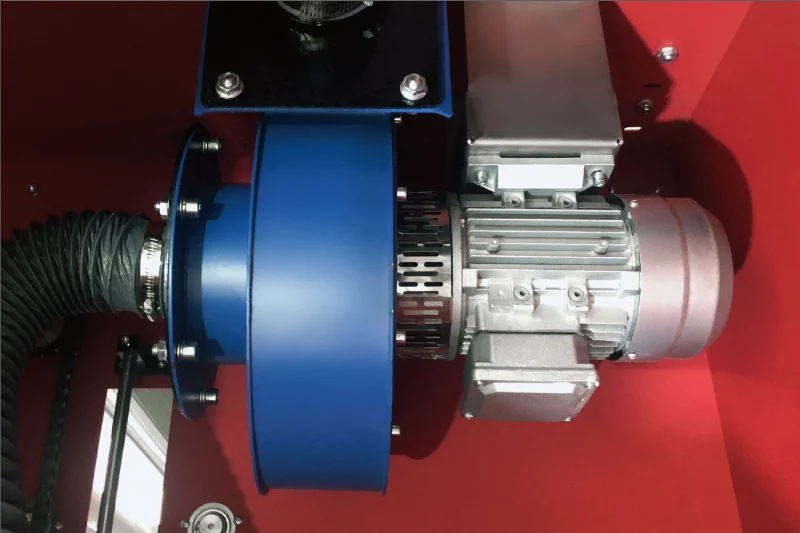

Well designed integrated exhaust system is equipped. Space saving, Tidy.
Compare with the split type direct polyester printer, this new launched FP-740P&FP-740S series designed the printer and heater to be integrated. Make the machine installation to be quite easy. Besides, the optimized structure and component, perfectly meet the requirement of high speed printing. And high precision material feeding and take-up are guaranteed. It is the professional choice for direct polyester printing. Great partner for extending your business of flags, high-end light box, and display board.
| Model NO. | FP-740D (Pro) | FP-740S (Pro) | FP-1260S (Pro) | |
|---|---|---|---|---|
| Printhead | Type | 2/4 Epson i1600 | 2/4 Epson i3200 | 2/4 Epson i3200 |
| Nozzles | 1600 Nozzles Per Head | 3200 Nozzles Per Head | 3200 Nozzles Per Head | |
| Height | 2-8mm Above Media Adjustable | |||
| Max Printing Width | 1.8m | 3.2m | ||
| Resolution (dpi) | 2400 dpi | |||
| Media Types | Polyester (For flag, display board, light box, etc) | |||
| Ink | Type | Dye Sublimation Ink | ||
| Color | C M Y K | |||
| Droplet | 1.5 – 21pl Variable | |||
| Speed | Draft | 108 ㎡/h | 120 ㎡/h | 150 ㎡/h |
| Production | 54 ㎡/h | 60 ㎡/h | 75 ㎡/h | |
| High Quality | 36 ㎡/h | 40 ㎡/h | 50 ㎡/h | |
| Feeding & Take-up | Automatic Tension Type Media Feeding & Take-up System (Standard) | |||
| Cleaning System | Automatic Cleaning, Anti-Clogging Flash Function & Capping System | |||
| Fabric Drying System | Infrared Heater | |||
| Environment | Temperature: 20-28°C, Humidity: 40-60% | |||
| Rip Software | Maintop(Standard) / FlexiPrint(Optional) | |||
| Control Software | SinoColor Print Console | |||
| Interface | USB 3.0 | |||
| Operation System | Windows 7 / XP/ 10 | |||
| Power | AC 110/ 220V, 50/ 60Hz, 6000W (FP-740), 8800W (FP-1260) | |||
| Size&Weight | Machine | L3760×W1140×H1720 mm / 790KG | L5130×W1270×H1730 mm / 1000KG | |
| Packing | L3840×W1240×H1900 mm / 950KG | L5240×W1370×H1900 mm / 1200KG | ||
