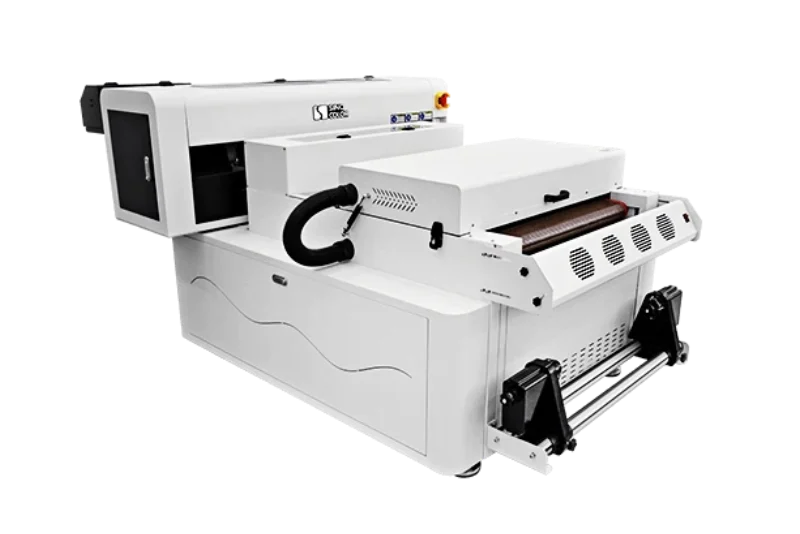

The Magicube DTF-600/DTF-800 series printer, is one machine that built for DTF garment printing. Thus it considerred more about the golden size, the gurantee of high precision, the best combination of printing & powder treating. It’s specialist to support your DTF printing business.
Compact and elegant design,strong ,space saving, easy operation,provide high accuracy output.Not only one partner for your printing business, but also a decoration for the company.

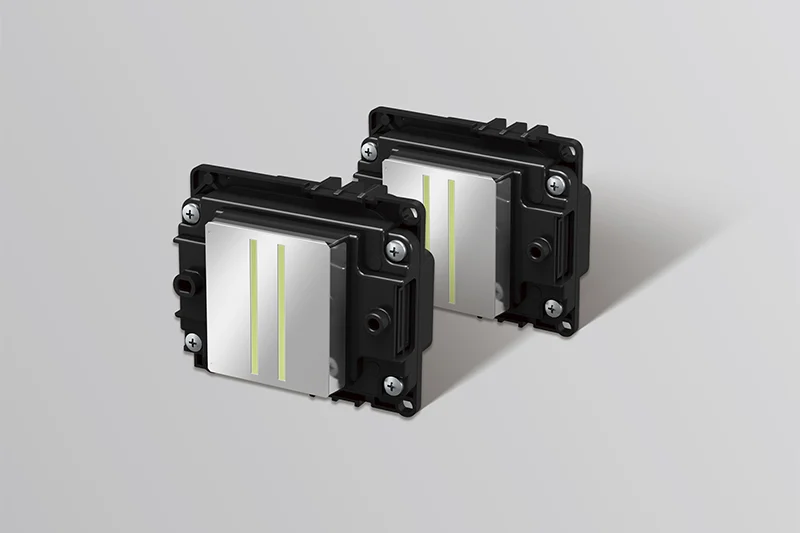

Equipped with Epson officially supplied i1600 /i3200 heads (2/3/4 pcs). Powered by PrecisionCore technology. Quality and speed are guaranteed.

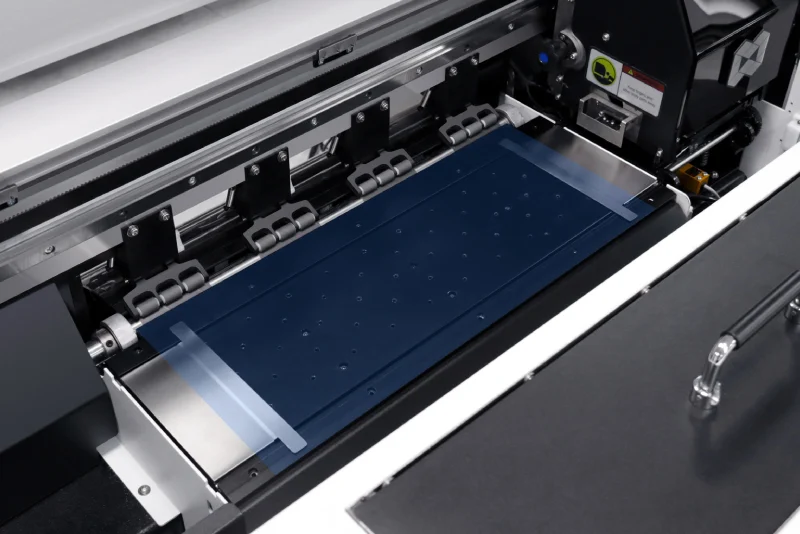

40cm working width and well matched PET film,and achieve golden production size for garments printing.

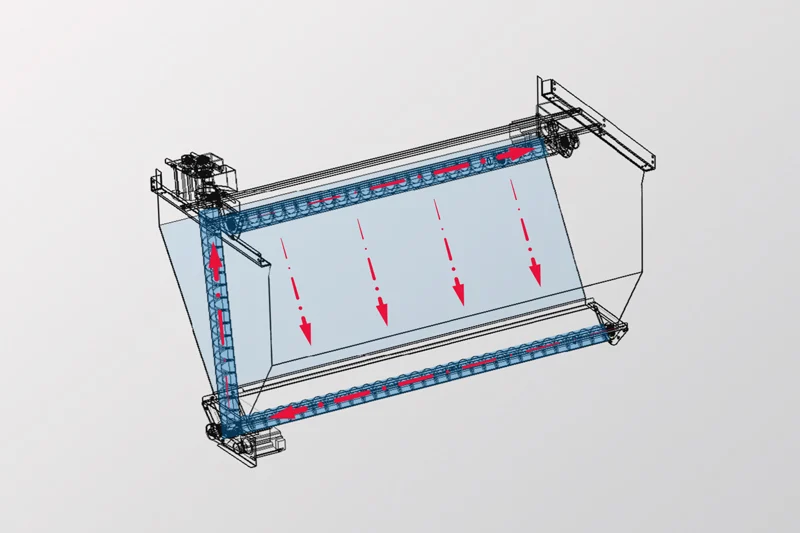

Auto Powder Collecting & Re-using supported by mechanical spiral structure.ls labour saving, and greatly increase the working efficiency.
Apply to different fabrics including cotton, polyester,nylon, denim,etc. Make the mass production of DIY t-shirts, hoodies, sportswear,pants,canvas bags to be convenient.
Reduce problems caused by white ink precipitation.

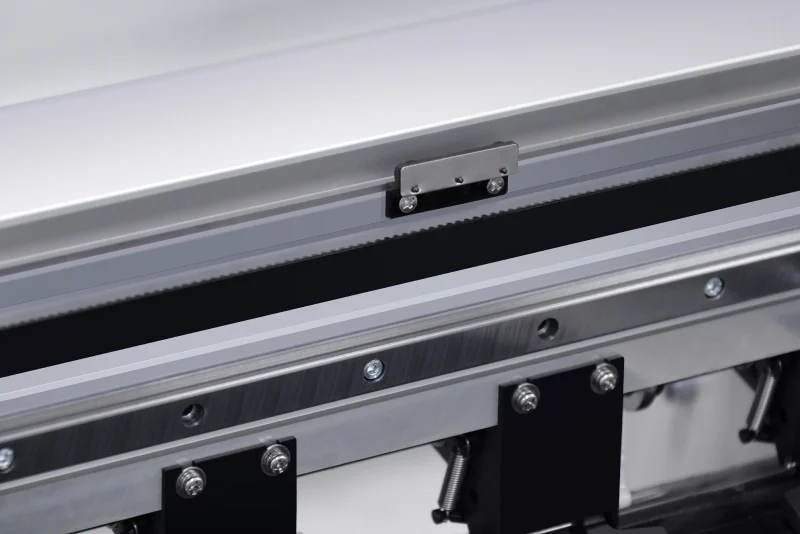

Branded accessories such Hiwin guide rail, Italian Megadyne belt are used for high attrition area, with the one time molding aluminum beam, greatly increased the precision, stability and lifetime of the machine.

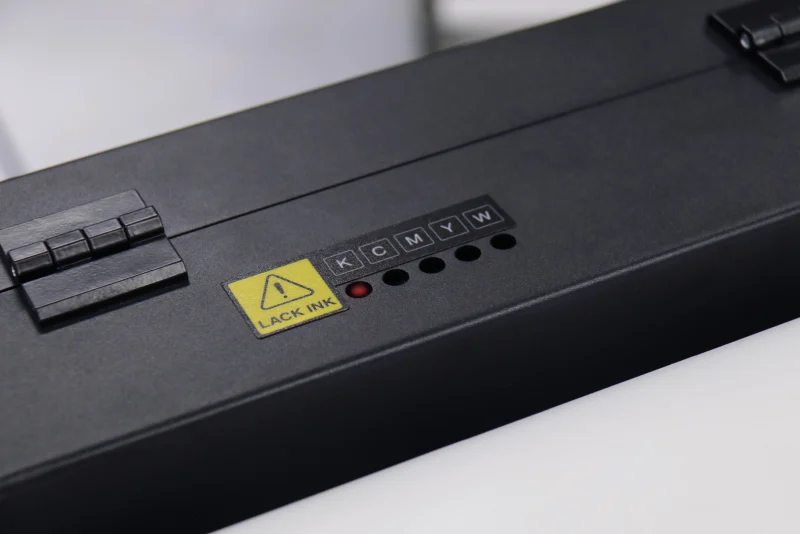

Low ink alarm is equipped to protect the printer.

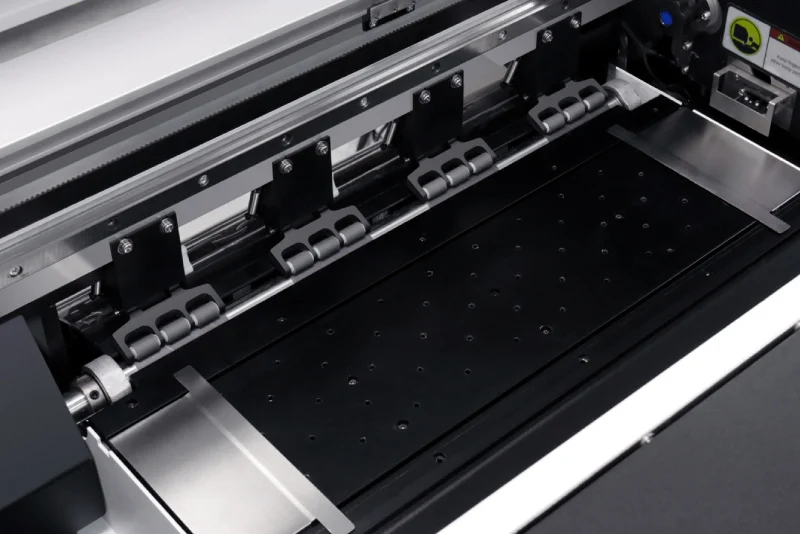

One button to lift up and down the ultra-wide pinch roller.
Convenient and high-efficiency.

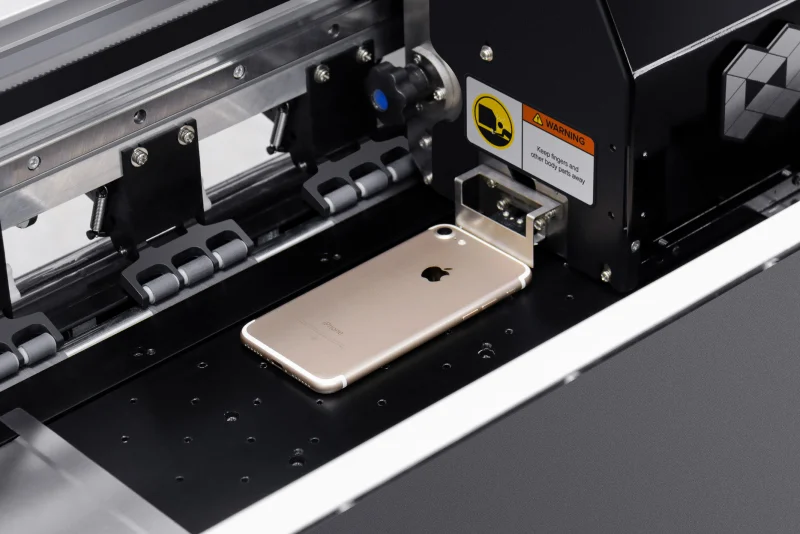

Printer will automatically stop when the printhead carriage hits any unexpected object during working, and the system memory function supports continuing printing from the interruption part, reducing the material waste.

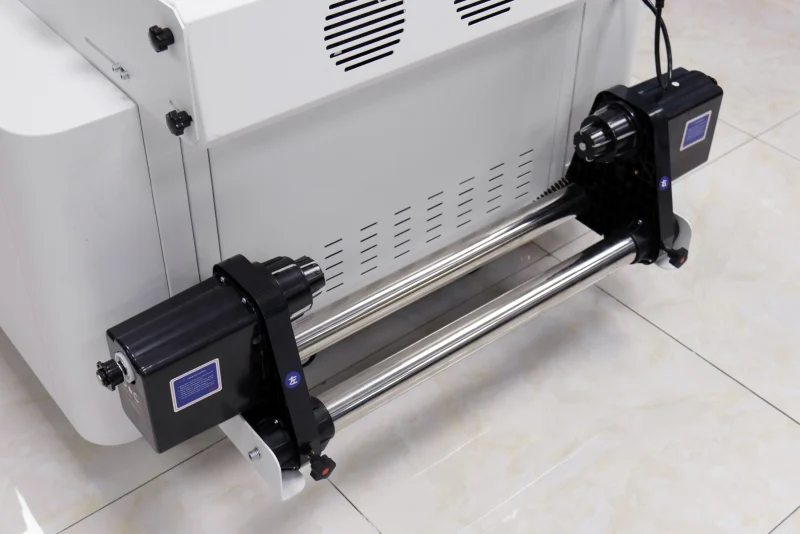

Well-designed media take-up system with motors on both side to assure a smooth and balanced material collecting. High precision printing is guaranteed.

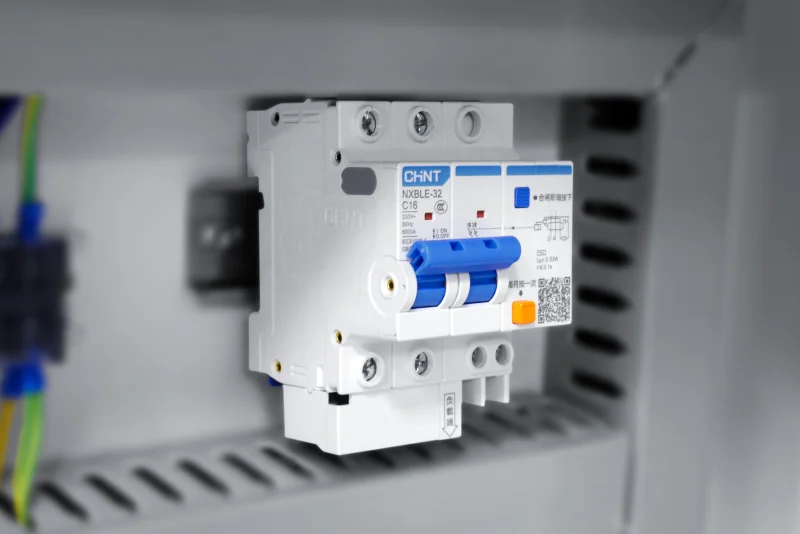

Branded circuit breaker to protect the safety of the whole electronic system.
The Magicube DTF-600/DTF-800 series printer, is one machine that built for DTF garment printing. Thus it considerred more about the golden size, the gurantee of high precision, the best combination of printing & powder treating. It’s specialist to support your DTF printing business.
| Model No. | DTF-600D | DTF-600S | DTF-800D | DTF-800S | |
|---|---|---|---|---|---|
| Printhead | 2/3/4 Epson i1600 | 2/3/4 Epson i3200 | 2/3/4 Epson i1600 | 2/3/4 Epson i1600 | |
| Resolution | 2400dpi MAX | ||||
| Ink Color | CMYK+W/ CMYK+W+Fluorescent Magenta & Yellow & Green & Orange | ||||
| Media | Size | 60cm | 80cm | ||
| Types | PET Film | ||||
| Speed | Draft | 8 ㎡/h（2 heads） | 19 ㎡/h（4 heads） | 9 ㎡/h（2 heads） | 21 ㎡/h（4 heads） |
| Standard | 4.5 ㎡/h（2 heads） | 9.5 ㎡/h（4 heads） | 5 ㎡/h（2 heads） | 11.5 ㎡/h（4 heads） | |
| Ink Type | Pigment Ink | ||||
| Ink Droplet | 1.5-21pl variable | ||||
| Application | DIY Printing On T-shirt, Hoodies, Cap, Bag, Etc. | ||||
| Powder Shaking And Heating | Standard Equipped | ||||
| Powder Collecting And Re-using | Standard | ||||
| Built-in Smoke Filter | Optional | ||||
| Cleaning | Automatic Cleaning, Anti-Clogging Flash Function & Capping System | ||||
| Feed & take up | Automatic Media Feeding ( Standard ) & Take up System ( Standard ) | ||||
| Environment | Temperature: 20-28℃, Humidity: 40%-60% | ||||
| Rip Software | Maintop (standard)/ FlexiPrint (optional) | ||||
| Interface | USB 3.0 | ||||
| Power | AC 110/ 220V, 50/ 60Hz, 3400W | ||||
