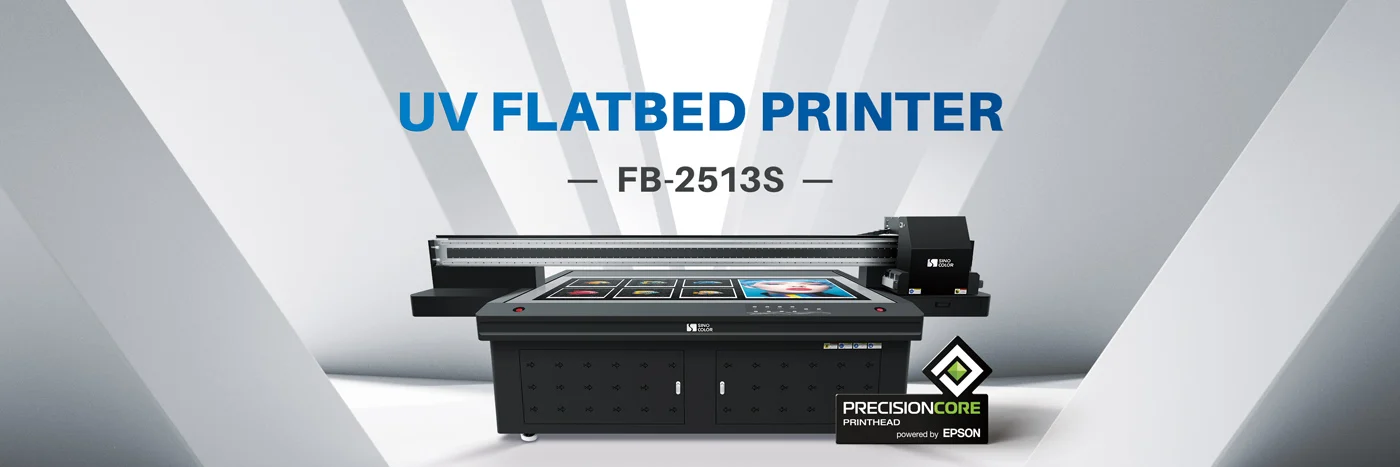

With the capability to print onto thick substrates, it offers the ability to produce a diverse range of prints for both indoor and outdoor use. FB-2513S UV flatbed printers are ideal for applications such as backlit displays and signage, signs and posters, interior décor, glass and metal decorative panels and more.

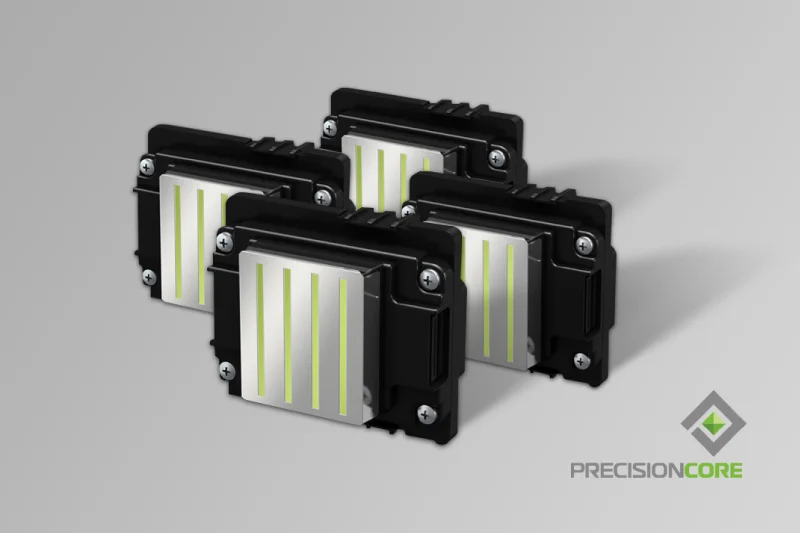

Equipped with latest Epson industrial printhead i3200-U. High productivity choice

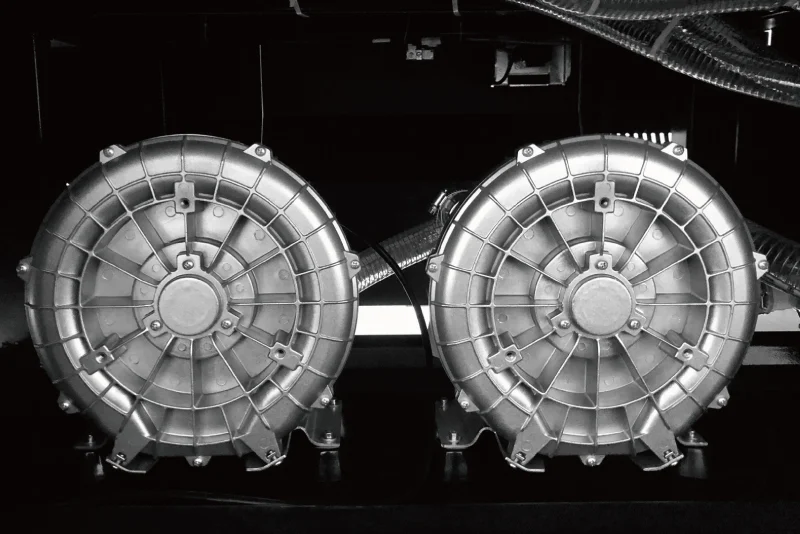

Double built-in high-power independent vacuum pump. Guarantee the powerful suction.

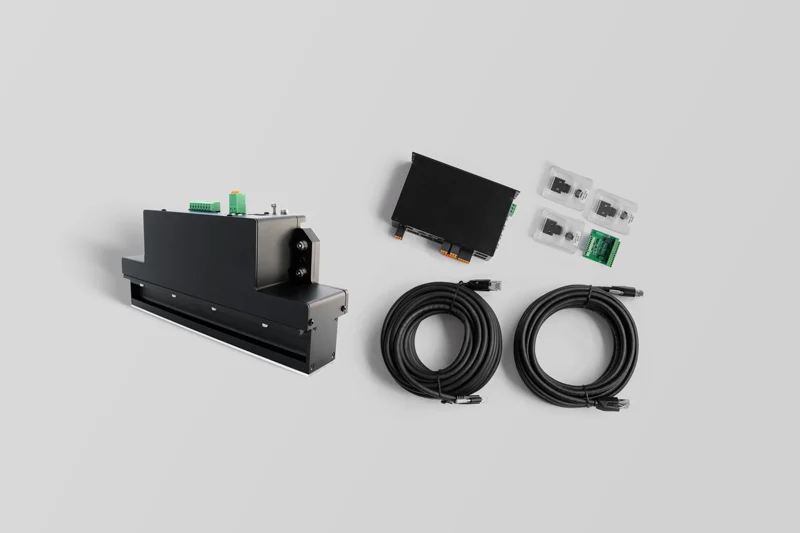

Detect not only the object position, but also the direction automatically.Greatly increase the positioning precision and work efficiency.

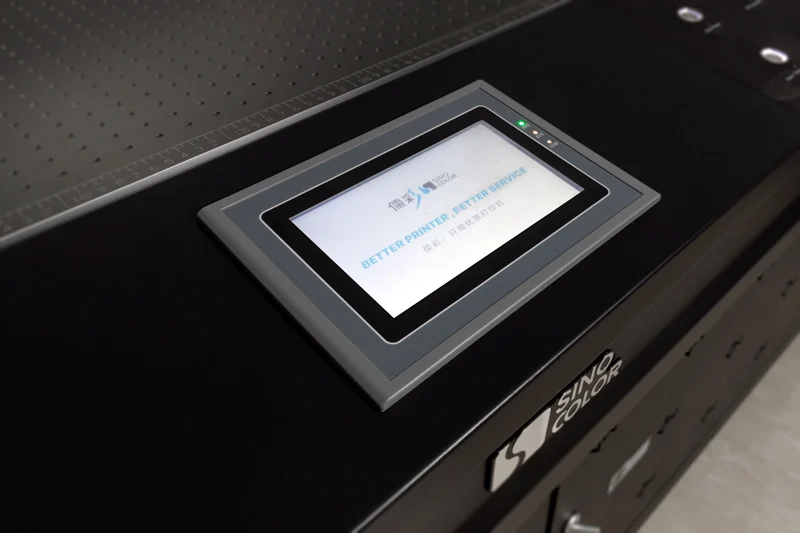

User-friendly projecting touch screen. Make the operation to be at your fingertips.

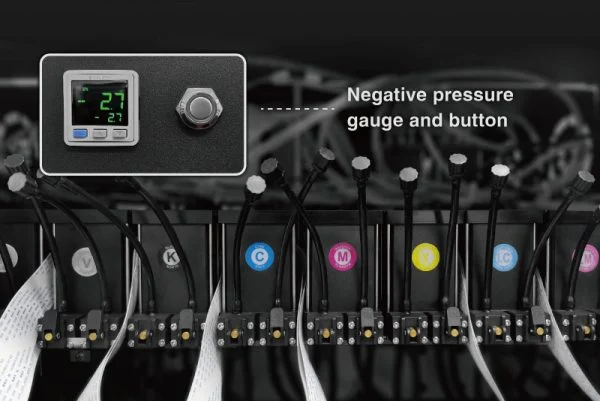

Equipped with two advanced separate negative pressure systems (One for color and varnish, One for white). Stabilize the airpressure inside the ink supply system, one button to fill the ink. Simply and effectively ensure the continuous ink flow, assurethe maintenance of multi-heads equipment to be easy as well.

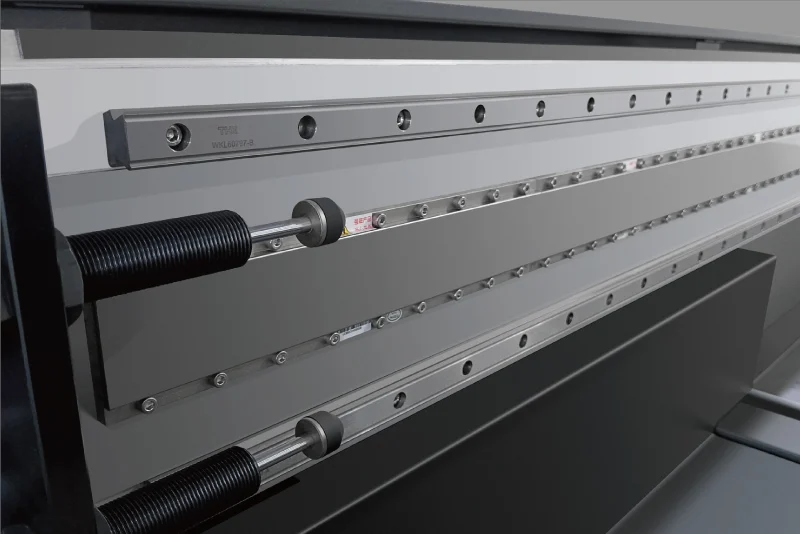

Consistent design of double guide rail (THK), guarantee the stable movement of carriage.
And one-time molding aluminum beam that ensure the high accuracy of each carriage movement.

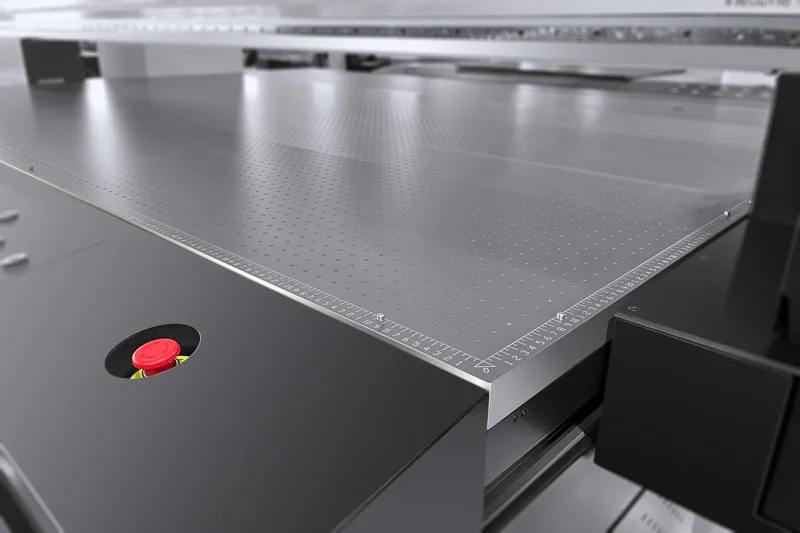

Built-in media alignment pins, guarantee the quick, simple and high precision media positioning.

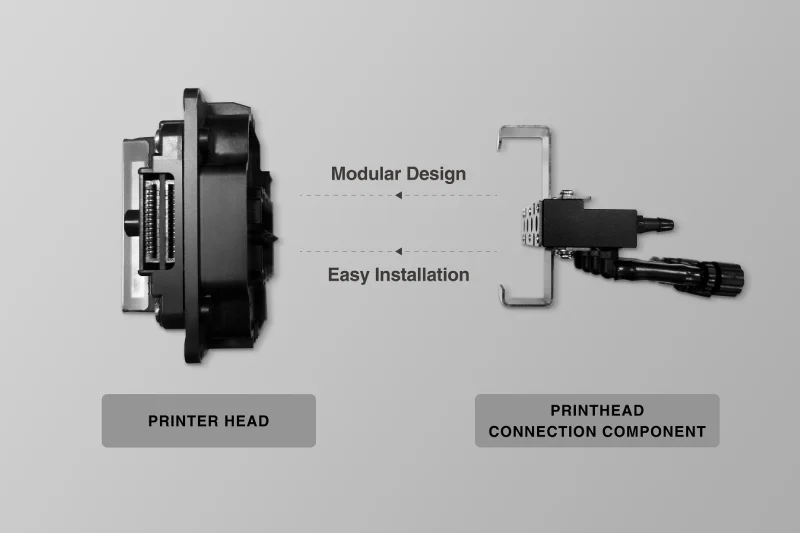

Modular component design for the connection of printhead and ink supply system, makes the printhead installation, cleaning and replacing to be quite convenient. (For Epson i3200-U)

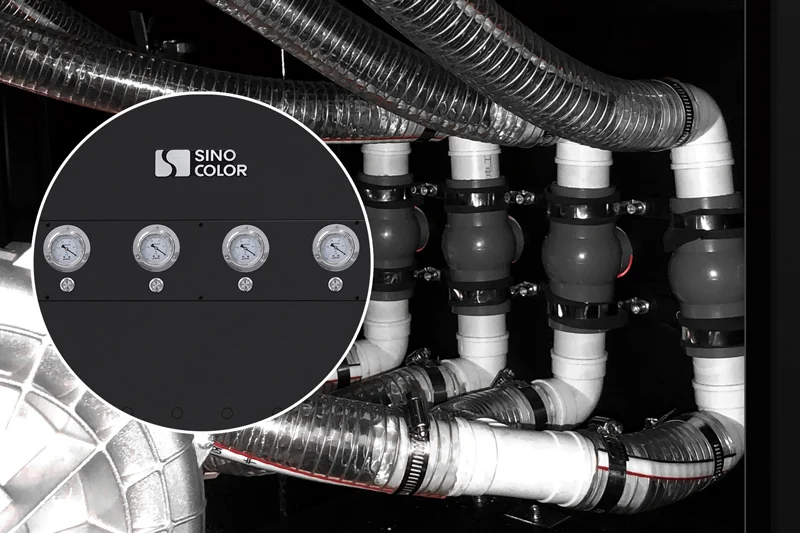

Divide the vacuum table to 4 zones. Concentrate energy, Save energy.
Anti-collision system is equipped to protect the printhead and carriage all the time

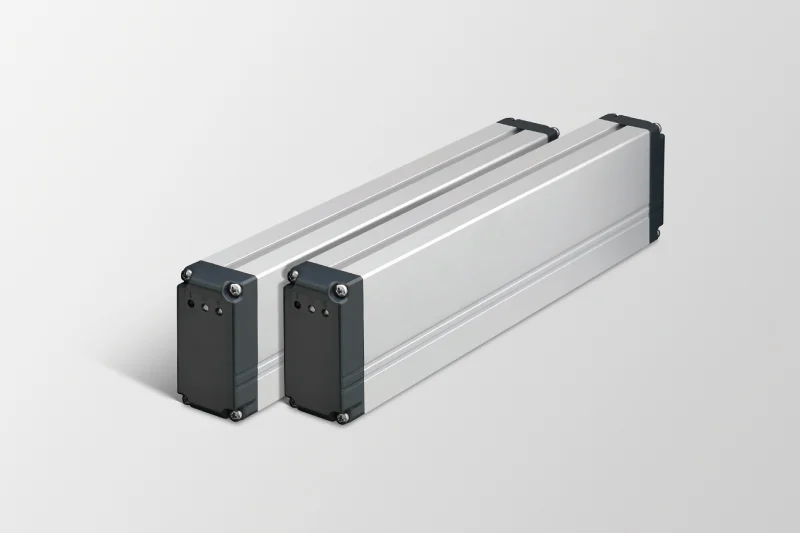

Quality anti-static device is optional. eliminate static efficiently and reliably from printer and the media. Gurantee the high precision output.

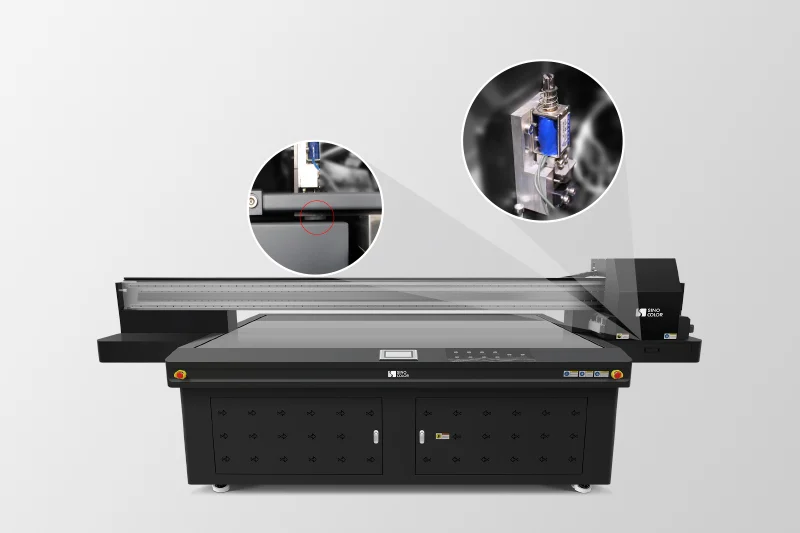

Automatic media height detecting system is equipped, provide great help for setting the proper print height.

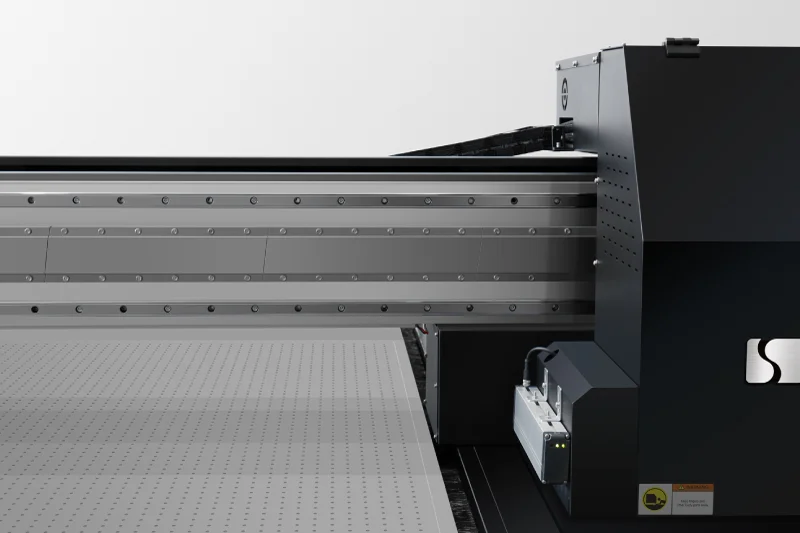

Advanced magnetic levitation transmission is available (optional). Easy to clean, durable. Built for fast, stable, and long-term running.

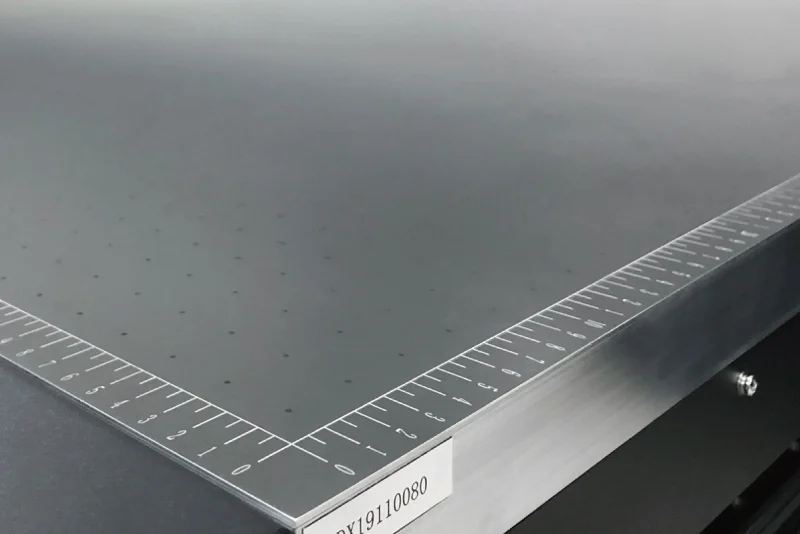

Oxidation treated high precision platform. High resolution, easy to clean.

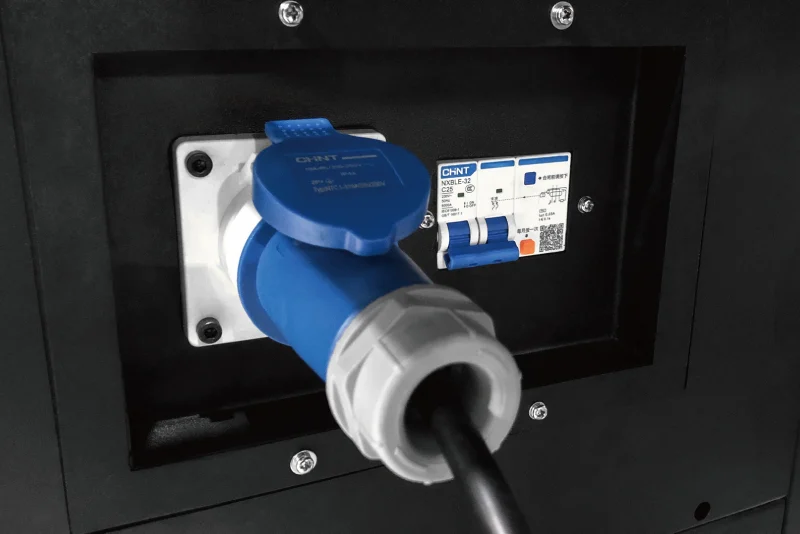

Branded circuit breaker to protect the safety of the whole electronic system.

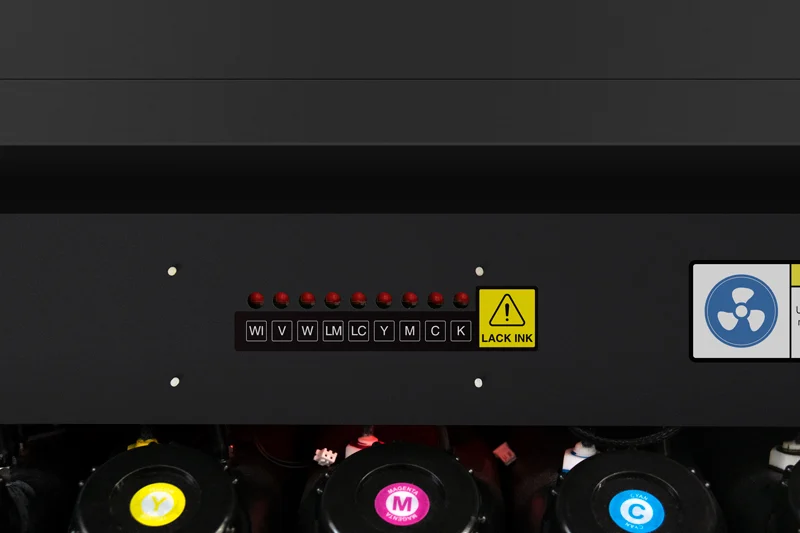

Lack ink alarm system is equipped. Give LED light signal reminding operator to fill the ink. No interruption during printing job any more.

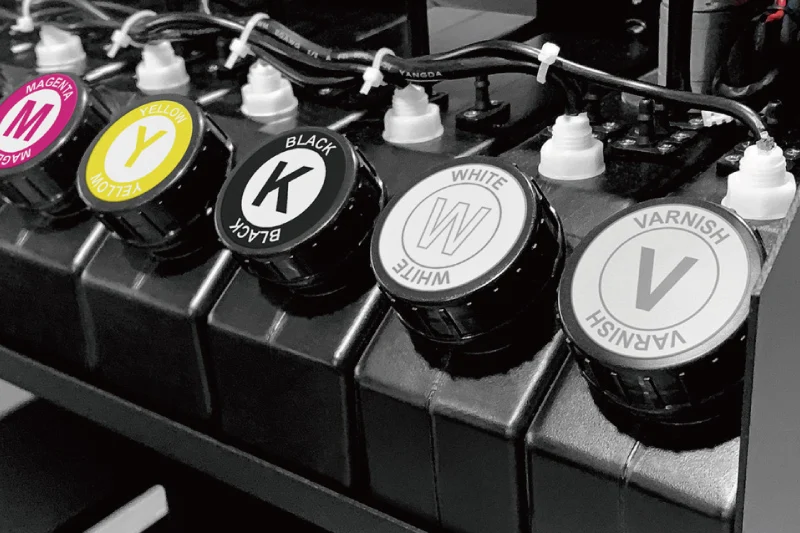

White ink stir system is equipped. Decrease the problems caused by white ink precipitation.

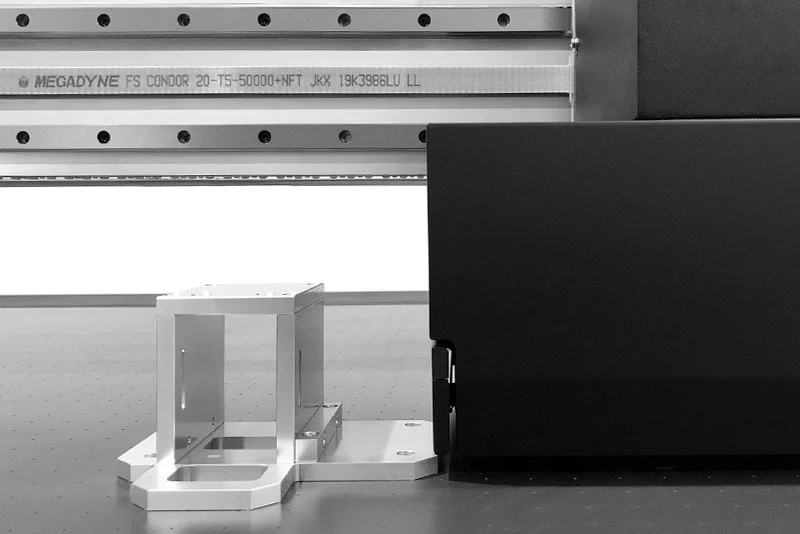

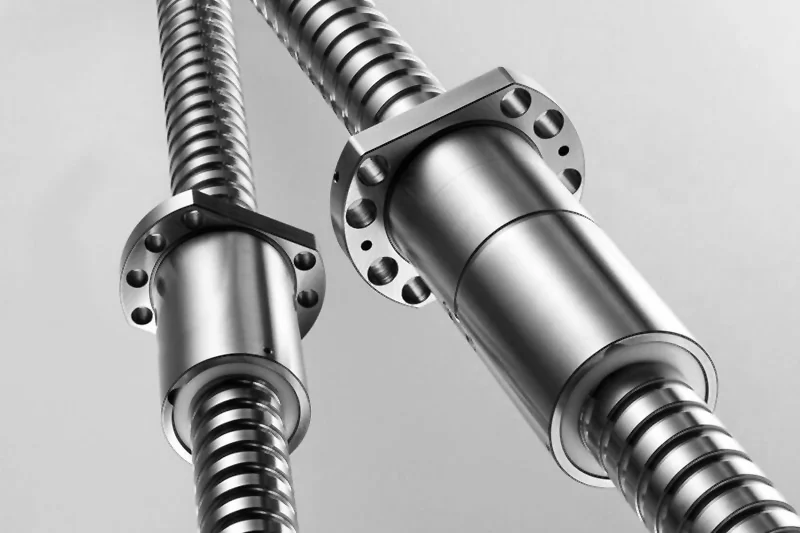

Screw rod type transmission for the Y axis. Guarantee the high precision of each printing.

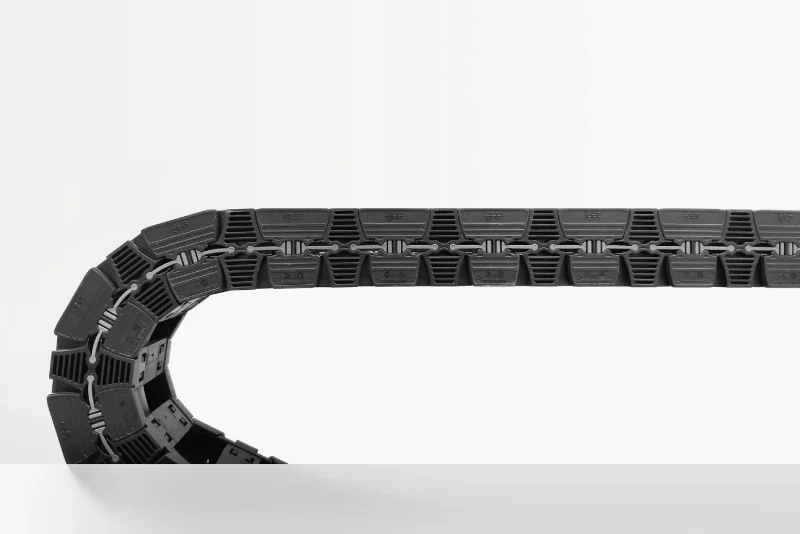

High grade two-layer Germany Igus drag chain. Effectively protect ink tube and cables.
With the capability to print onto thick substrates, it offers the ability to produce a diverse range of prints for both indoor and outdoor use. FB-2513S UV flatbed printers are ideal for applications such as backlit displays and signage, signs and posters, interior décor, glass and metal decorative panels and more.
| Model No. | FB-2513S (Pro) | FB-2513K | FB-2030S (Pro) | |
|---|---|---|---|---|
| Printhead | Epson i3200-U Printheads | Konica KM1024i-13pl Printheads | Epson i3200-U Printheads | |
| Number of Printheads | 2/ 3/ 4/ 6/ 8 pcs optional | 4/8/12/16 pcs Optional | 2/ 3/ 4/ 6/ 8 pcs optional | |
| Resolution | Max 2400 dpi | Max 1440 dpi | Max 2400 dpi | |
| Media | Thickness | 12 cm MAX | ||
| Size | 2500 x 1300 (mm) | 2000 x 3000 (mm) | ||
| Types | Glass, Acrylic, Ceramic, Metal, Paper, Wood, Leather, PVC , PP, PE, PTFE Etc. | |||
| Speed | Draft | 50 sqm/h ( CMYK, 4 heads ) | 62 sqm/h (CMYK, 8 Heads) | 53 sqm/h ( CMYK, 4 heads ) |
| Production | 32 sqm/h ( CMYK, 4 heads ) | 42 sqm/h (CMYK, 8 Heads) | 34 sqm/h ( CMYK, 4 heads ) | |
| High Quality | 24 sqm/h ( CMYK, 4 heads ) | 32 sqm/h (CMYK, 8 Heads) | 24 sqm/h ( CMYK, 4 heads ) | |
| Ink | Type | UV Ink | ||
| Color | CMYK/ CMYK + W/ CMYK + W + V/ CMYK + W + V + Pre-treating Liquid | CMYK/ CMYK + W | CMYK/ CMYK + W/ CMYK + W + V/ CMYK + W + V + Pre-treating Liquid | |
| Capacity | 500 ML | |||
| Dry System | UV_LED light system | |||
| Negative Pressure System | Standard for 4 or more heads model | |||
| PC Operation System | Windows 7/XP/10 | |||
| Operation environment | Temperature: 20-28℃, Humidity: 40%-60% | |||
| Rip Software | Maintop (Standard) /FlexiPRINT (Optional)/Onyx (Optional) | |||
| Image Format | TIFF, JPEG, EPS, PDF… | |||
| Power Supply | AC 110/ 220V, 50/ 60Hz, 4800W | |||
| Size & Weight | Machine | L4160×W2130×H1520 mm,870 KG | L3770×W3900×H1600 mm,1460 KG | |
| Packing | L4300×W2280×H1780 mm,1100 KG | L3900×W2280×H2000 mm,1970 KG | ||
