Need to improve your productivity of sublimation printing? This newest industrial grade sublimation printer WJ-2200 series will be a perfect choice. 8 Epson i3200 heads. Provide fast printing speed of production model to be up to 342 sqm/h. And max 8 colors to bring you true-to life color rendition. A model balanced the speed, quality and stability.

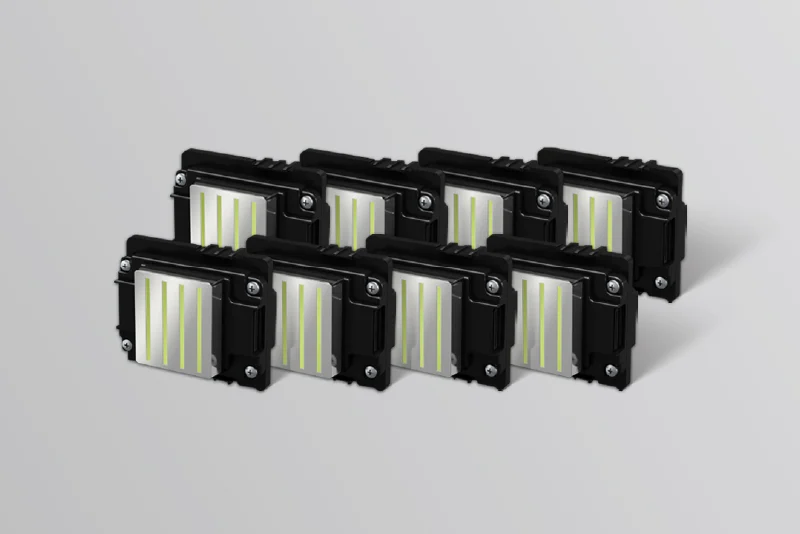

Equipped with 8 pcs Epson i3200-A heads, which are powered by Epson PrecisionCore technology.Born for fast speed and long-term running. Makes the machine achieve a fast speed of production mode to be 342 sqm/h. (392 sqm/h for 3.2m)

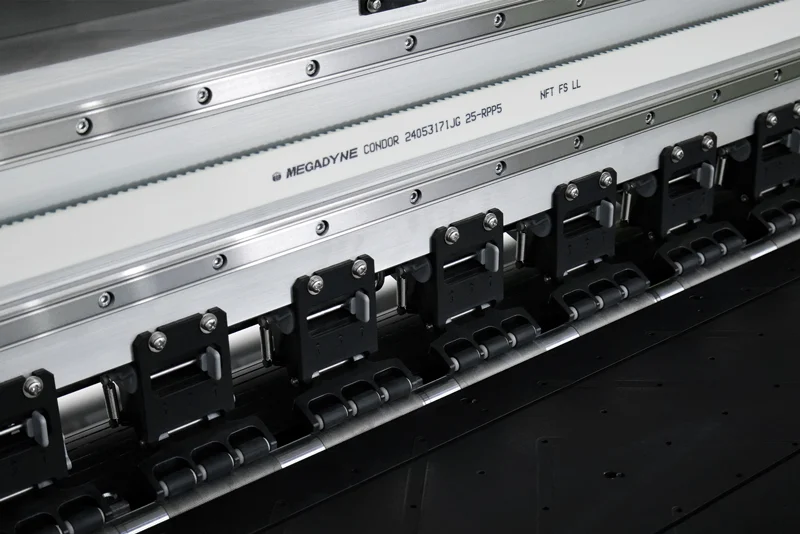

Branded accessories are used for high attrition areas. Greatly increased the lifetime and stability of the machine. For example, German lgus drag chain,20mm ultra wide Italian Megadyne belt.
Ensure the high resolution printing.

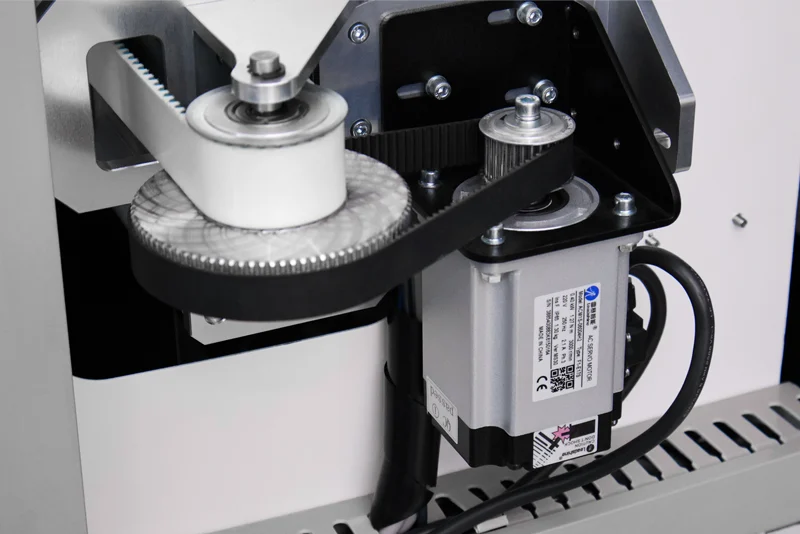

The high power AC servo motor for X direction.Perfectly meets the requirement of high speed printing.

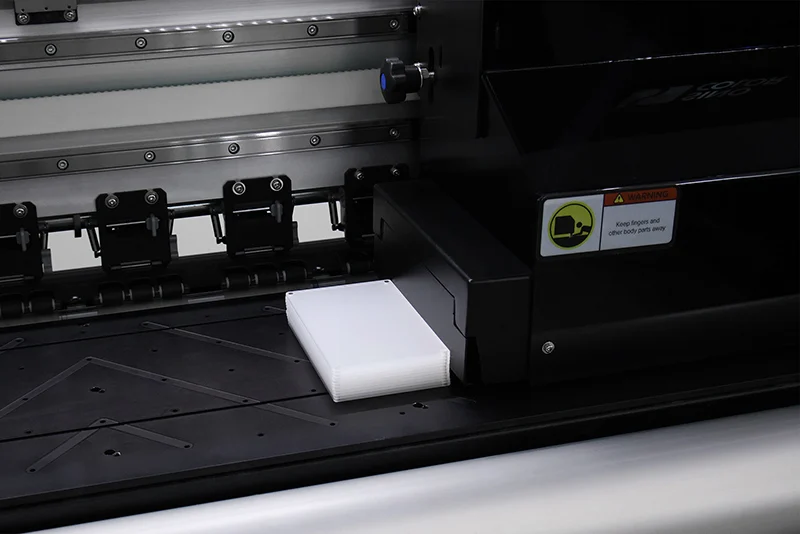

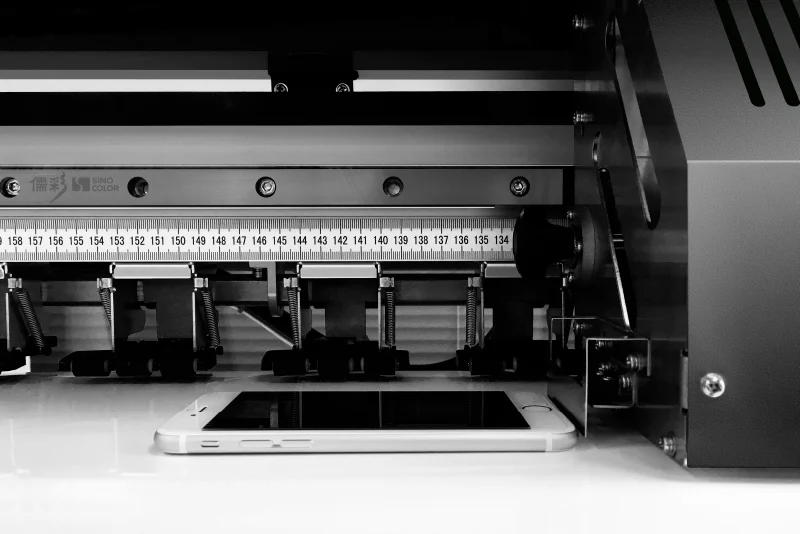

The printer will automatically stop when the printhead carriage hits any unexpected object during working, avoiding any damage to the printheads.
Anti-collision system is equipped to protect the printhead and carriage all the time.

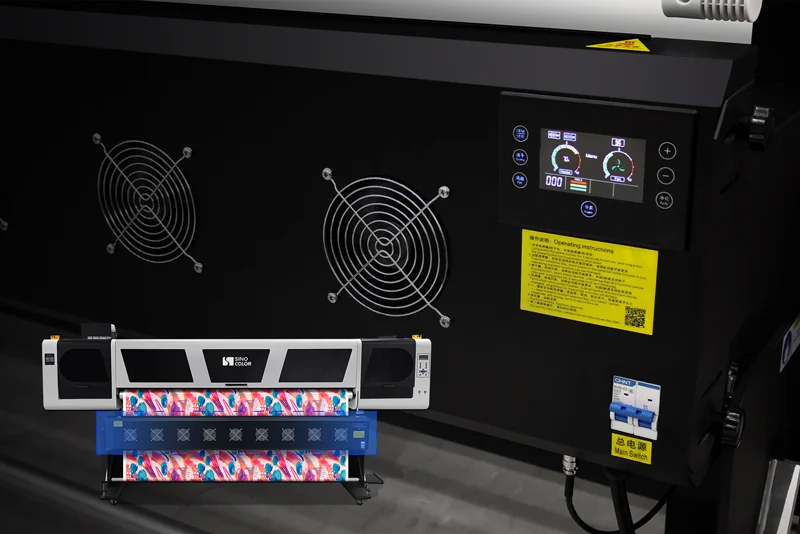

The smart drying system support to adjust the heating temperature accordingly. Energy saving.And 8 heads machine includes 2 sets to ensure the fast drying under fast printing speed.

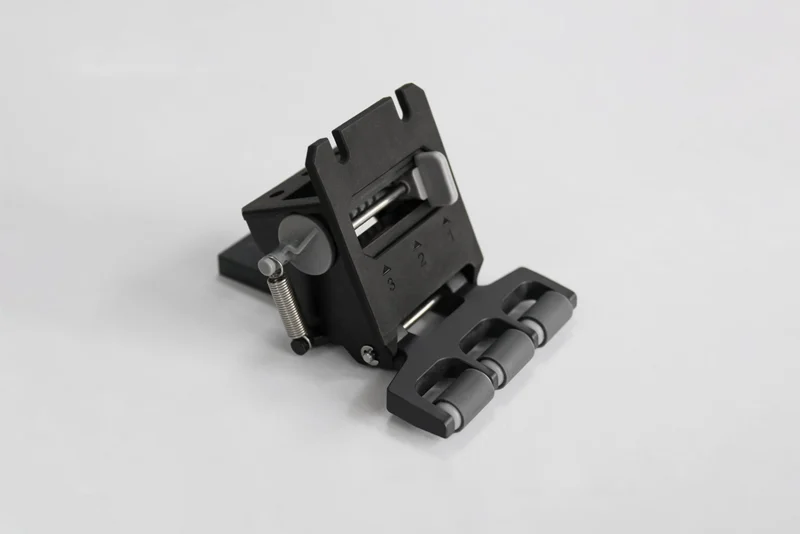

Guarantee the evenly force to full width of the ma-terial, ensure the high precision media stepping.

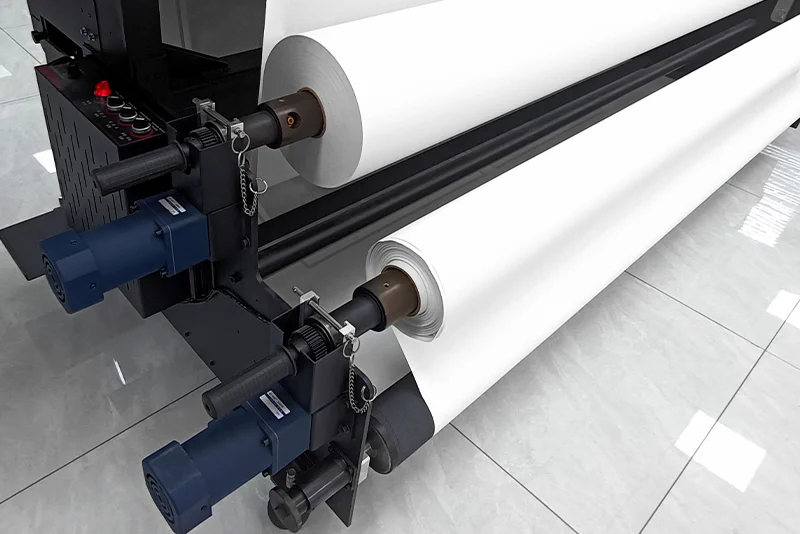

Heavy duty winder with tension control to fit up to 1,000 meter/roll material.

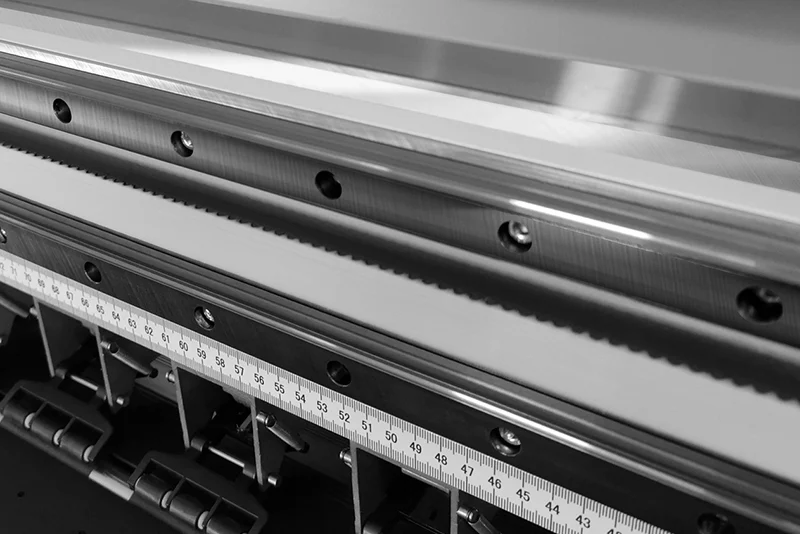

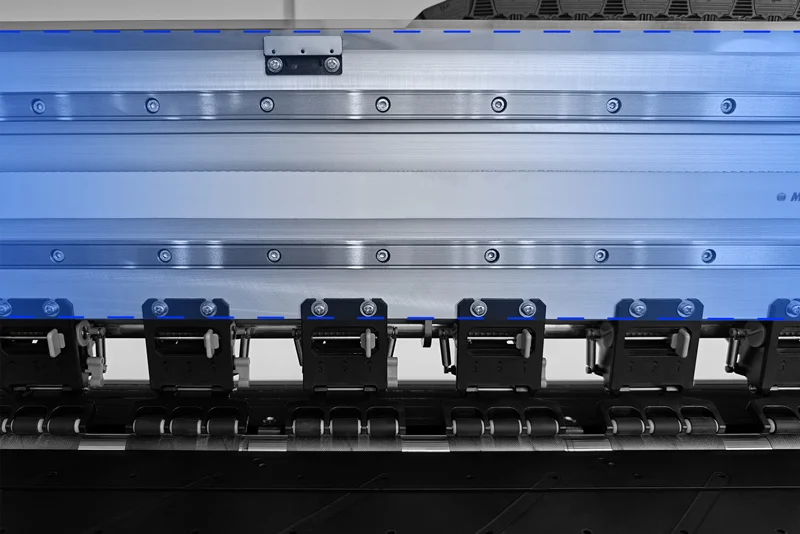

Dual guide rail configuration. Guarantee the stability of long-term carriage movement under super fast speed.

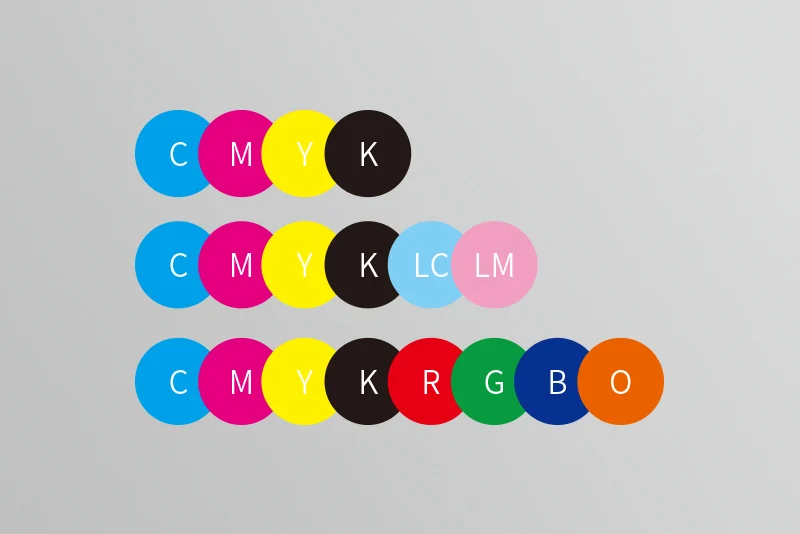

Professional software with up to 8 colors printing. Brings you true-to-life color rendition.
Need to improve your productivity of sublimation printing? This newest industrial grade sublimation printer WJ-2200 series will be a perfect choice. 8 Epson i3200 heads. Provide fast printing speed of production model to be up to 342 sqm/h. And max 8 colors to bring you true-to life color rendition. A model balanced the speed, quality and stability.
| Model No. | WJ-2200S | WJ-3200S | |
|---|---|---|---|
| Printhead | 4/8 Epson i3200 | 4/8 Epson i3200 | |
| Resolution | 2400 dpi max | 2400 dpi max | |
| Media | Size | 2.2 meter | 3.2 meter |
| Types | Heat transfer paper | ||
| Speed | Printing Mode | CMYK, 8 Heads | |
| Production | 342 ㎡ /h | 392 ㎡ /h | |
| Quality | 183 ㎡ /h | 210 ㎡ /h | |
| Ink | Color | CMYK/ CMYK,Lc,Lm/ CMYK,R,G,B,O | |
| Type | Sublimation Ink | ||
| Cleaning | Automatic Cleaning, Anti-Clogging Flash Function & Capping System | ||
| Heating System | Pre/ Middle/ Post heating system & IR heater | ||
| Drying System | Equipped | ||
| Feeding & Take up | Heavy Duty Winder with Tension Control to Fit Up to 1,000 meter/ roll Material | ||
| Rip Software | MainTop (Standard) / FlexiPRINT (Optional) | ||
| Interface | USB 3.0 | ||
| Power | AC 110/ 220V, 50/ 60Hz | AC 110/ 220V, 50/ 60Hz | |
| Size&Weight | Machine | L3790×W1250×H1620 mm / 700KG | L4790×W1250×H1620 mm / 1050KG |
| Packing | L3920×W1380×H1790 mm / 1000KG | L4920×W1380×H1790 mm / 1500KG | |
