KE-3024/ 3028 are the very ideal choice for high volume outdoor signage applications. The latest Konica printhead has a unbeatable speed than ever, while reproduces photoreal quality with astounding detail and color. KM-512i printhead enable consistent quality across a wide variety of media including vinyl, flex, banner fabric, synthetics, PET, paper, film, canvas etc. All this translates into stunning, vibrant large-format images. Enables clients to experience the full impact of next-generation large-format color printer performance.
Thanks to the latest Konica print technology, print speed of KM-1024i reaches a new level, maximum speed can be 420 square meters per hour with 8 heads. High print speed always matters a lot, it can suit your growing business from start up to high production requirement.

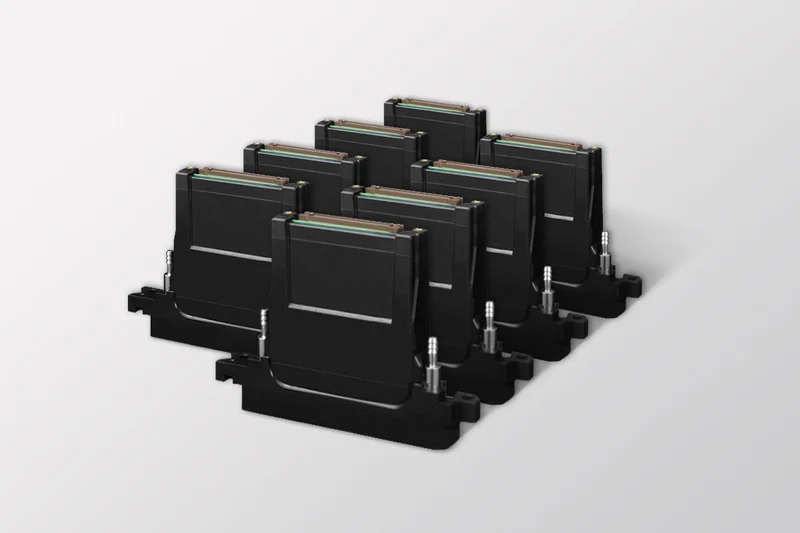

The Konica Minolta KM-1024i-30PL print head is a very robust print head, with much wider nozzles, and latest technology, KM-1024i has much better performance than previous best sellings KM512, SPT510…

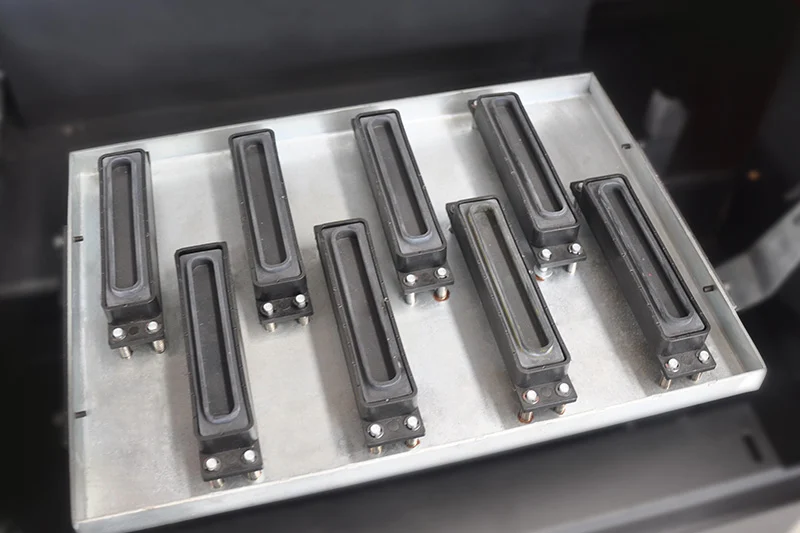

The additional capping system effectively prevent the printhead from clogging when is the printer is idle.

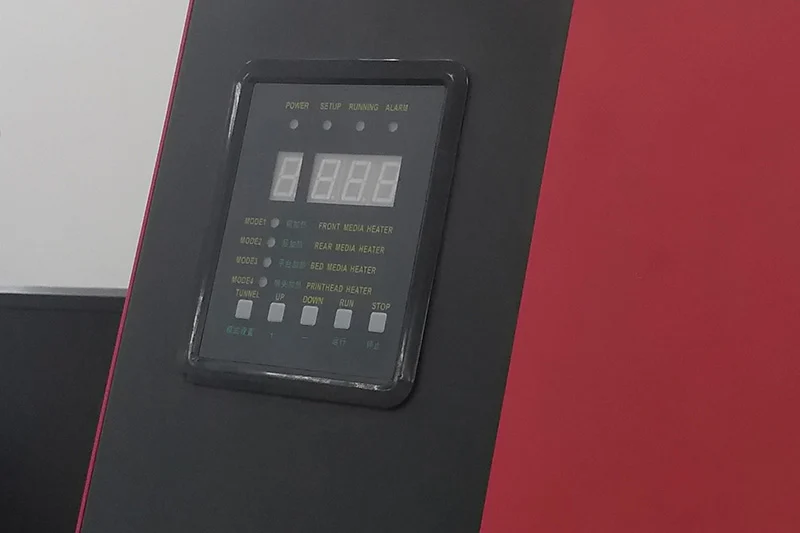

The tri-heaters are integrated with one heat controller. It simplified the user operation.
It allows user to purge each color separately, or flush each printhead with cleaning liquid. Cleaning printhead becomes very easy.

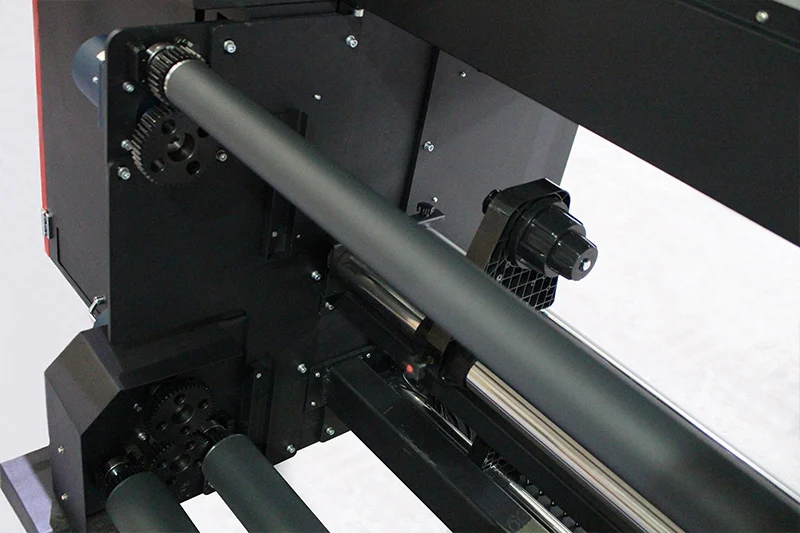

To suit the high print speed, we made the media handling super smooth and stable. Also, the media take up is strong enough to load heavy rolls around 120KG.
KE-3024/ 3028 are the very ideal choice for high volume outdoor signage applications. The latest Konica printhead has a unbeatable speed than ever, while reproduces photoreal quality with astounding detail and color. KM-512i printhead enable consistent quality across a wide variety of media including vinyl, flex, banner fabric, synthetics, PET, paper, film, canvas etc. All this translates into stunning, vibrant large-format images. Enables clients to experience the full impact of next-generation large-format color printer performance.
| Model No. | KE-3208 (8 heads) | KE-3204 (4 heads) | |
|---|---|---|---|
| Printhead | 8 x KM-512i-30PL | 4 x KM-512i-30PL | |
| Resolution(dpi) | 720dpi max | ||
| Ink Color | C M Y K | ||
| Media | Width | 3.2 meter | |
| Types | Flex Banner, Vinyl, Mesh, Banner Cloth, Reflective Film… | ||
| Speed | 2 Pass | 240 sqm/h | 120 sqm/h |
| 3 Pass | 160 sqm/h | 80 sqm/h | |
| 4 Pass | 120 sqm/h | 50 sqm/h | |
| Ink Type | Solvent Ink | ||
| Ink Capacity | 5 Liter | ||
| Cleaning | Automatic Cleaning, Anti-Clogging Flash Function & Capping System | ||
| Feed & Take Up | Automatic Media Feeding (Standard) & Take Up System (Optional) | ||
| Environment | Temperature: 20-28°C, Humidity: 40-60% | ||
| Rip Software | Maintop (Standard) / FlexiPrint (Optional) | ||
| Interface | USB3.0 | ||
| Power | Machine 50/60Hz, 110/220V, 2000W | ||
| Size & Weight | Machine | L4840 W1120 H1490 (mm) / 650 KG | |
| Packing | L4800 W1040 H1600 (mm) / 800 KG | ||
