Our breakthrough UV technology addresses durability issues related to abrasion and solvents and also provides more effective, opaque white ink performance. This UV printing process is great for a very wide variety of commercial and industrial applications . The Epson Printhead series UV printer delivers flawless graphics and text at resolutions up to 2400dpi. Especially for the Epson i3200-U, Is officially recommend by Epson Group for UV Printing. Made for fast and durable printing.
Perfectly combined the hight speed and high quality printing effect.
It is one of the world’s top UV-LED, long lifespan, low heat, and instant on-off.
Wide pinch roller keeps smooth movement of the media. And it has proper pressure to ensure accurate media step while not make any footprint of the pinch roller.

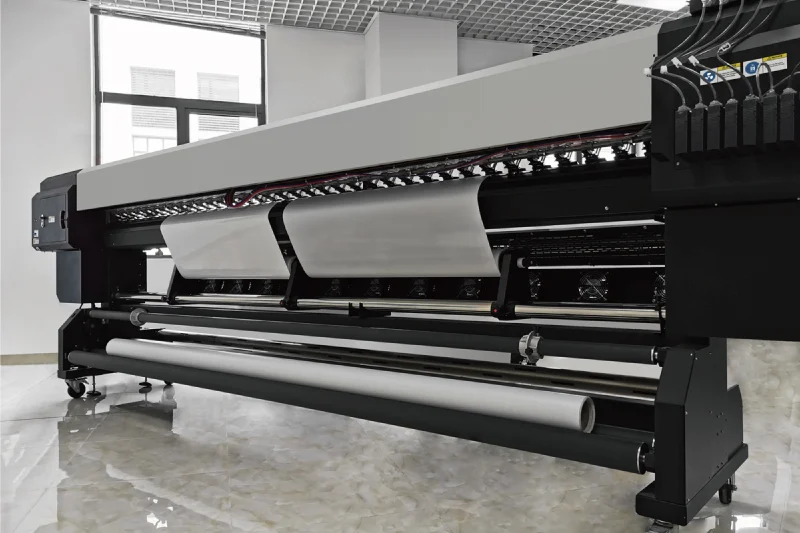

Two Sets Media Feeding System are standard equipped. Enable to install both 3.2m heavy banner and 2 rolls small size paper.

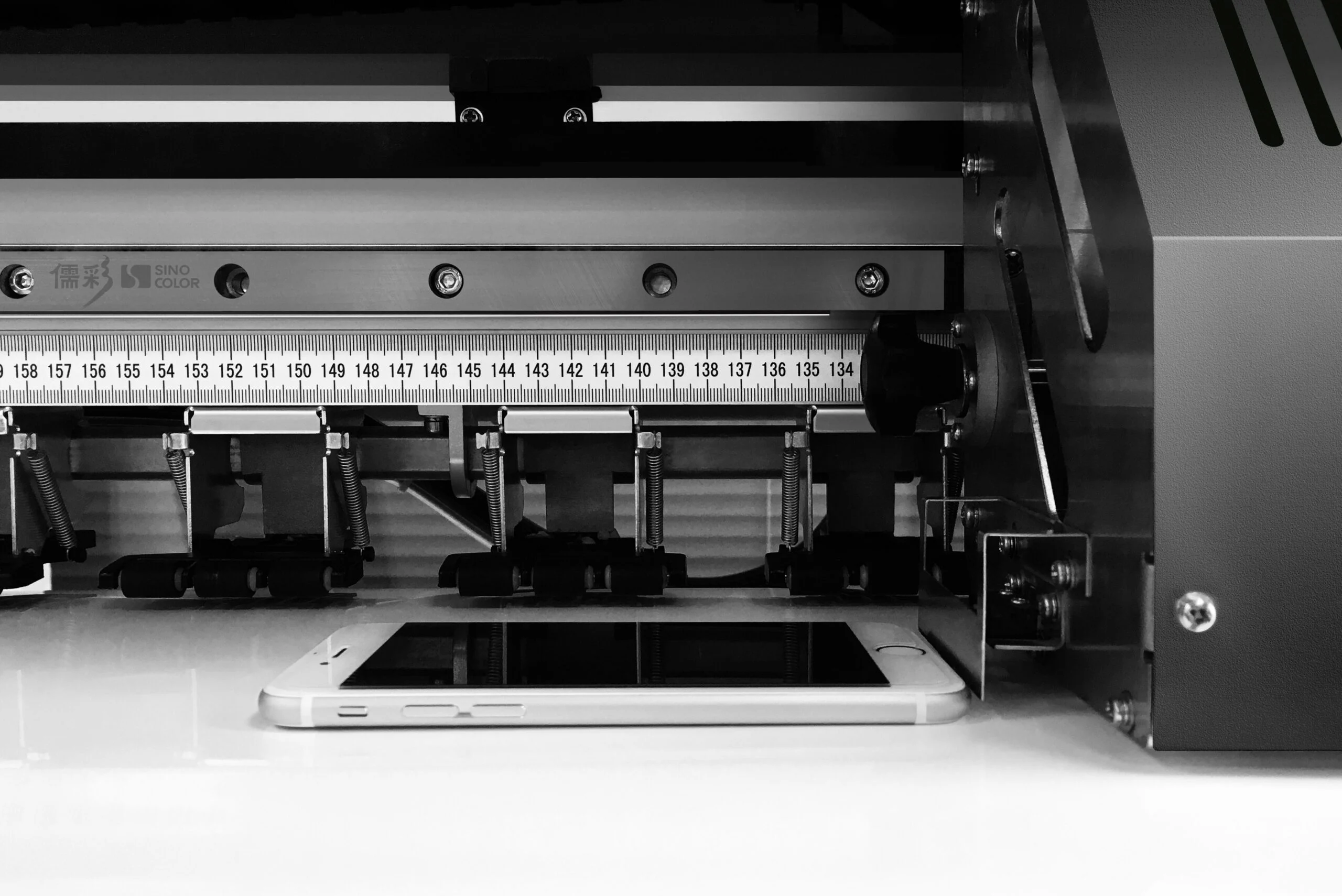

Anti-collision system is equipped to protect the printhead and carriage all the time
Adopts the latest program Intelligent Error Auto-Detection boards, it can guide user to find solution very quickly.
Convenient for checking backlit material printing quality.
High quality. Durable. Guarantee smooth movement of carriage.
IGUS drag chain itself is a guarantee of quality, takes the printer stability to a new level.
Increase machine accuracy and extend machine durability
It gives material a continuous and balanced pulling strength to assure a perfect material collecting, it is specially good for thin and soft type material like fabric, ceiling film etc.
Since the double heads printer has wider carriage, double slider is necessary to ensure stable movement of the carriage.
Permitting the printer to provide smooth gradations, exceptional solid colors and optimum image quality in all print modes.

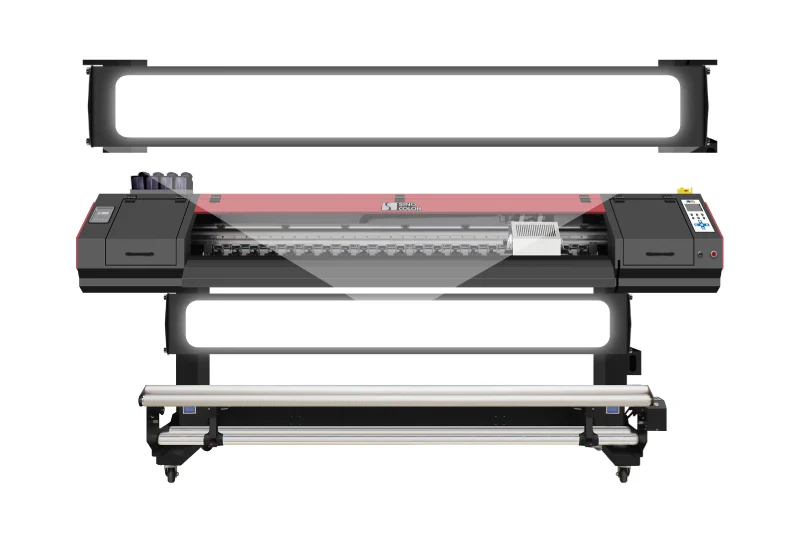

with the LED lamp strip, uses could check out the print result more easily.
Our breakthrough UV technology addresses durability issues related to abrasion and solvents and also provides more effective, opaque white ink performance. This UV printing process is great for a very wide variety of commercial and industrial applications . The Epson Printhead series UV printer delivers flawless graphics and text at resolutions up to 2400dpi. Especially for the Epson i3200-U, Is officially recommend by Epson Group for UV Printing. Made for fast and durable printing.
| Model NO. | UV-1280S | UV-1280D | |
|---|---|---|---|
| Printhead | 2/ 3 × Epson i3200-U | 2/ 3 × Epson i1600-U | |
| Resolution(dpi) | 2400 dpi MAX | ||
| Media | Width | 3.2m (128 inch) | |
| Types | Canvas, Leather, PET Film, Reflective Film, Soft Ceiling Film and a lot more flexible material… | ||
| Ink | Type | UV Ink | |
| Color | CMYK / CMYK+W / CMYK+W+CMYK / CMYK+Neon M&Y+W | ||
| Curing | High Quality Water Cooling UV-LED Lamp | ||
| Speed | Printing Mode | CMYK | |
| Draft | 23 ㎡/h | 21 ㎡/h | |
| Production | 18 ㎡/h | 16 ㎡/h | |
| Quality | 12 ㎡/h | 10 ㎡/h | |
| Cleaning | Automatic Cleaning, Anti-Clogging Flash Function & Capping System | ||
| Feed & Take Up | Automatic Media Feeding (Standard) & Take Up System (Optional) | ||
| Rip Software | Maintop(Standard)/FlexiPrint(Optional) | ||
| Interface | USB 3.0 | ||
| Power | AC 110/ 220V, 50/ 60Hz, 1900W | ||
| Size | Machine | L4830×W910×H1620 mm | |
| Packing | L4610×W1000×H740 mm | ||
| Weight | Machine | 580 KG | |
| Packing | 740 KG | ||
