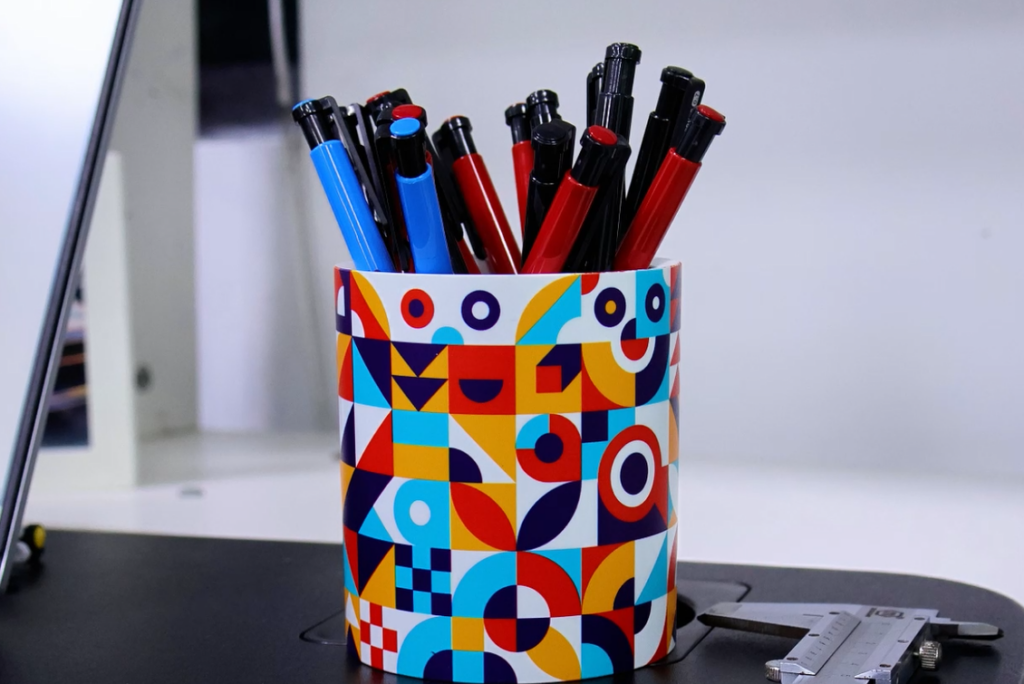

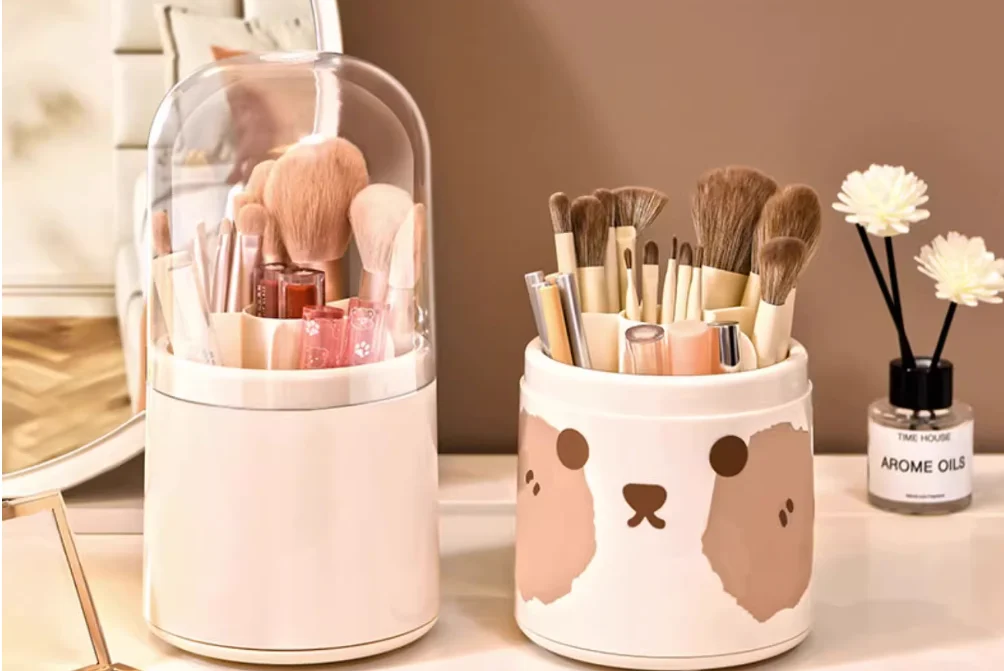

With our technological innovation, this UV rotary printer is built to be one machine with high cost performance. And we will not need complicated screen printing any more. Can DIY any straight walled and tapered cylinders including thermal cup, stainless tumblers, ceramic basin,brush pot,etc by a more flexible way in volume printing. 1-3 minutes only for one printing (Exact time depends on the color needed, and printing size)
Offers full-color 360° Seamless graphics with unparalleled print quality.

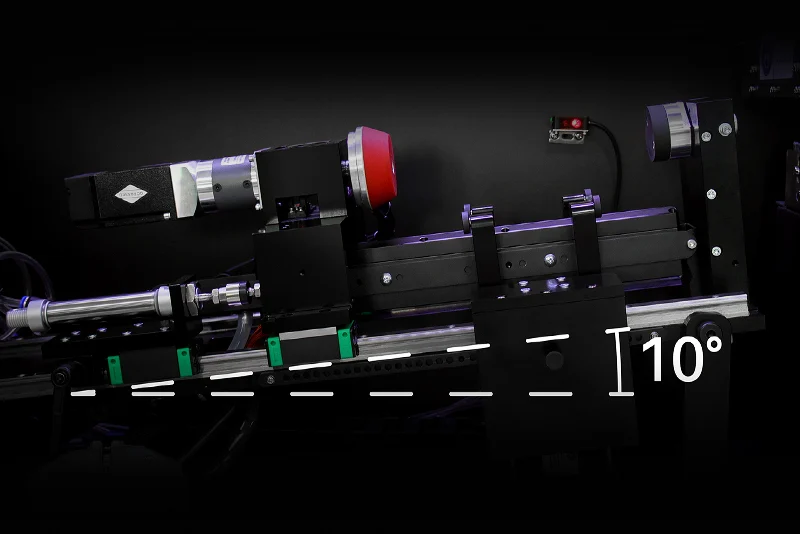

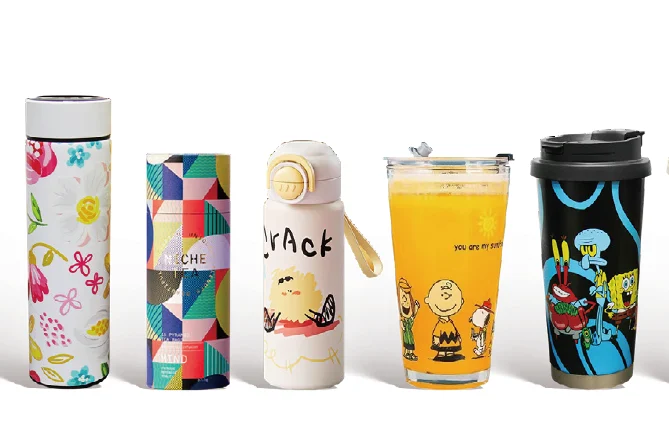

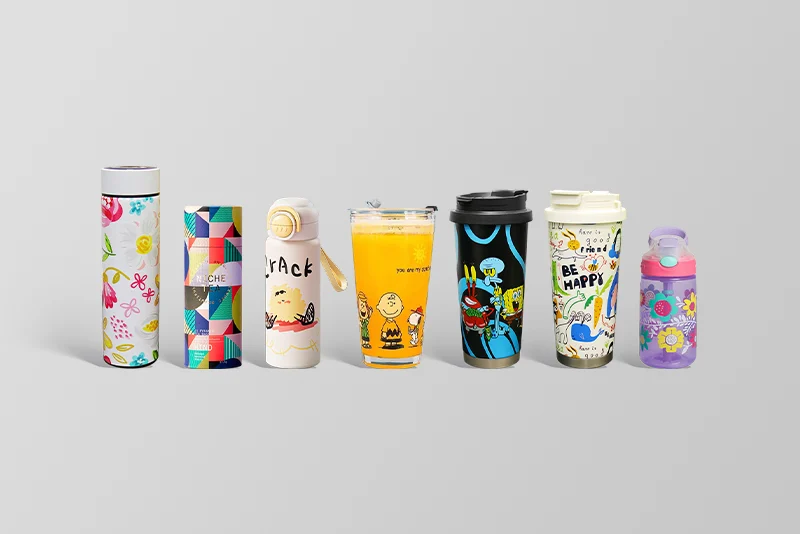

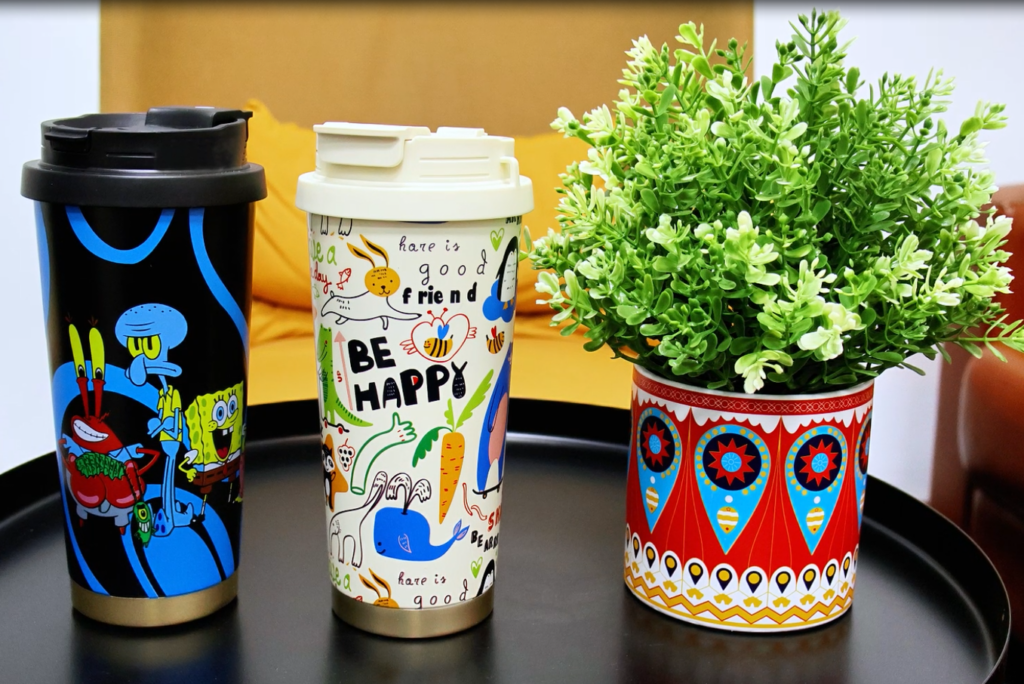

Enable the machine to print both straight walled and tapered cylinders including plastic bottles, stainless tumblers, candle holders and more. Meet the demands of wide variety of customers.

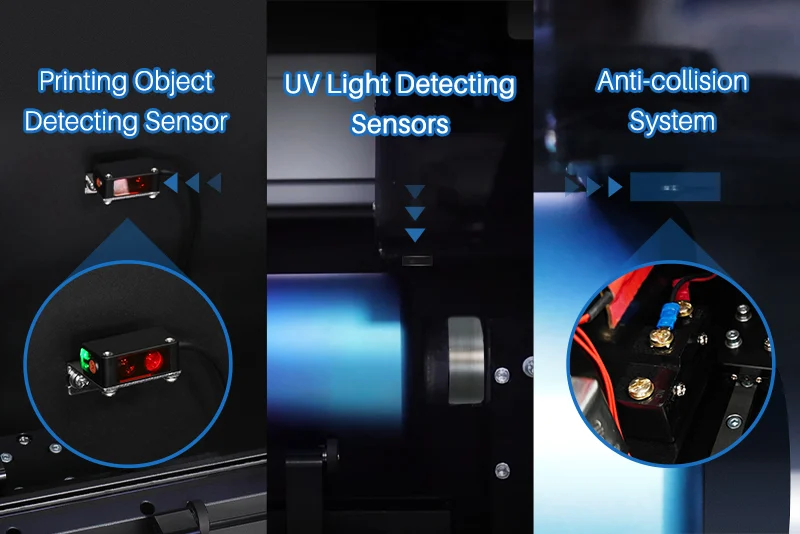

Printing object detecting sensor &
anti-collision system & UV light detecting sensors are equipped, to stop the machine when there is any mis-operation. Protect the printheads all the time.

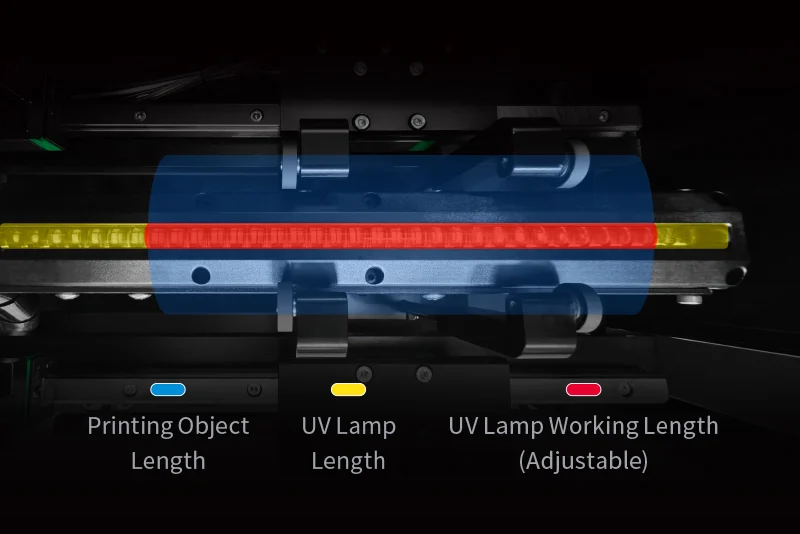

Segmented software-controlled UV curing unit for optimal curing.
Various Tooling Fixture Support Printing height to be 8-30cm. And caliber to be 5-15cm.

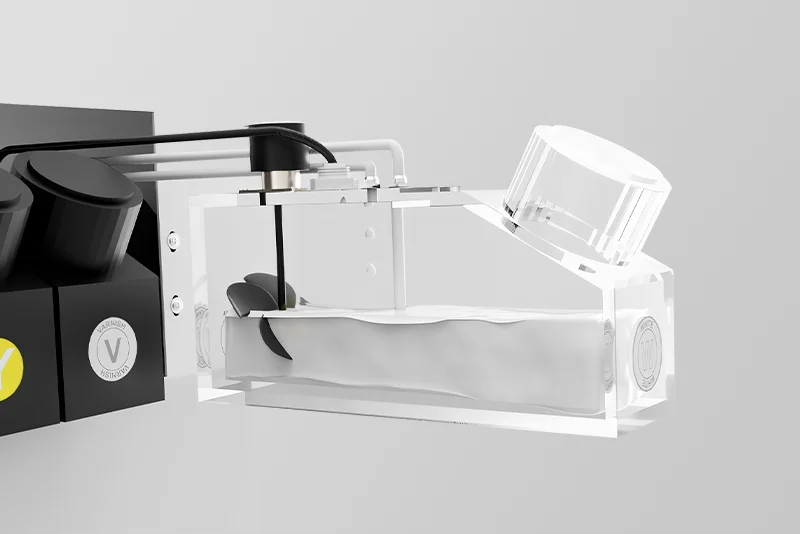

Mature time-set stirring system for white ink, effectively decreases the problems caused by white ink precipitation.

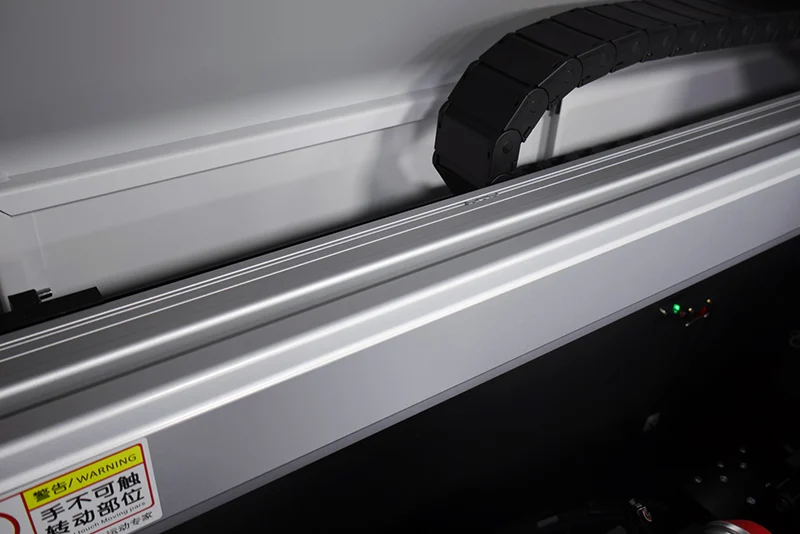

Branded accessories are used for high attrition area.Greatly increased the lifetime and stability of the machine. For example, German lgus drag chain, high precision screw drive, ultra high precision aircraft-grade aluminum beam.
Support the high-drop UV printing (optional), enable the printing of bottle even with curved surface.

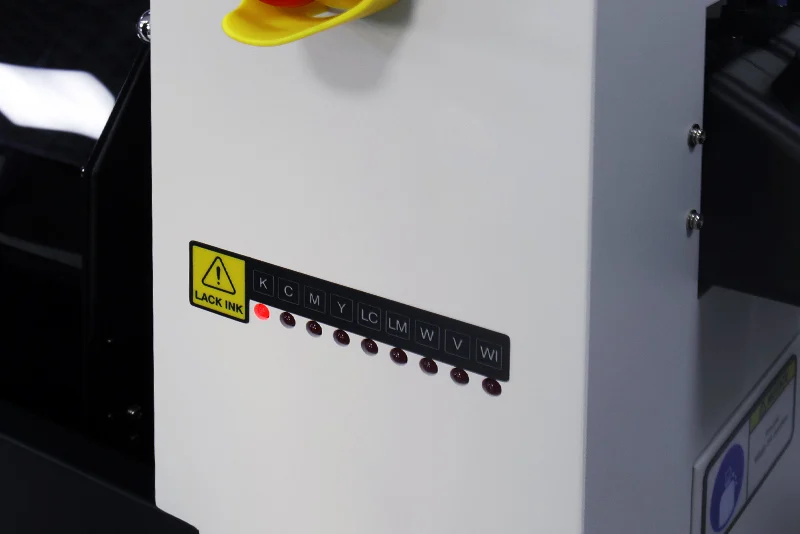

Gives LED light signal. Reminding operator to fill the
ink. No interruption during printing job any more.

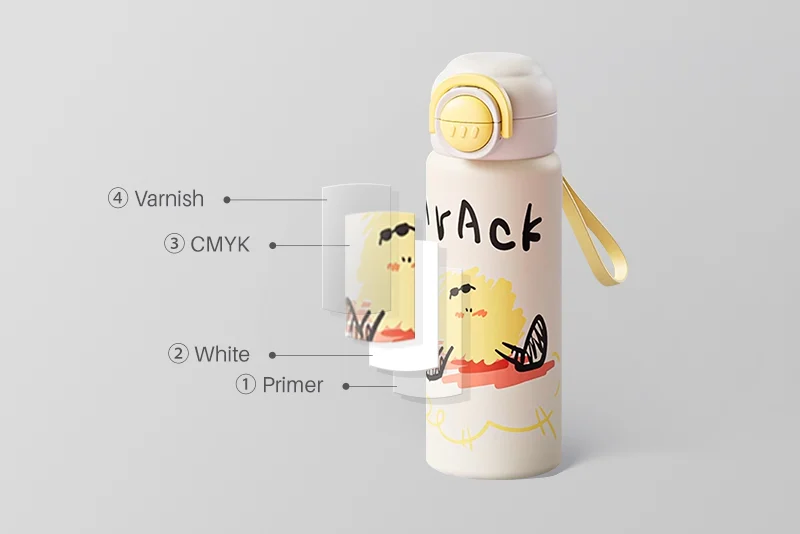

Except regular CMYK+W+V, support to print the primer for metal/glass bottle on demand. Time saving, labor saving,environment friendly, and no pre-treating trace on blank area then ensure the high quality printing output.
With our technological innovation, this UV rotary printer is built to be one machine with high cost performance. And we will not need complicated screen printing any more. Can DIY any straight walled and tapered cylinders including thermal cup, stainless tumblers, ceramic basin,brush pot,etc by a more flexible way in volume printing. 1-3 minutes only for one printing (Exact time depends on the color needed, and printing size)
| Model No. | URP-3015X | URP-3015D | URP-3015G | |
|---|---|---|---|---|
| Printhead | Epson Heads | Ricoh Heads | ||
| Resolution | 2400dpi | 1200dpi | ||
| Max Speed | 1-3min/ printing | 60-90s/ printing | 60-90s/ printing | |
| Object Lenagth | 8-30 cm | |||
| Object Diameter | 5-15 cm | |||
| Print Method | Micro Piezo Print Technology, Intelligence Drops Transformation Technology | |||
| Printhead Height | 1-3 mm | 1-10 mm | 1-15 mm | |
| Ink Color | CMYK/ CMYK + W / CMYK+W+V | |||
| Ink Supply System | Bulk ink supply + White ink stirring | |||
| Curing Method | High Quality UV-LED Lamp | |||
| Interface | USB 3.0 | |||
| Rip Software | Maintop (Standard)/ FlexiPRINT (Optional) | |||
| Working Environment | Temperature 18-30 Celsius, Humidity 30-70 RH, Clean room, Low dust, Less sun light | |||
| Power | AC 110/ 220V, 50/ 60Hz, 1100W | |||
| Size & Weight | Machine | L1380×W535×H780 mm/ 140KG | ||
| Packing | L1440×W595×H880 mm/ 180KG | |||
