Meet the new SJ-740 large-format digital printer. With dual staggered print heads and a rigid new industrial design, productivity and quality are built in. So are big-time savings. The SJ-740 runs with new SinoColor ink that costs up to 35% less than the competition. The result? High-volume, low-maintenance printing and bold, exciting colors with higher profit margins.

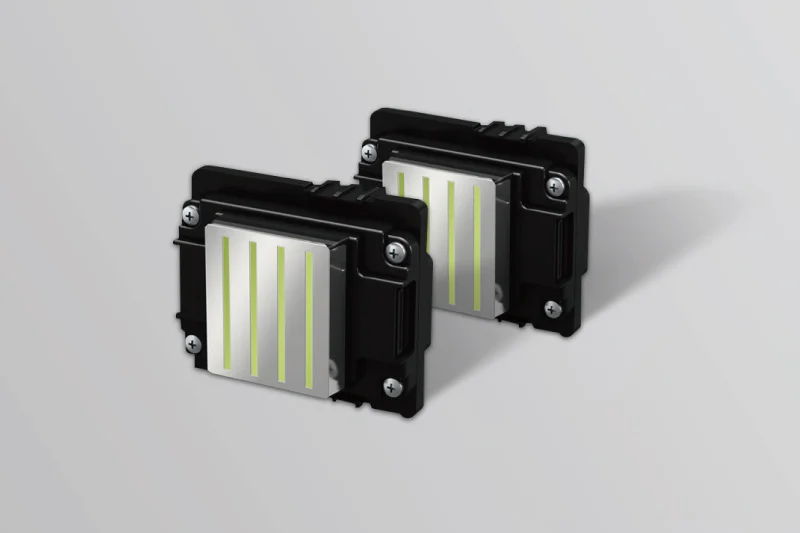

Can be equipped with 1 or 2 Epson i3200 head, powered by Epson PrecisionCore technology. Born for fast speed and long-term running.

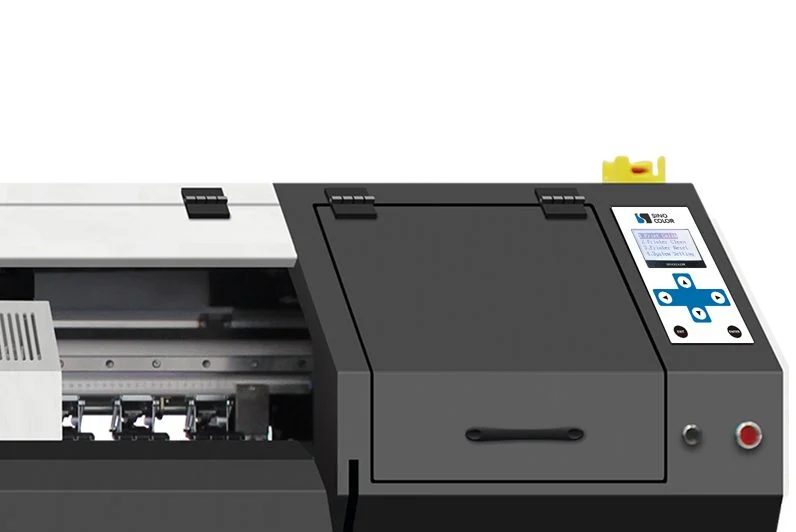

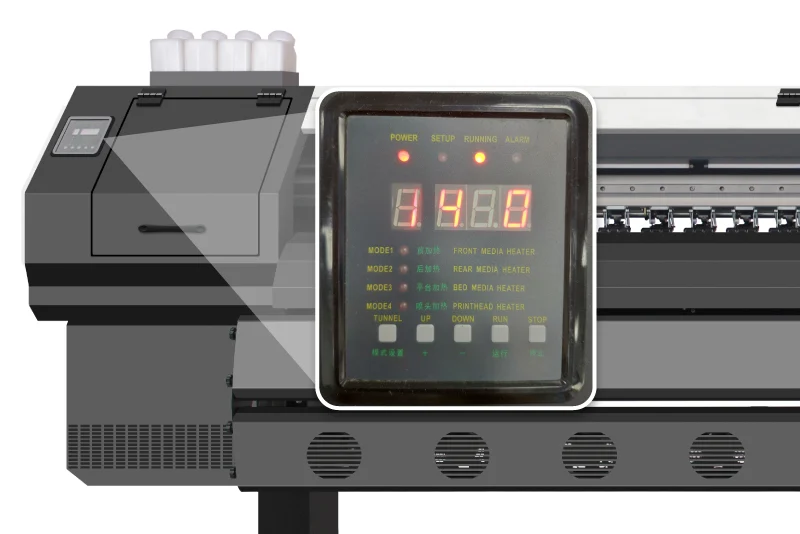

Why it matters : Control the front, middle and rear heater in one place. Integrated heater controller have less fault than separate ones.
Adopts the latest program Intelligent Error Auto-Detection boards, it can guide user to find solution very quickly.

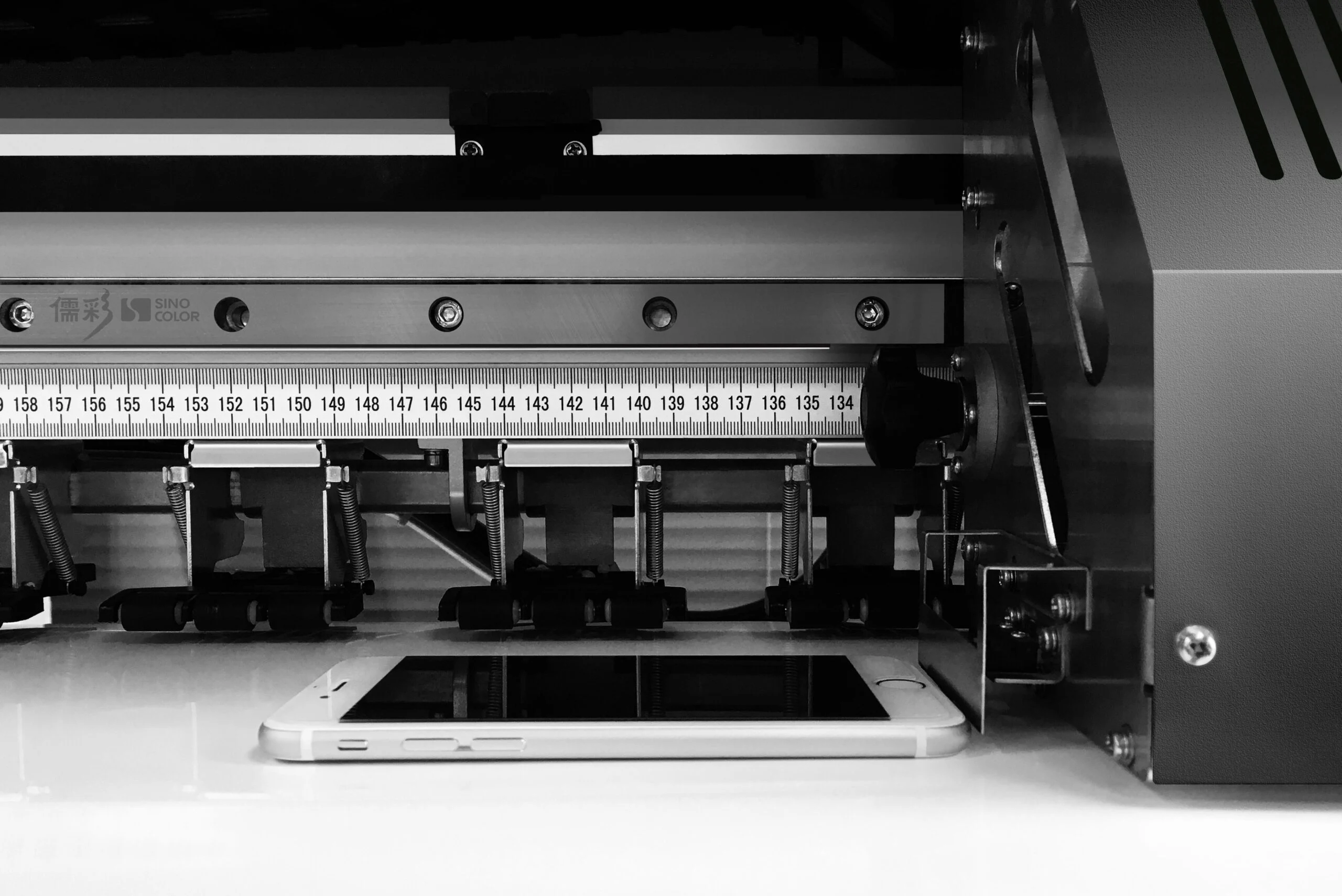

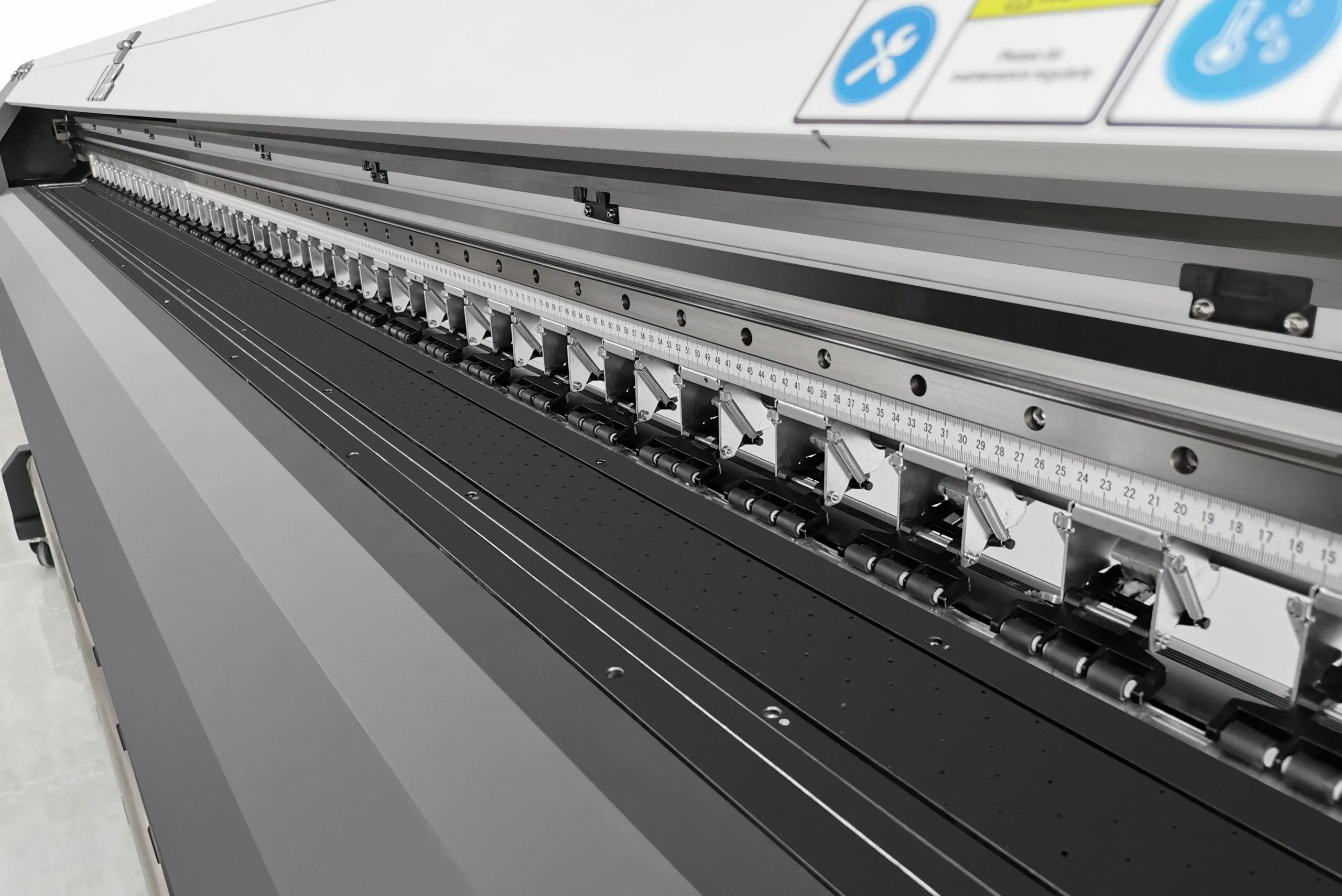

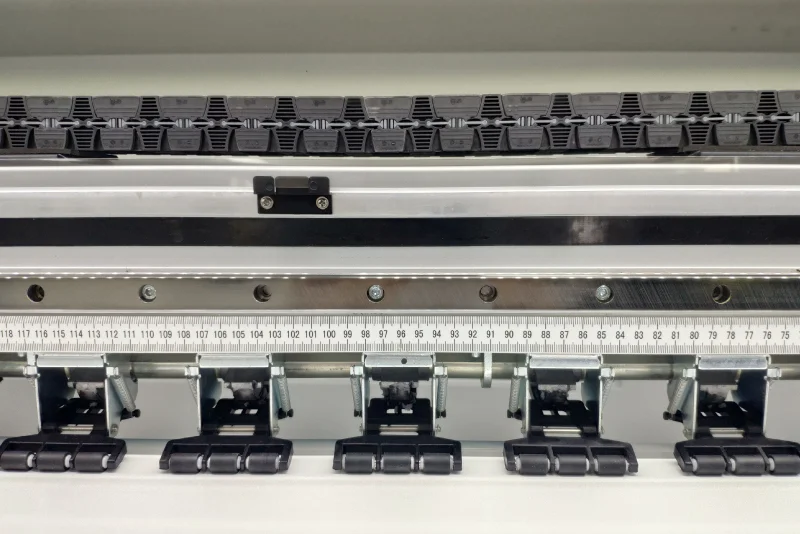

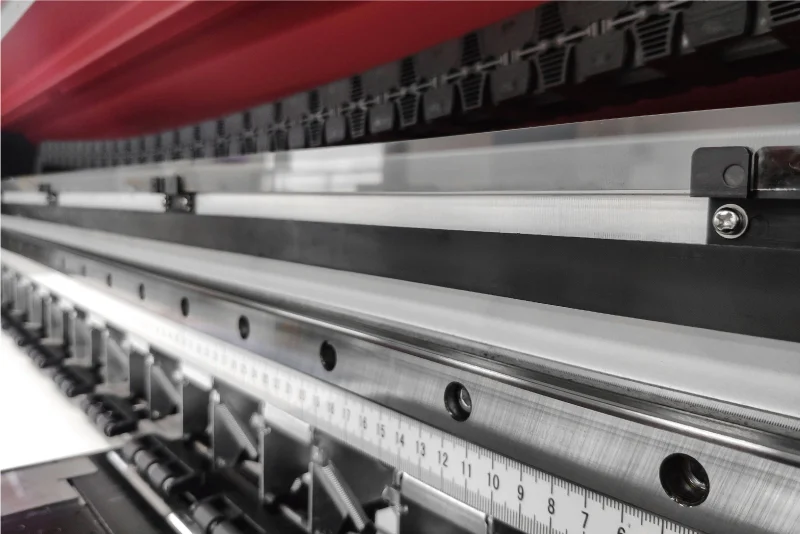

Why it matters : Wide pinch roller keeps smooth movement of the media. And it has proper pressure to ensure accurate media step while not make any footprint of the pinch roller.
Anti-collision system is equipped to protect the printhead and carriage all the time
Megadyne Belt. High quality. Durable
Front and middle and rear heating system,and front drying fan are standard equipped to help dry the printed material fast.

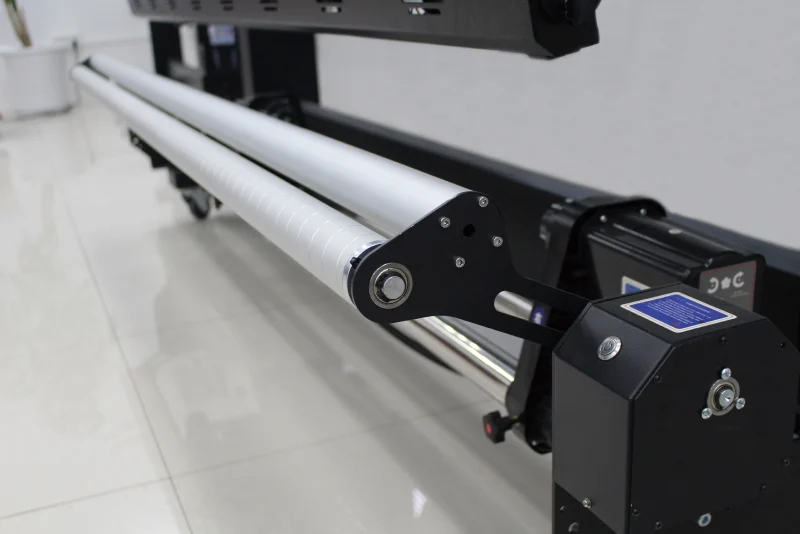

It offers adjustable roll widths, making it suitable for various sized media rolls and applications

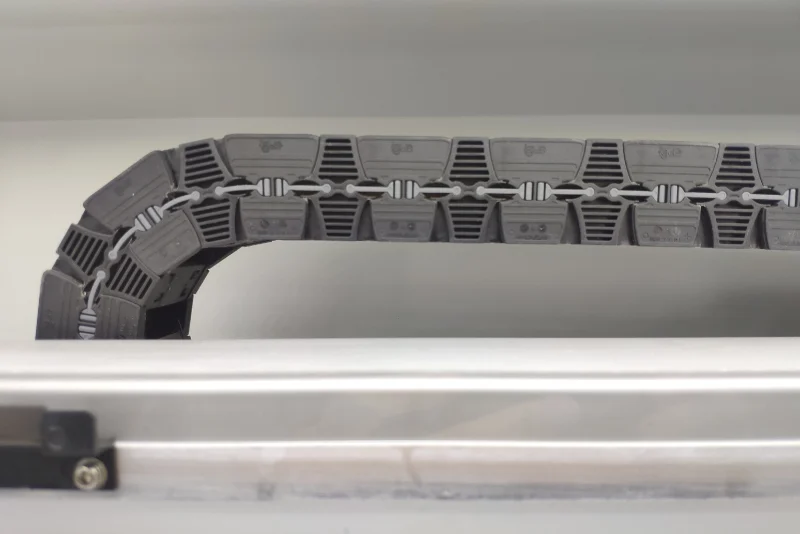

Why it matters : IGUS drag chain itself is a guarantee of quality, takes the printer stability to a new level.
Increase machine accuracy and extend machine durability
Build for long life use and high precision carriage movement.
Why it matters : Since the double heads printer has wider carriage, double slider is necessary to ensure stable movement of the carriage.
Permitting the printer to provide smooth gradations, exceptional solid colors and optimum image quality in all print modes

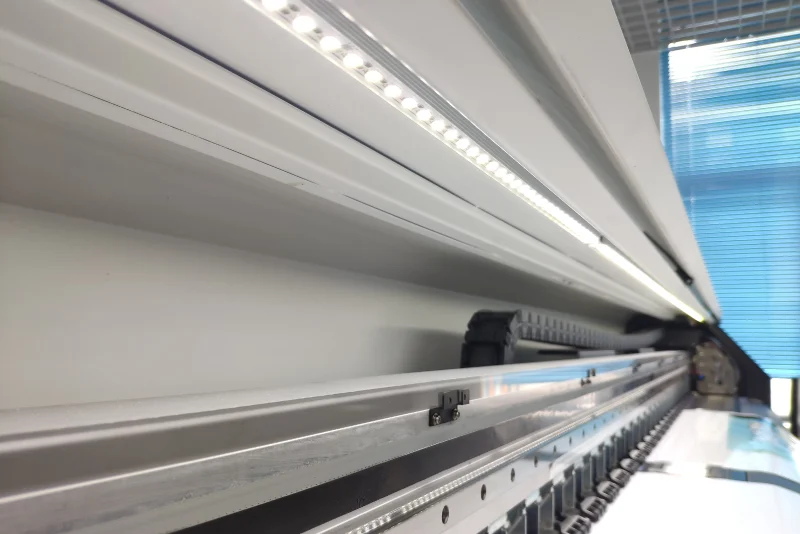

Uses could check out the print result more easily

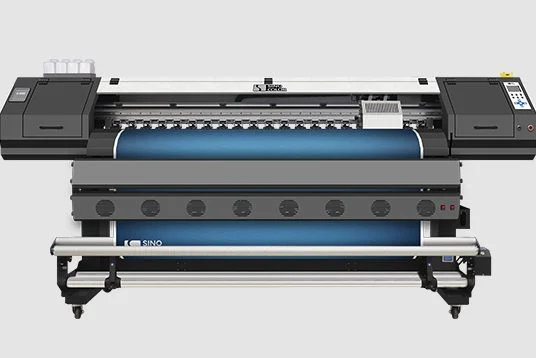

Meet the new SJ-740 large-format digital printer. With dual staggered print heads and a rigid new industrial design, productivity and quality are built in. So are big-time savings. The SJ-740 runs with new SinoColor ink that costs up to 35% less than the competition. The result? High-volume, low-maintenance printing and bold, exciting colors with higher profit margins.
| Model NO. | SJ-740S | SJ-740i | SJ-740X | |
|---|---|---|---|---|
| Printhead | 2×Epson i3200-E | 1×Epson i3200-E | 1 x Epson i3200-U1HD | |
| Resolution(dpi) | 2400dpi max | 2400dpi max | 2400dpi max | |
| Ink Color | CMYK | CMYK | CMYK Lc Lm Lk LLk | |
| Media | Width | 1.8 meter | ||
| Types | Flex Banner, Vinyl, One Way Vision, Banner Cloth, Window Film, Mesh Etc. | |||
| Speed | Draft | 42 ㎡/h | 25 ㎡/h | 7.2 ㎡/h |
| Standard | 32 ㎡/h | 19 ㎡/h | 4.5 ㎡/h | |
| Quality | 24 ㎡/h | 14 ㎡/h | 2.5 ㎡/h | |
| Ink Type | Eco Solvent Ink | |||

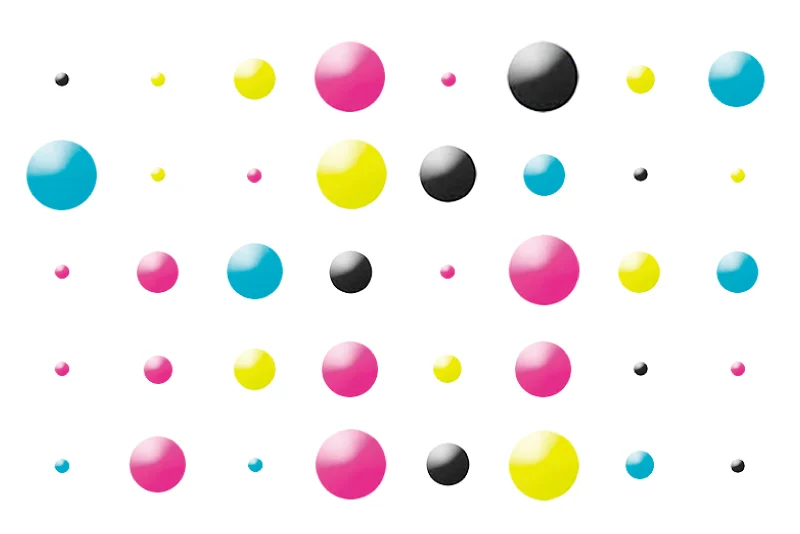

| Ink Droplet | 1.5-21pl Variable | |||
| Cleaning | Automatic Cleaning, Anti-Clogging Flash Function & Capping System | |||
| Feed & Take Up | Automatic Media Feeding (Standard) & Take Up System (Optional) | |||
| Environment | Temperature: 20-28°C, Humidity: 40-60% | |||
| Rip Software | Maintop (Standard) / FlexiPrint (Optional) | |||
| Interface | USB 3.0 | |||
| Power | AC 110/ 220V, 50/ 60Hz, 1200W | |||
| Size & Weight | Machine | L3130×W710×H1380 mm / 280 KG | ||
| Packing | L3210×W1000×H740 mm / 400 KG | |||
