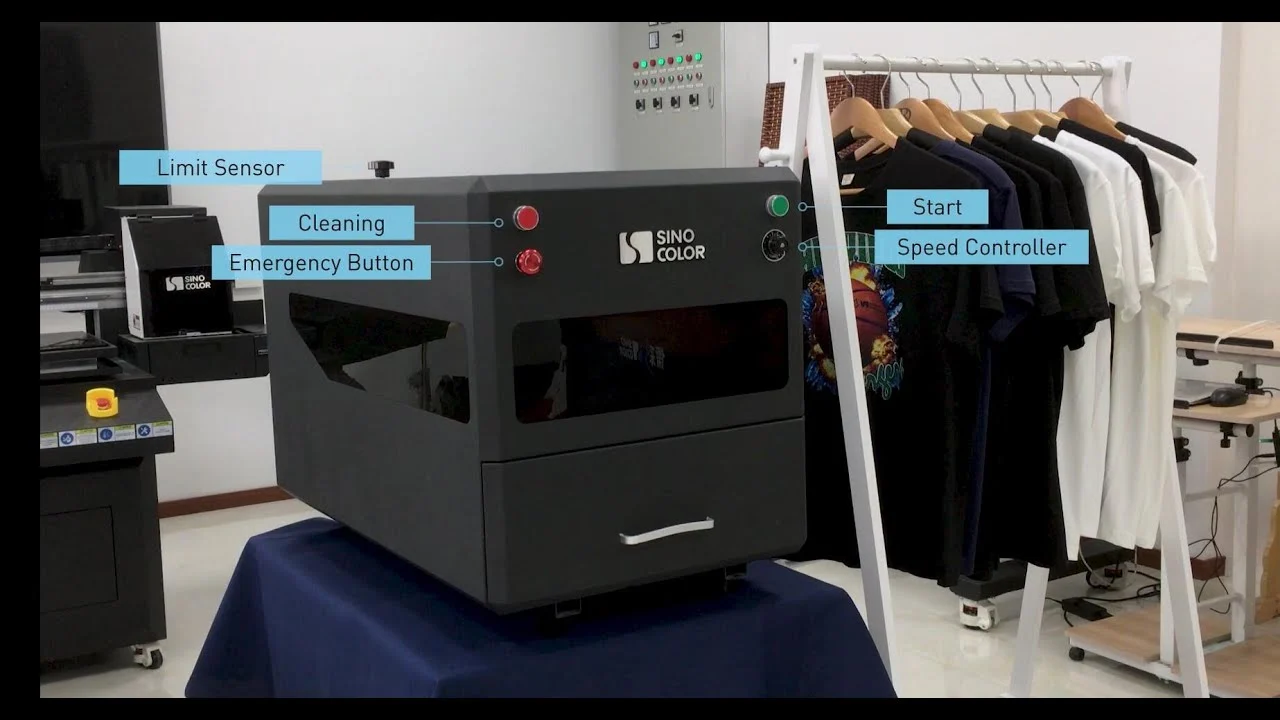

iSpray T-shirt Pre-treating Machine

|

|

|

|

1.Easy Operation.Automatic pre-treating.Save labor cost.

2.Environment friendly.No need to worry about the breath-in of pretreatment liquid during working.

3.Get real equable pre-treating.

4.Great help to save pre-treatment liquid.(Generally 30-35ml for one shirt)

1.Easy Operation.Automatic pre-treating.Save labor cost.

2.Environment friendly.No need to worry about the breath-in of pretreatment liquid during working.

3.Get real equable pre-treating.

4.Great help to save pre-treatment liquid.(Generally 30-35ml for one shirt)

Machine Name	iSpray
Direct-to-Textile	Yes
Number of Spray nozzle	2 PCS
Nozzle Control Technology	Automatic flow drop control
Spray Speed	Light color :5 seconds/1 T-shirt, 40ml;Dark 6 seconds/1 T-shirt 45ml (520mm x 420mm )
Spray Path Width	40cm
Spray Path Length	Adjustable up to 50cm
Standard Platen Size	500mm x 400mm
Spray Path Motion	Uni-direction & Bi-Direction
Spray Flow	10ml~ 100ml Adjustable
Liquid Channel	2 channels. One for dark color T-shirt pretreatment, one for light color T-shirt pretreatment
Electrical Re quirements	220V/110V（50HZ/60HZ) 150W
Transmission Type	Linear rail
Net Weight	59Kg
Packing Weight	90Kg
Machine Size	905500600mm
Packing Size	1005600800mm
