What you can get from one huge 5 meter UV printer? No need welding for large format printing then no welding trace. Perfectly guarantee the output quality and integrity of the design. Win your market in high-end printing area.

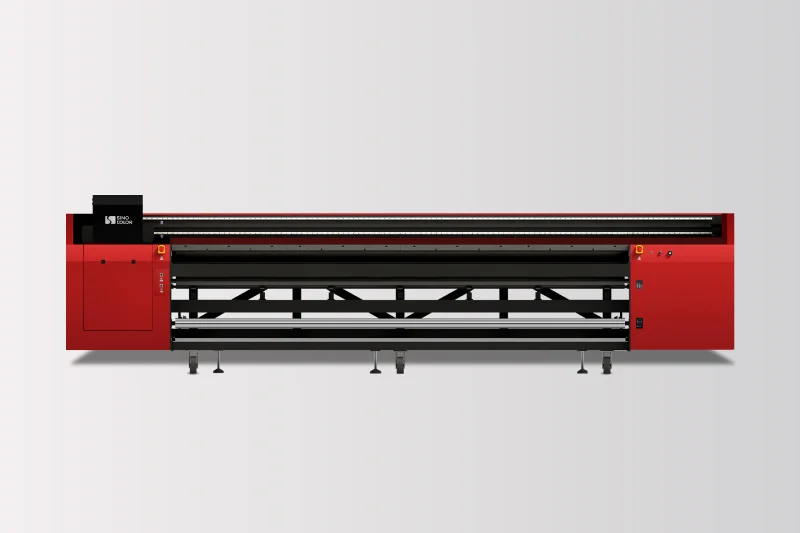

Max 5 meters printing width. No need welding for large format printing. Perfectly guarantee the output quality, and integrity of the design.

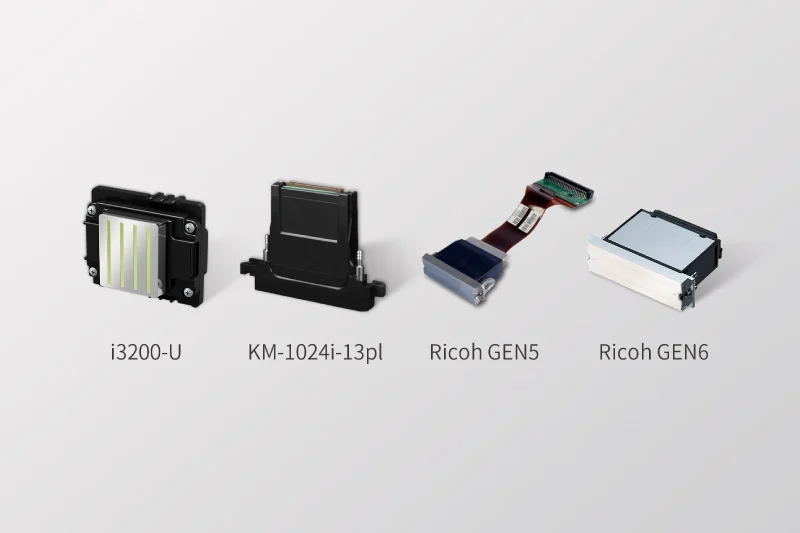

Epson i3200-U, Konica KM-1024i-13pl, Ricoh GEN5/ GEN6 heads are optional to meet various demand of printing effect and material. Machine could support maximum 16 printheads to achieve fast speed up to 130 sqm/h.

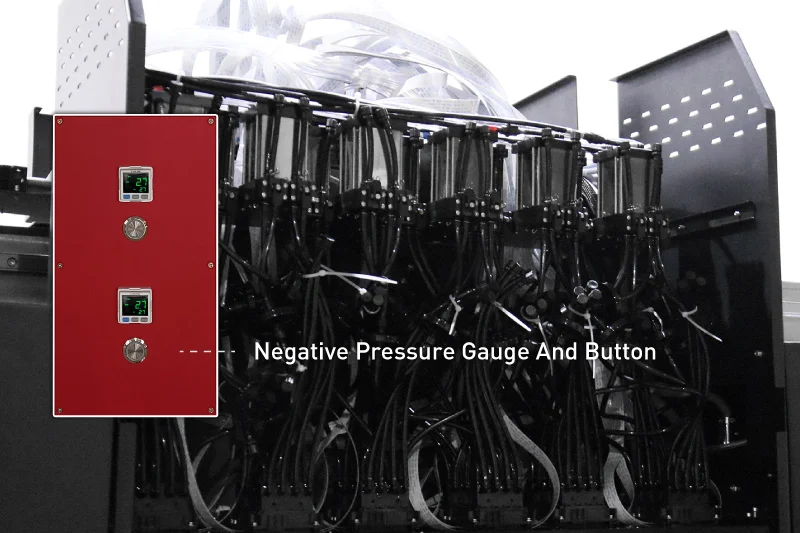

Two advanced separate negative pressure systems. Simply and effectively ensure the continuous ink flow, and easy maintenance for multi-heads equipment.

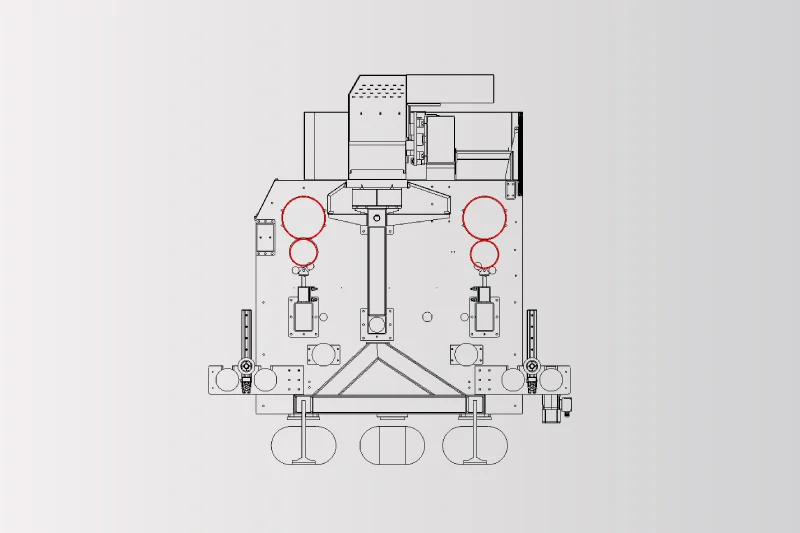

Up to 4 sets ultra large rubber roller are equipped on machine, Roller’s total weight is over 1 ton, to assure maximum contact area and friction force with the printing material in order to increase the accuracy of every moving step of the material during the printing.

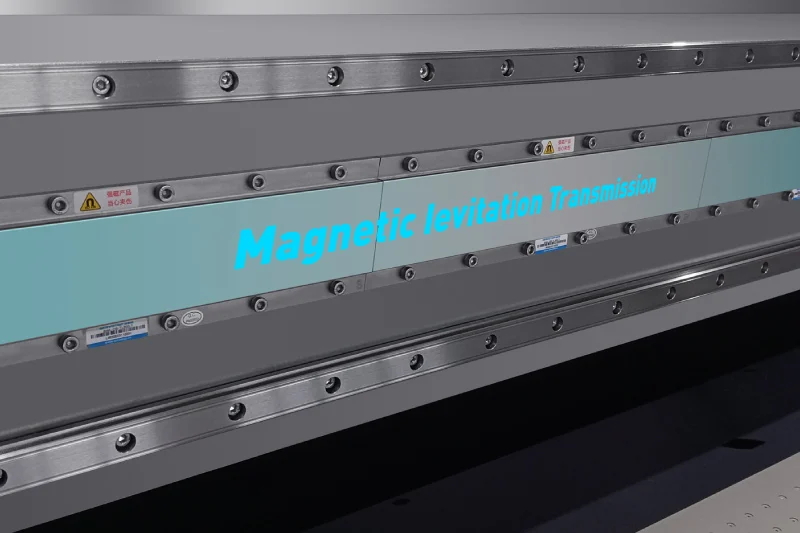

Professional magnetic grating & maglev linear motor positioning system, provide higher resolution,20% faster speed and better durability. Guarantee the long-term high stability running.

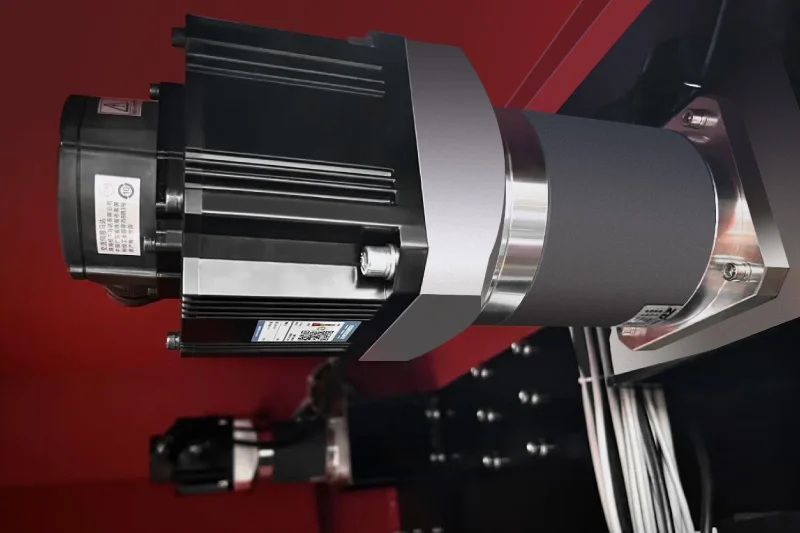

Two 1500W high power Panasonic servo motors for the rubber rollers. Guarantee the perfect media stepping of 5m width.

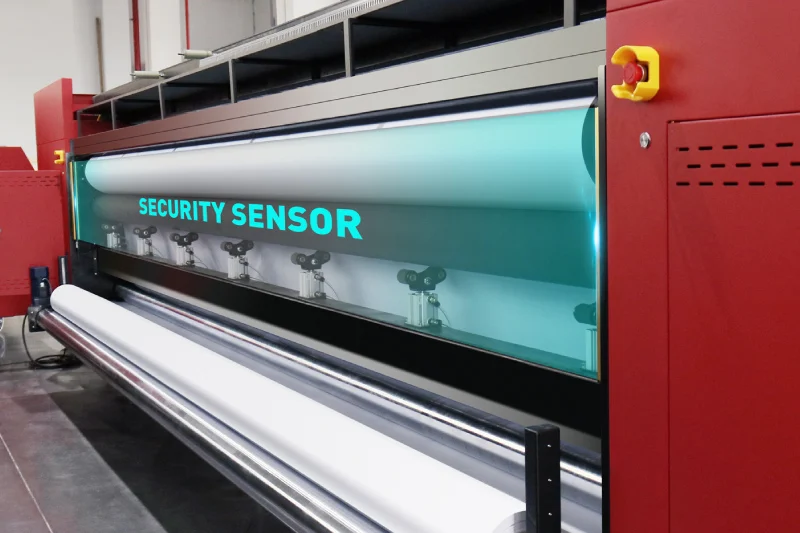

Standard high sensitivity security sensor for the media feeding system. Stop the machine immediately when any abnormality detected. Guarantee the safe operation.

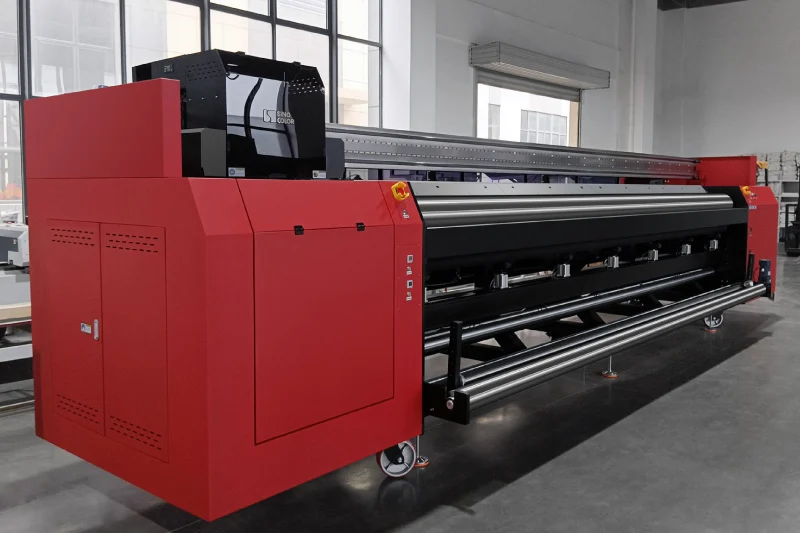

The heavy duty steel machine body, built for long-term and high stability running.

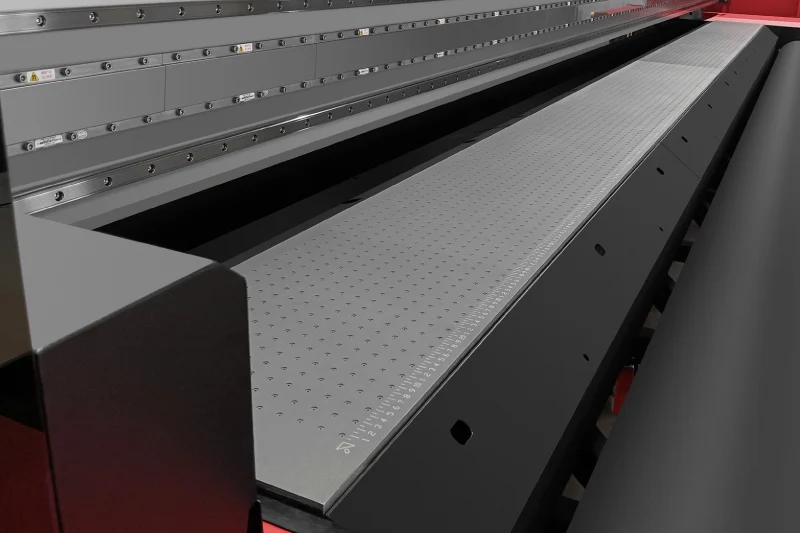

Eliminates the influence to the material smoothness by the heat from the UV lamp,guarantee the high quality output.
Eliminates the influence to the material smoothness by the heat from the UV lamp, guarantee the high quality output !

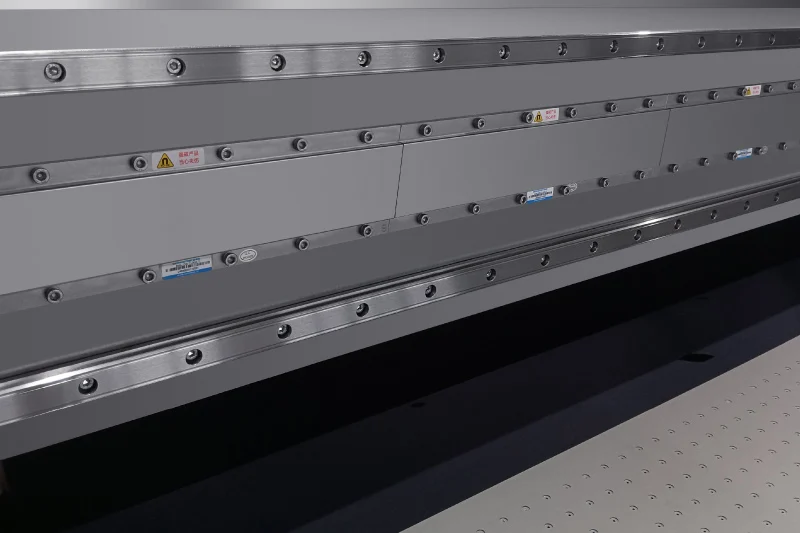

Branded accessories are used for high attrition areas. Greatly increased the lifetime and stability of the machine. For example the Japanese THK guide rail, German Igus drag chain, Italian Megadyne belt.
What you can get from one huge 5 meter UV printer? No need welding for large format printing then no welding trace. Perfectly guarantee the output quality and integrity of the design. Win your market in high-end printing area.
| Model No. | UR-5000S | UR-5000Rs | UR-5000K | |
|---|---|---|---|---|
| Printing Head | 4/8 Epson i3200-U | 4/8/12 Ricoh GEN6 | 8/12/16 Konica KM1024i-13pl | |
| Resolution | 2400dpi | 1200 dpi MAX | 1440 dpi MAX | |
| Media | Width | 5000 mm MAX | ||
| Type | Canvas, Leather, PET Film, Reflective Film, Soft Ceiling Film & More Flexible Material Etc. | |||
| Transmission | Rubber roller transfer system | |||
| Ink | Type | UV Ink | ||
| Color | CMYK/CMYK+W/CMYK+W+V | |||
| Curing | High Quality Water Cooling UV-LED Lamp | |||
| Speed | Printing Mode | CMYK | ||
| Draft | 90 ㎡/h (8 Heads) | 42 ㎡/h (8 Heads) | 130 ㎡/h (12 Heads) | |
| Production | 60 ㎡/h (8 Heads) | 21 ㎡/h (8 Heads) | 90 ㎡/h (12 Heads) | |
| Quality | 42 ㎡/h (8 Heads) | 17 ㎡/h (8 Heads) | 67 ㎡/h (12 Heads) | |
| Ink Supply System | Two advanced separate negative pressure systems | |||
| Cleaning | Automatic Cleaning, Anti-Clogging Flash Function & Anti-Collision | |||
| Feed & Take Up | Automatic Media Feeding & Take up System | |||
| Rip Software | FlexiPrint | |||
| Connector | USB 3.0 | |||
| Power | AC 110/ 220V, 50/ 60Hz, 7000W | |||
| Machine & Packing | L7770×W2000×H2030mm, 6000KG | |||
