UV Flatbed Printer FB-2513R / FB-2513Rs / FB-2030Rs

The FB-2513R offers uncomparable print capabilities, permitting you to explore a new world of merchandise and applications, including heavy, rigid materials up to 12cm thick. It is designed to print higher gradient color in sign and decoration industry, makes background wall of more visual impact, and gain more impressive layering with bump impact.

Download PDF Brochure

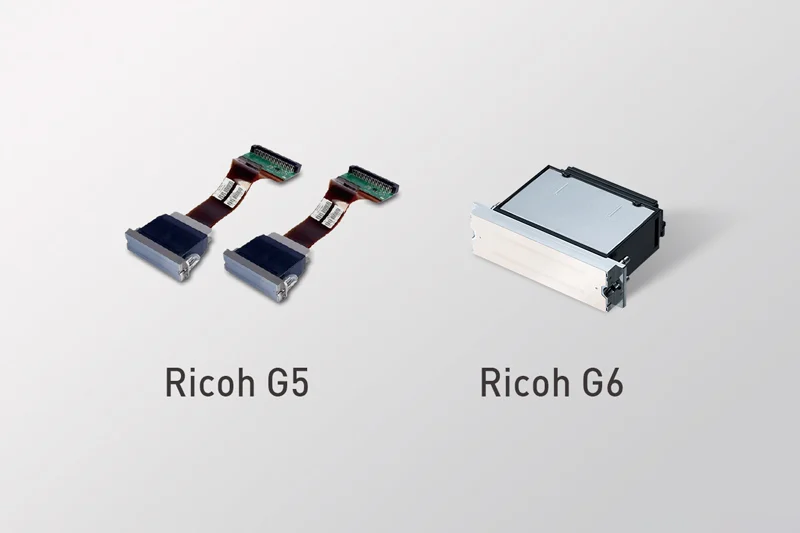

Ricoh GEN5 & GEN6 Available,meet the demand of different clients.

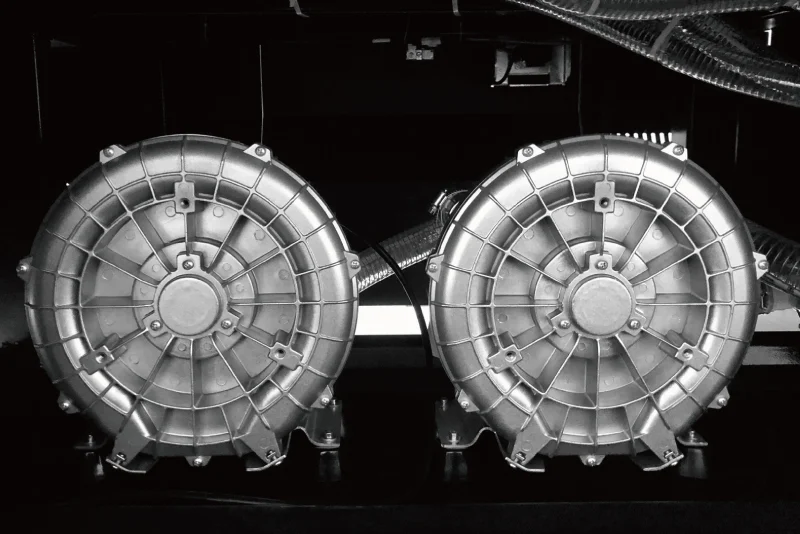

Double built-in high-power inependent vacuum pump. Guarantee the powerful suction.

Advanced ClS Machine Vision System (Optional)

Detect not only the object position, but also the direction automatically.Greatly increase the positioning precision and work efficiency.

User-friendly projecting touch screen. Make the operation to be at your fingertips.

Negative Pressure System

Equipped with two advanced separate negative pressure systems (One for color and varnish, One for white). Stabilize the airpressure inside the ink supply system, one button to fill the ink. Simply and effectively ensure the continuous ink flow, assurethe maintenance of multi-heads equipment to be easy as well.

Automatic media height detecting function, provide great help for setting the proper print height.

Built-in media alignment pins, guarantee the quick, simple and high precision media positioning.

Consistent design of double guide rail, guarantee the stable movement of carriage.

And one-time molding aluminum beam that ensure the high accuracy of each carriage movement.

Anti-collision system is equipped to protect the printhead and carriage all the time.

Divide the vacuum table to 4 zones. Concentrate energy, Save energy.

And electric controlled. More convenient

Quality anti-static device is optional. eliminate static efficiently and reliably from printer and the media. Gurantee the high precision output.

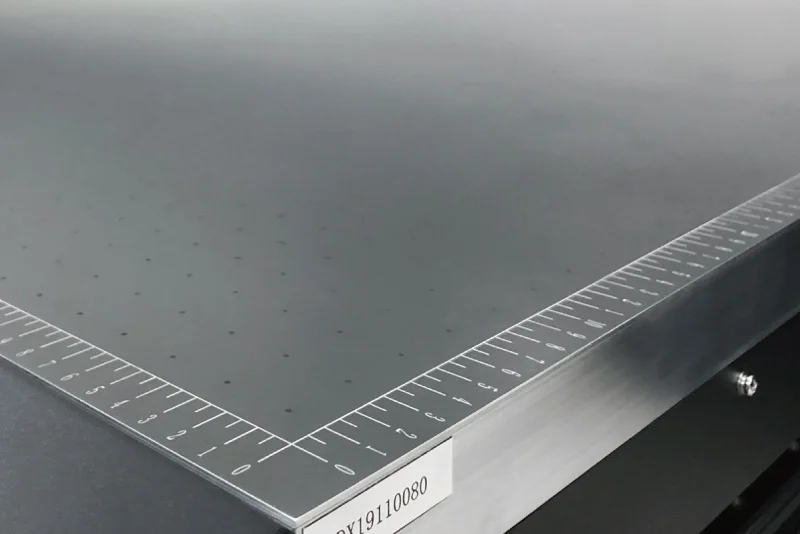

Oxidation treated high precision platform. High resolution, easy to clean.

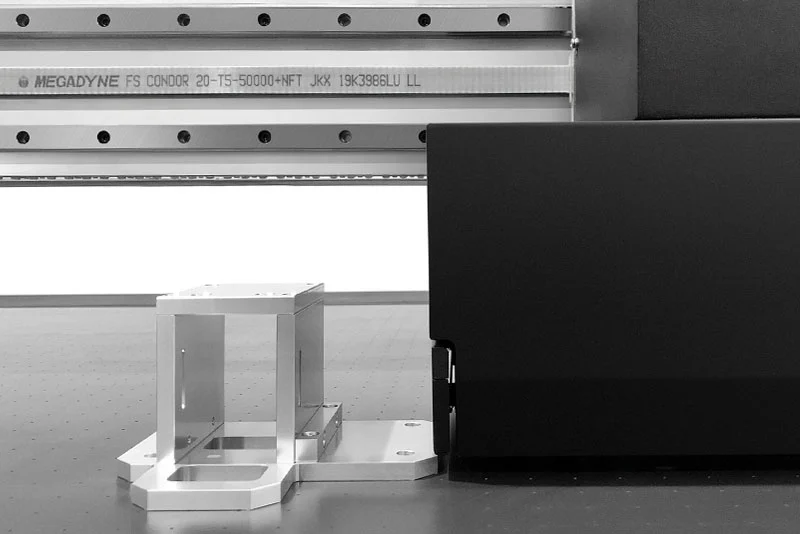

Advanced magnetic levitation transmission is available (optional). Easy to clean, durable. Built for fast, stable, and long-term running.

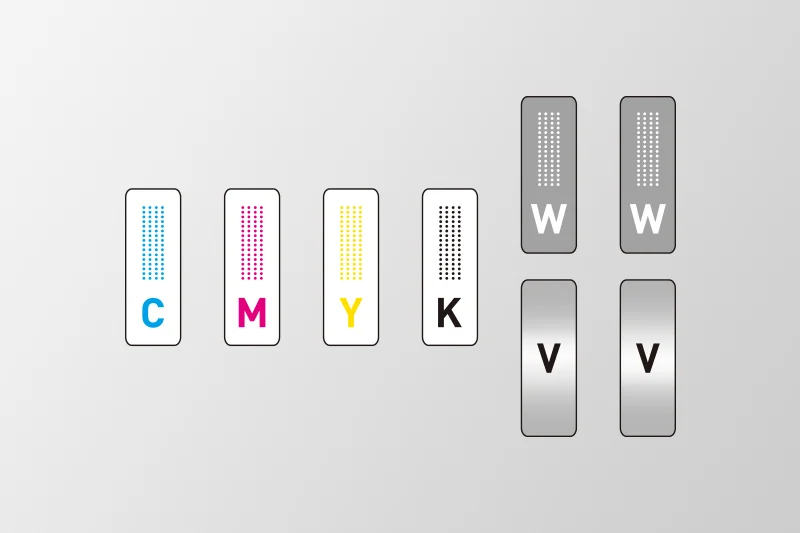

Multi-head available. System support maximum 8 printheads.
Meet the demands of high-speed printing.

Branded circuit breaker to protect the safety of the whole electronic system.

Lack ink alarm system is equipped. Give LED light signal reminding operator to fill the ink. No interruption during printing job any more.

White ink stir system is equipped. Decrease the problems caused by white ink precipitation.

Screw rod type transmission for the Y axis. Guarantee the high precision of each printing.

High grade two-layer Germany Igus drag chain. Effectively protect ink tube and cables.

Download PDF Brochure

Model No.		FB-2513R	FB-2513R	FB-2030Rs
Printhead		Ricoh Gen5	Ricoh Gen6	Ricoh Gen6
Number of Printheads		2/3/4/5/6/8 pcs optional
Resolution		Max 1200 dpi
Media	Thickness	12 cm MAX
	Size	2500 x 1300 (mm)		2000 x 3000 (mm)
	Types	Glass, Acrylic, Ceramic, Metal, Paper, Wood, Leather, PVC , PP, PE, PTFE Etc.
Speed	Draft	14 sqm/h (CMYK +W,3 Heads)	17 sqm/h (CMYK +W,3 Heads)	29 sqm/h (CMYK ,4 Heads)
	Standard	10 sqm/h (CMYK +W,3 Heads)	12 sqm/h (CMYK +W,3 Heads)	20.5 sqm/h (CMYK ,4 Heads)
	Photo	8 sqm/h (CMYK +W,3 Heads)	10 sqm/h (CMYK + W,3 Heads)	16 sqm/h (CMYK ,4 Heads)
Ink	Type	UV Ink
	Color	CMYK/CMYK+W/CMYK+W+V/CMYK+Fluorescent M&Y+W+V(+Primer)
	Capacity	500 ML
	Dry System	UV_LED light system
PC Operation System		Windows 7/XP/10
Operation environment		Temperature: 20-28℃, Humidity: 40%-60%
Rip Software		Maintop (Standard)/ FlexiPRINT (Optional)/Onyx (Optional)
Image Format		TIFF, JPEG, EPS, PDF…
Power Supply		AC 110/ 220V, 50/ 60Hz, 4800W
Size	Machine	L4160 × W2130 × H1520 mm		L3770 × W3900 × H1600 mm
Size	Packing	L4300 × W2280 × H1780 mm		L3900 × W2280 × H2000 mm
Weight	Machine	870 KG		1460 KG
Weight	Packing	1100 KG		1970 KG
