SinoColor MF series multi-functional oil thermal transfer machine is suitable for both thermal transferring on fabrics and low temperature transferring on cotton materials.With high quality oil heating system, MF machine is a perfect choice for fabric and clothing printing.
* Both thermal transferring and low temperature transferring are available
* Perfect result of transferring
* It uses duplex oil tank to get more even temperature output
* Precise mechanical structure
* Adjustable air pressure control system improves transferring results of different kinds of materials

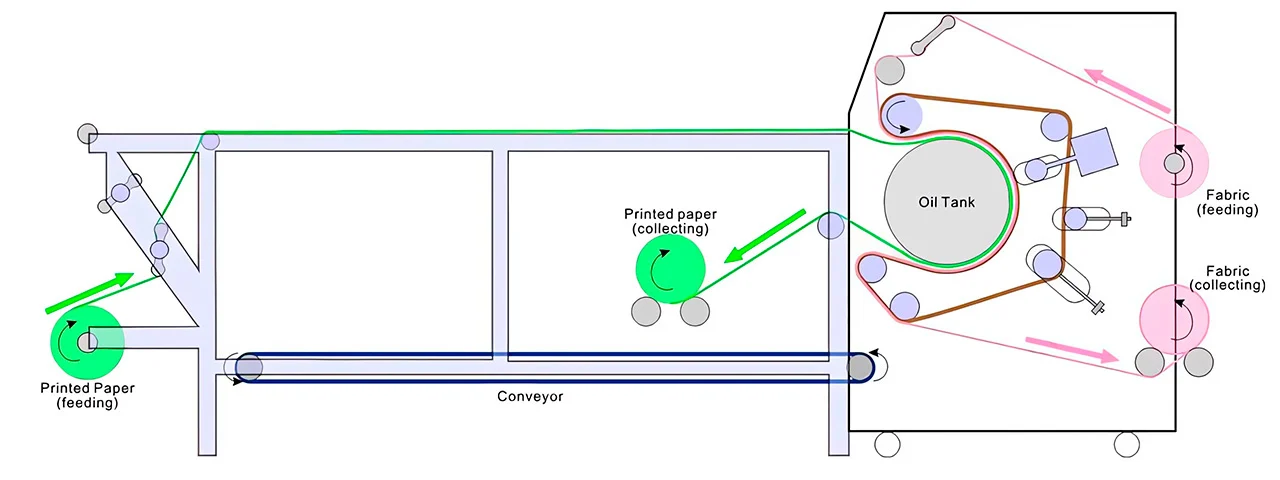

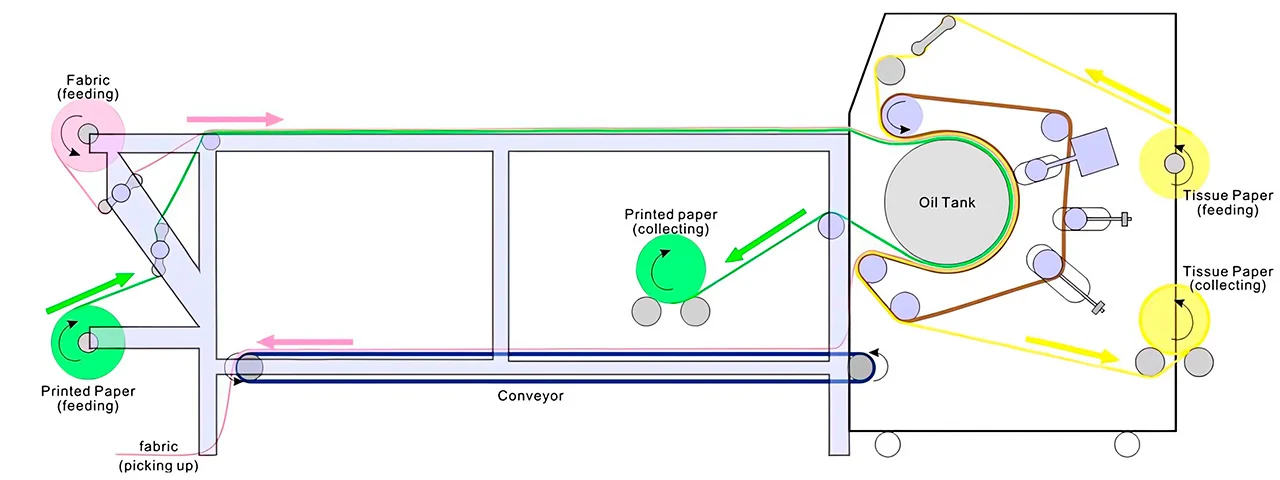

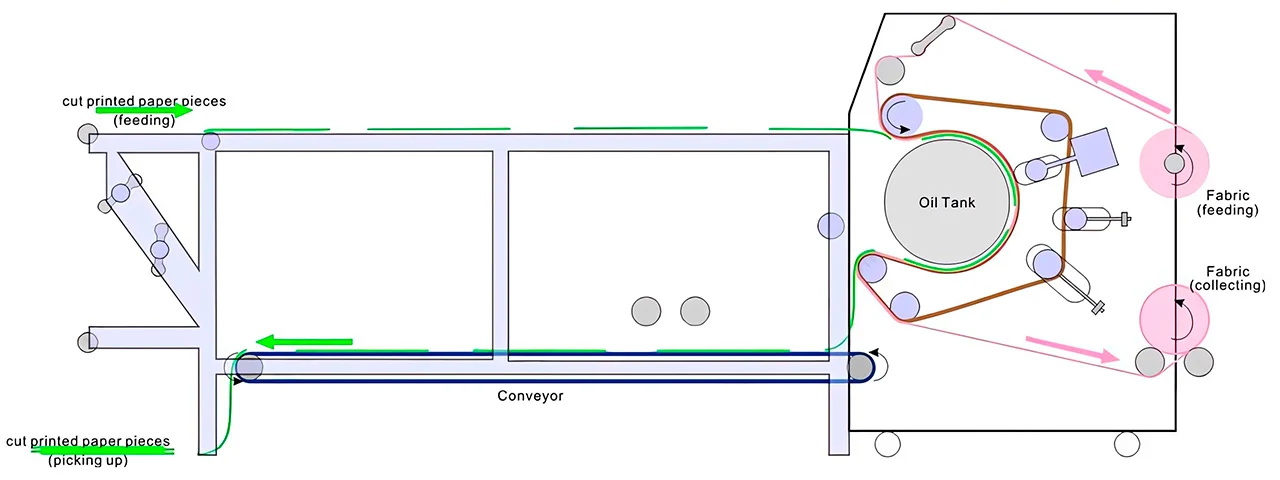

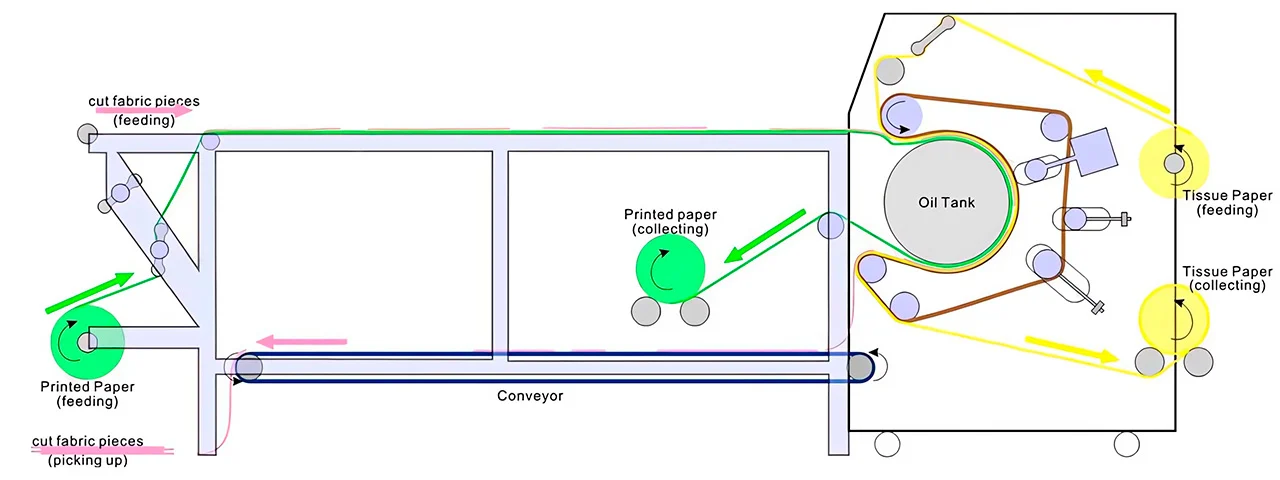

* It feeds and collects rolls and clothing pieces in parallel by roll- to-roll system without drifting the materials to left or right

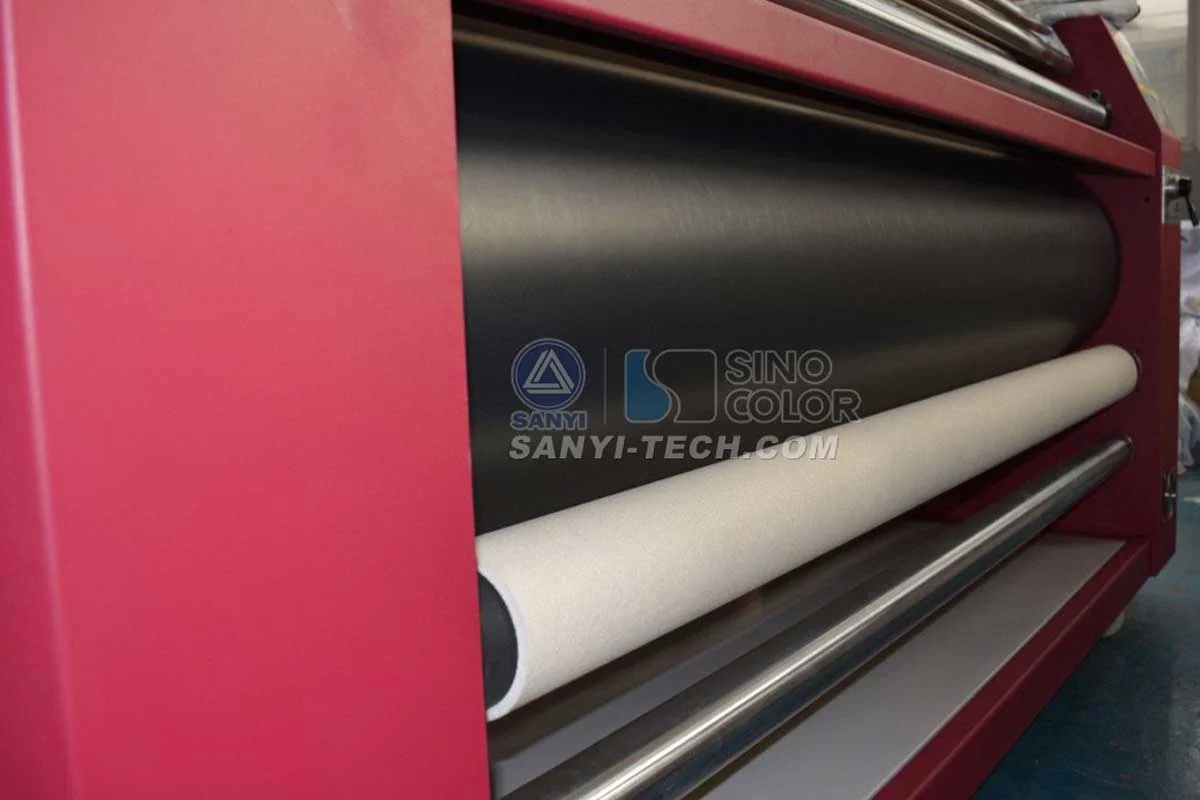

* Blanket can be separated from oil tank easily
* Customized machine to work with different power supplies
| Model No. | MF-1700 | MF-2600 | MF-3200 |
|---|---|---|---|
| Suitable Media | Polyester fabric rolls, garments, flags, tent, blanket, curtain etc | ||
| Power Supply | 3 phases, 220v/60hz,3 phases , 380v/50hZ | ||
| Power | 18kw | 30kw | 36kw |
| Quantity of electric element | 12pcs (1.5kw) | 12pcs (2.5kw) | 12pcs (3.0kw) |
| Diameter of heating roller | 420mm(16.5″) | ||
| Width of Blanket | 1730mm(68″) | 2600mm(102″) | 3300mm(130″) |
| Machine Size | 2470 x 980 x 1320mm | 3290 x 980 x 1320mm | 4010 x 980 x 1320mm |
| Work Table Size | 1860 x 1920 x 1000mm | 2660 x 1920 x 1000mm | 3360 x 1920 x 1000mm |
| Packing Size | 2600 x 1300 x 1650mm | 3600 x 1500 x 1650mm | 4250 x 1500 x 1650mm |
| Net Weight | 1380kg | 1880kg | 2180kg |
