UV Flatbed Printer FB-0906S Max

|

products

|

UV Printer

|

UV Flatbed Printer

|

Need a machine that’s compact yet highly functional? The SinoColor FB-0906S Max series is your first choice.

90x60cm printing area, with 2–8 Epson i3200 or Ricoh GEN6 printheads. Max media height: 50cm. Supports up to 19 colors – from extended gamut and fluorescent to white, varnish, and even gold foil varnish. Achieve any effect imaginable.

Download PDF Brochure

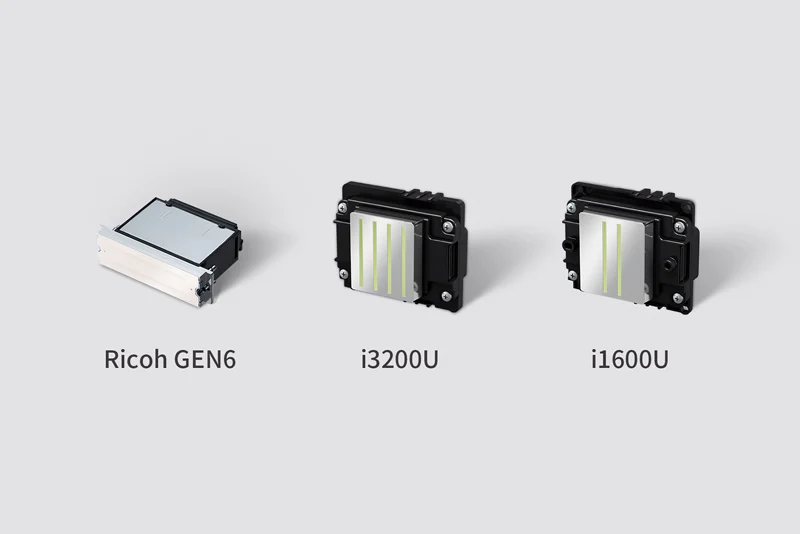

Different Printheads Available

Epson i1600 & i3200U, Ricoh GEN6 available. Meet the demand of different clients.

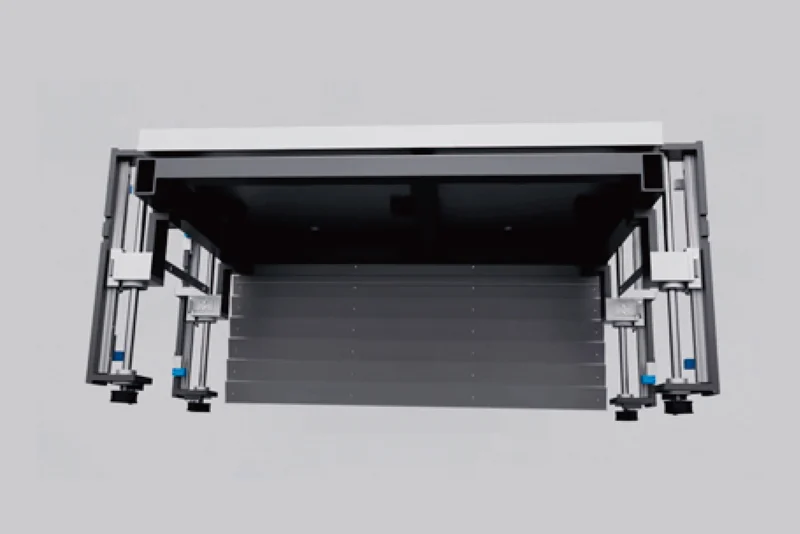

Ultra-Precision Quad-Axis Coordinated Lifting Platform

Ensures the high accuracy and high stability printing.
Support media height of max 50cm.

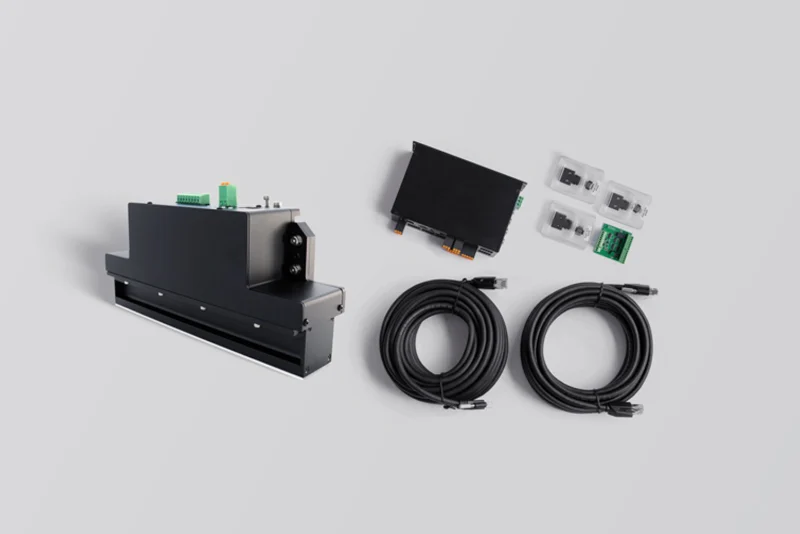

Advanced Machine Vision System (Optional)

Detects not only the object position, but also the direction automatically.Greatly increase the positioning precision and work effciency.

Magnetic Levitation Transmission Available (Optional)

Easy to clean. Durable. Built for fast,stable and long-term running.

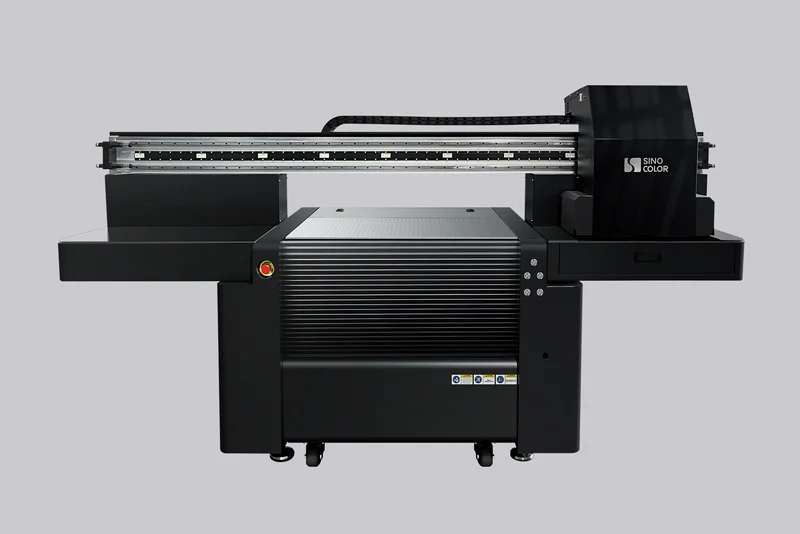

Professional Design

Designed X direction width set at 90cm instead of 60cm, effectively increasing the printing speed of the same resolution.

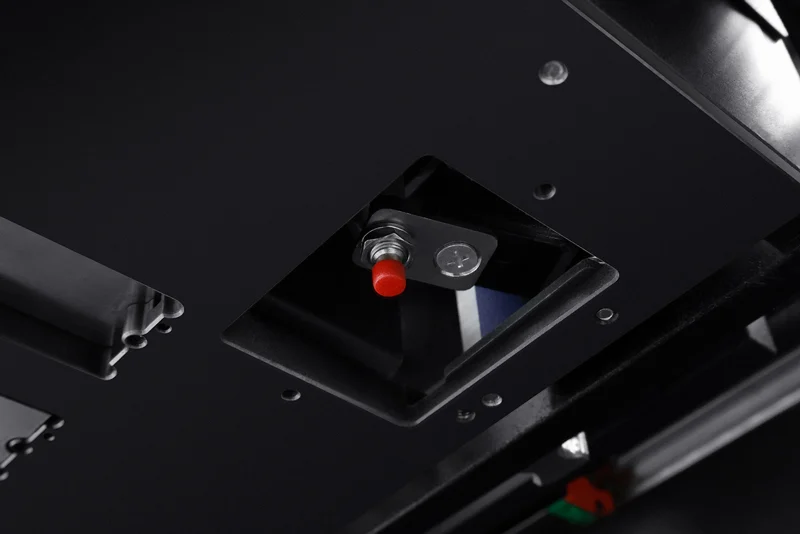

Automatic Media Height Detecting

Automatic media height detecting system is equipped, provide great help for setting the proper print height.

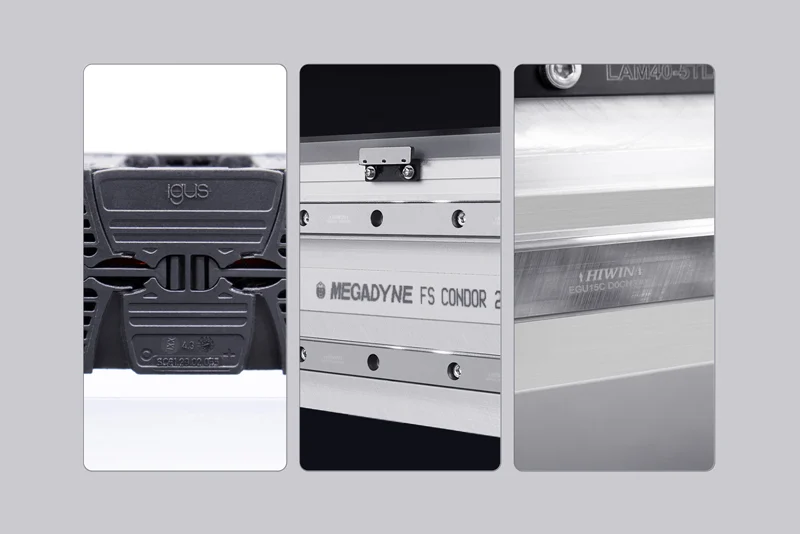

Branded Parts

Branded accessories are used for high attrition area.Greatly increased the lifetime and stability of the machine.For example, the Hiwin guide rail, German Igus drag chain, Italian Megadyne belt.

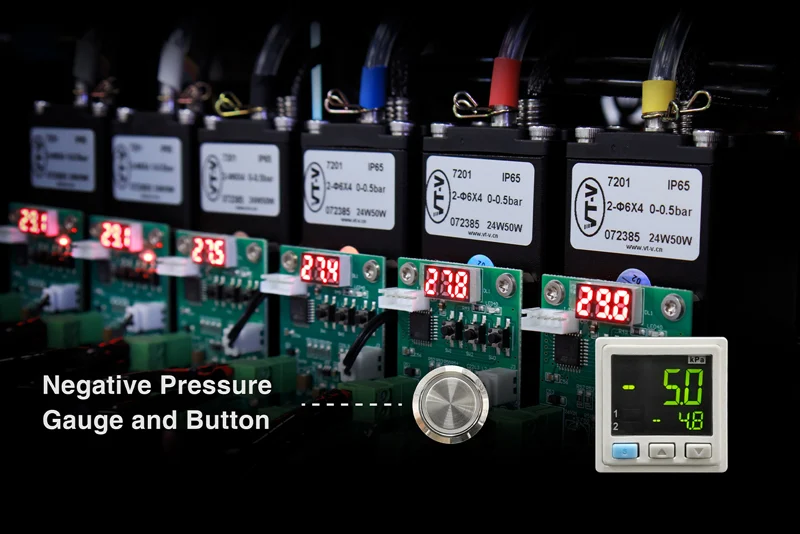

Negative Pressure System Available

Stabilize the air pressure inside the ink supply system,one button to fill the ink. Simply and effectively ensure the continuous ink flow, assure the maintenance of multi-heads equipment to be easy as well.

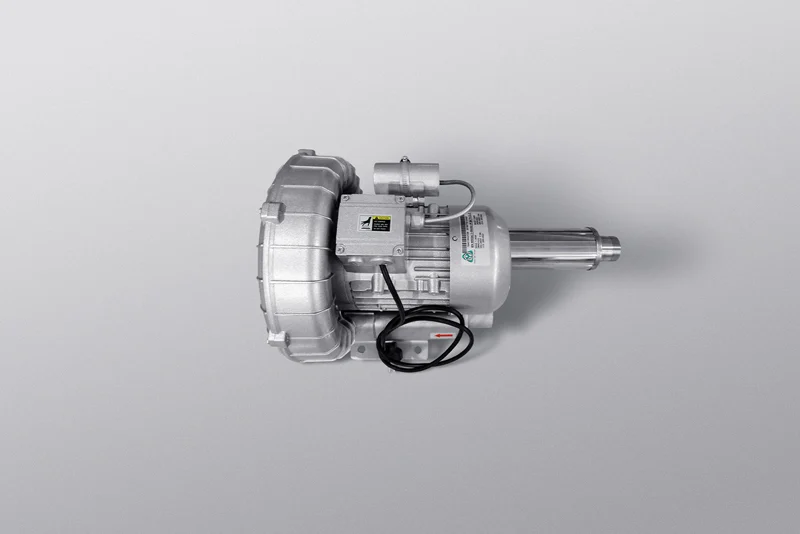

High-power Independent Vacuum System

Much more practical and functional than the vacuum system with small-power internal vacuum fans. Ensure the perfect printing of hard or thin/soft material.

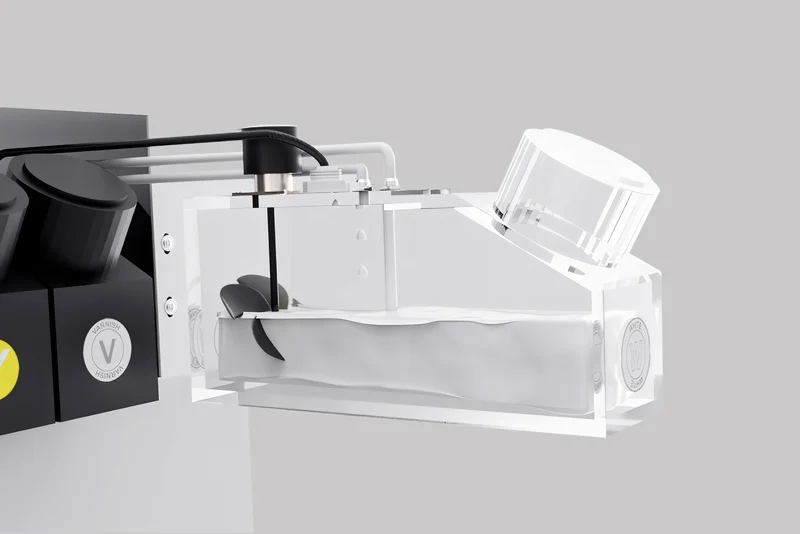

White Ink Stir System

White ink stir system is equipped. Decrease the problems caused by white ink precipitation.

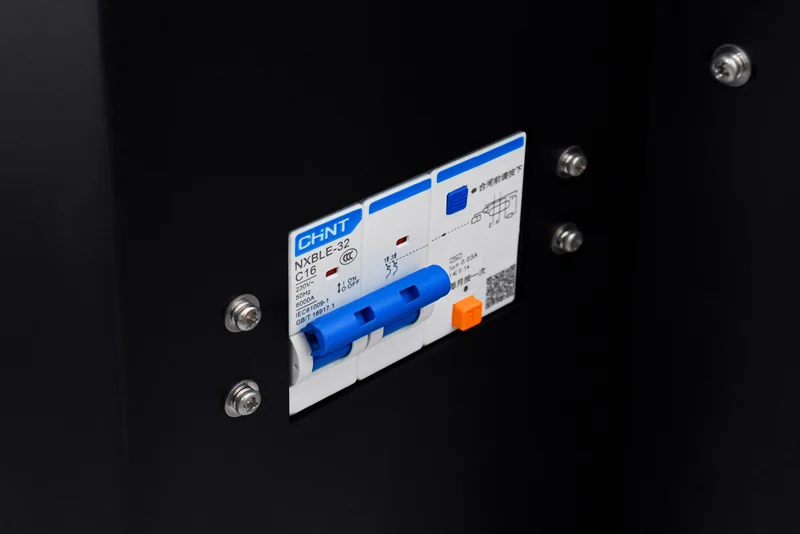

Branded Circuit Breaker

Protect the safety of the whole electronic system.

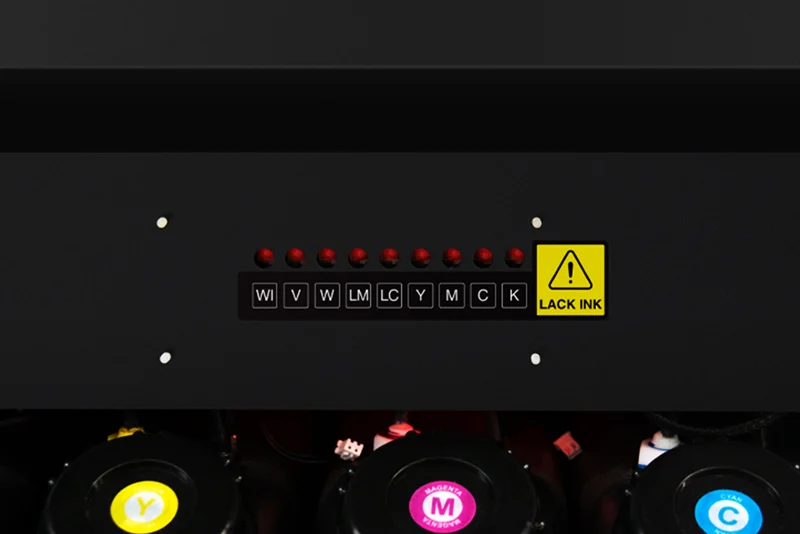

Lack Ink Alarm System

Lack ink alarm system is equipped, gives LED light signal reminding operator to fill the ink. No interruption during printing job any more.

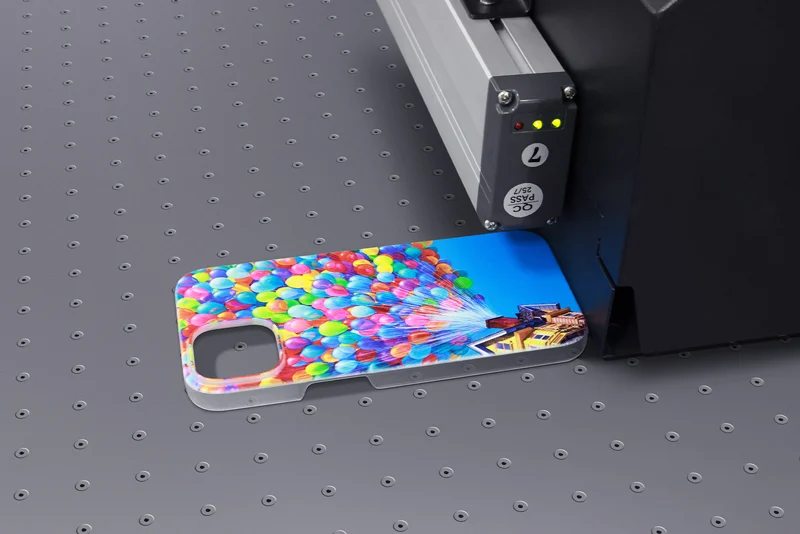

Standard Anti-collision System

Printer will automatically stop when the printhead carriage hit any unexpected object during working, protect the printhead and carriage all the time.

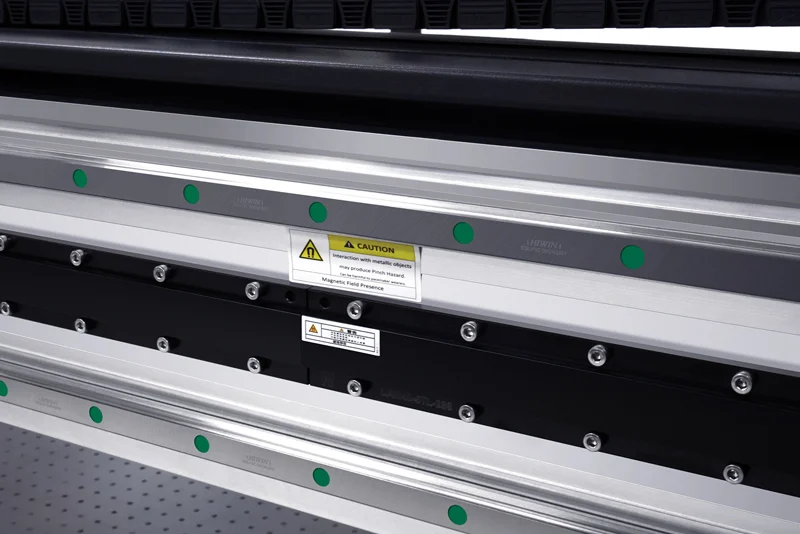

One-time Molding Aluminum Beam

Ensure the high accuracy of each carriage movement.

Need a machine that’s compact yet highly functional? The SinoColor FB-0906S Max series is your first choice.

90x60cm printing area, with 2–8 Epson i3200 or Ricoh GEN6 printheads. Max media height: 50cm. Supports up to 19 colors – from extended gamut and fluorescent to white, varnish, and even gold foil varnish. Achieve any effect imaginable.

Download PDF Brochure

Model No.		FB-0906D/S Max	FB-0906Rs Max
Printhead		2-8 Epson i1600U/ i3200U	2-8 pcs Ricoh GEN5/ GEN6
Resolution		Max 2400 dpi	Max 1200 dpi
Media	Thickness	50 cm Max
	Size	900 x 600 (mm)
	Types	Glass, Acrylic, Ceramic, Metal, Paper, UV DTF Film, Wood, Leather, PVC , PP, PE, PTFE Etc.
Speed	Draft	3 min for A1 full size	5min 30s for A1 size
	Standard	6 min for A1 full size	8 min for A1 size
	Quality	9 min for A1 full size	13min 30s for A1 size
Ink	Type	UV Ink
	Color	CMYK / CMYK+W / CMYK+W+V / CMYK+W+V+Primer /CMYK+W+V+Fluorescent Color or Primer
	Capacity	500 ML
	Dry System	UV_LED light system
PC Operation System		Windows 7, Windows XP, Windows 10
Operation environment		Temperature: 20-28℃, Humidity: 40%-60%
Rip Software		Maintop / FlexiPRINT (Optional) / Onyx (Optional)
Image Format		TIFF, JPEG, EPS, PDF
Power		AC 110/ 220V, 50/ 60Hz, 1800W
