1. Compact design,Simple and decent
2. Maximumly use mold to produce machine components to achieve best resolution.
3. Sinocolor System. Much more professional and more stable than desktop modified printer. Control the color freely.
4. White ink circulation system equipped. Decrease problem caused by White ink precipitation.
SinoColor System. Much more professional and more stable than desktop modified printer. Control the color freely.
Maximumly use mold to produce machine components to achieve amazing resolution.
One printer, two engines. Two printheads to drive the machine. One for color ink, one for white ink. Perfectly balanced the printing quality and productivity.
Adjustable UV Light strength to coordinate different printing speed.
Vacuum platform is optional. Make the printing of light and thin media to be convenient.
Media Sensor. Autamatically detect material height.
White ink circulation and stirring system are equipped. Reduce problem caused by white ink precipitation.
Low ink alarm,waste ink alarm and water box high temperature alarm are equipped to protect the printer.
High quality Hiwin steel guide rail. Build for long life use.
Well-designed touch screen. Easily Adjust platform position.

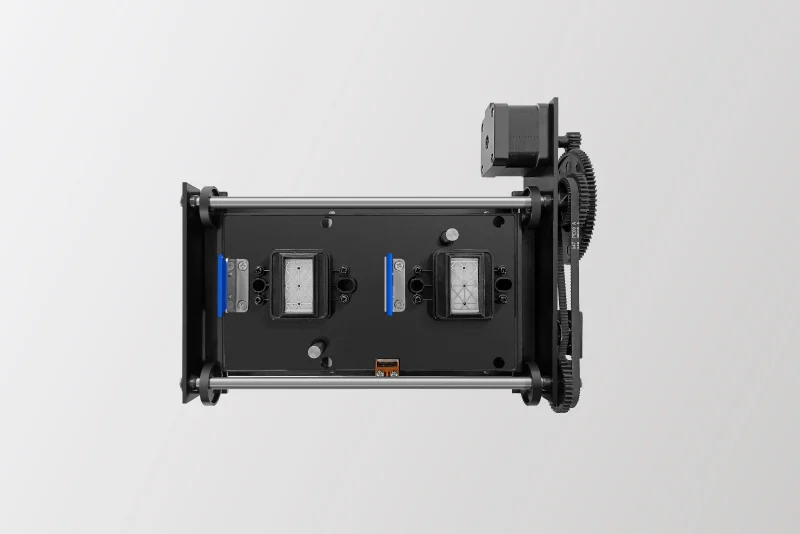

High accuracy and aluminum made capping station system.Lengthways design of two printheads, decrease the machine width and packing size. Besides, sufficient space between white printhead and color ink printhead, avoid the ink mixing problem, guarantee the bright output.
Screw drive transmission and dual Y-axis guide rail are equipped to guarantee the high precision printing.
Branded circuit breaker to protect the safety of the whole electronic system.
Well-designed adjustable platform. The good smoothness of platform and high accuracy printing are guaranteed.
Attentive handle designing, lift and move the equipment easily.
1. Compact design,Simple and decent
2. Maximumly use mold to produce machine components to achieve best resolution.
3. Sinocolor System. Much more professional and more stable than desktop modified printer. Control the color freely.
4. White ink circulation system equipped. Decrease problem caused by White ink precipitation.
| Model No. | UF-300i (Plus) | UF-600i (Plus) |
|---|---|---|
| Printhead | Two Epson printheads | Two Epson printheads |
| Resolution | 1440dpi MAX | 1440dpi MAX |
| Max Speed | 3 minutes for A3 size | 6 minutes for A2 size |
| Print Head Height | 20 cm Max | |
| Printing Size | 30 x 45 cm Max | 42 x 60 cm Max |
| Print Direction | Intelligence double sided | |
| Print Method | micro piezo print technology, intelligence drops transformation technology | |
| Height Adjust | Electric | |
| Distance of Print Head Printing | 1-3 mm (2 mm is the best) | |
| Ink Color | CMYK/CMYK+W/CMYK+W+V/CMYK+W+Pre-treating Liquid | |
| Ink Supply System | CISS | |
| Ink Consumption | 15-20 ml / square meter | |
| Min Ink Drop Size | < 1.5 PL | |
| Interface | USB3.0 | |
| Rip Software | Maintop (Standard)/ FlexiPrint (Optional) | |
| Working Environment | Temperature 18-30 Celsius, Humidity 30-70 RH, Clean room, Low dust, Less sun light | |
| Power | AC 110/ 220V, 50/ 60Hz, 450W | |
| Size&Weight | L880×W750×H680 mm / 95KG | L990×W860×H680 mm / 150KG |
| L1060×W820×H800 mm / 120KG | L1190×W920×H800 mm / 200KG | |
