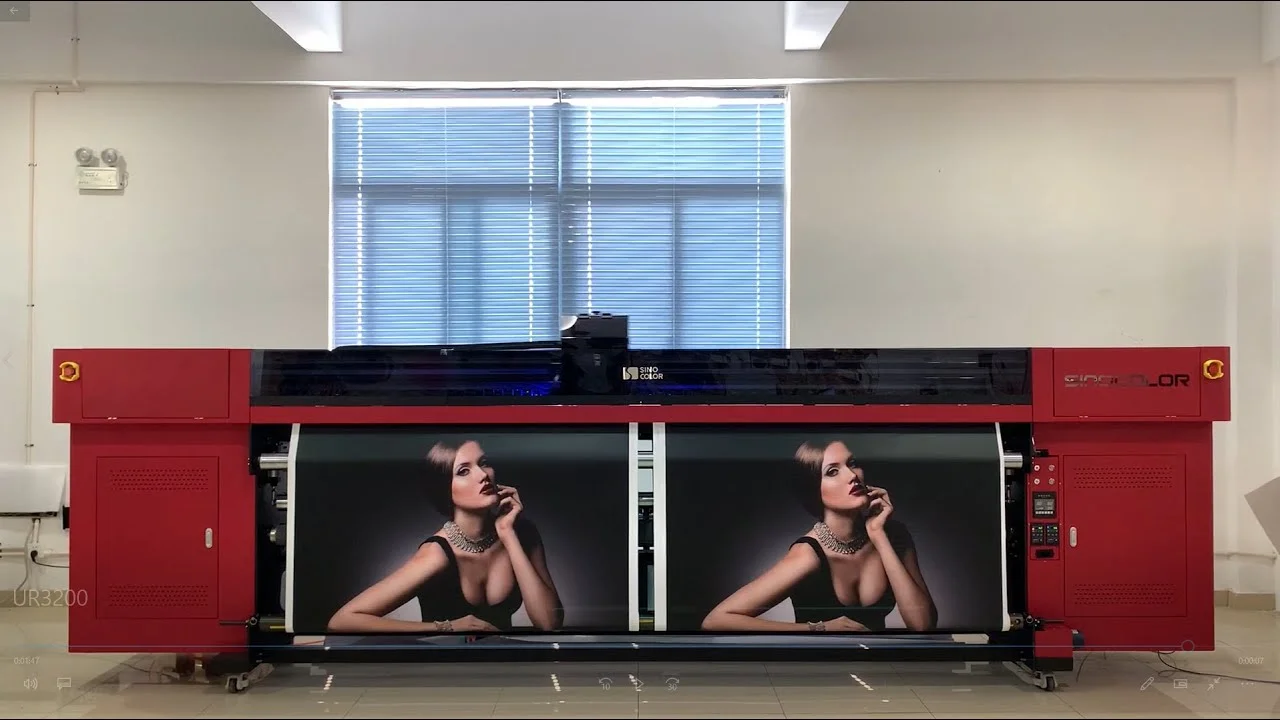

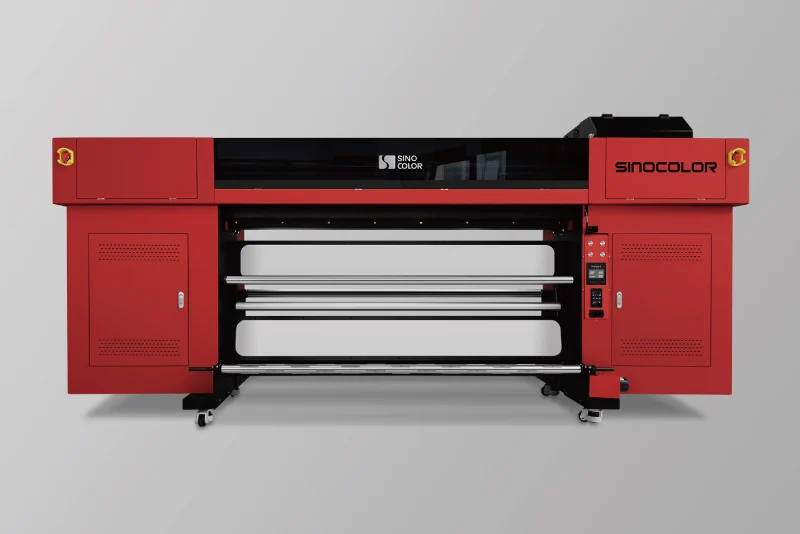

UV Roll to Roll Printer UR-3200 Series

With the UR-3200 series, you can easily create vibrant prototypes and short runs on a variety of actual press substrates, in one seamless workflow. Decor wallpaper, Ad banners, Flexible bag media, Labels. Clear film. CMYK, White, Varnish, Emboss, All with a single device.

Download PDF Brochure

Elegant appearance

Elegant and sleek appearance design, not only an advanced printing equipment, but also a decoration for the company.

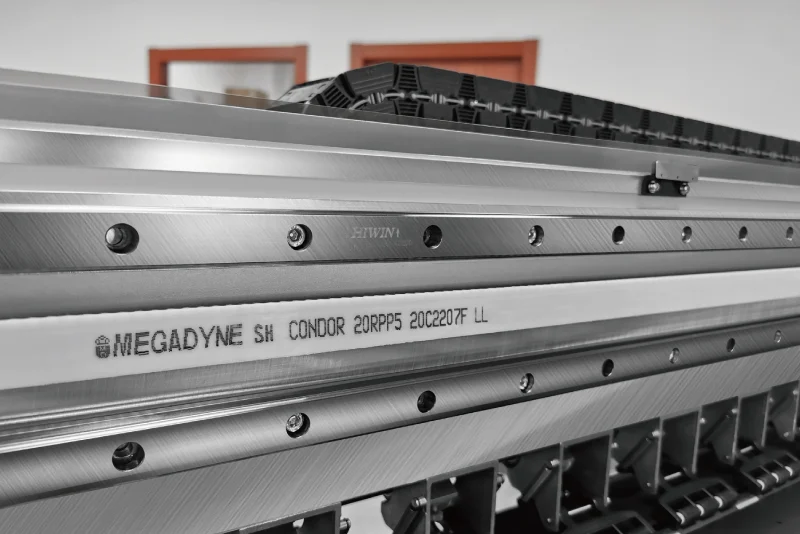

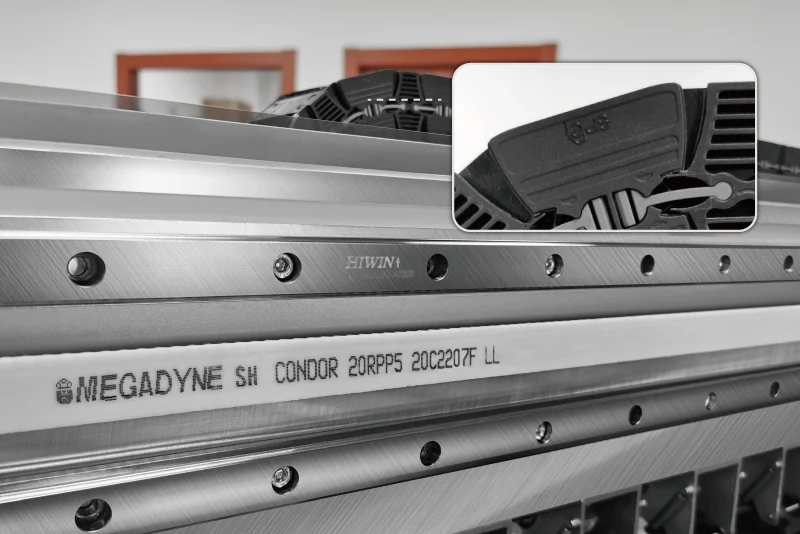

High Quality Component

Branded accessories are used for high attrition areas. Greatly increased the lifetime and stability of the machine. For example, the Hiwin guide rail, German Igus drag chain, Italian Megadyne belt.

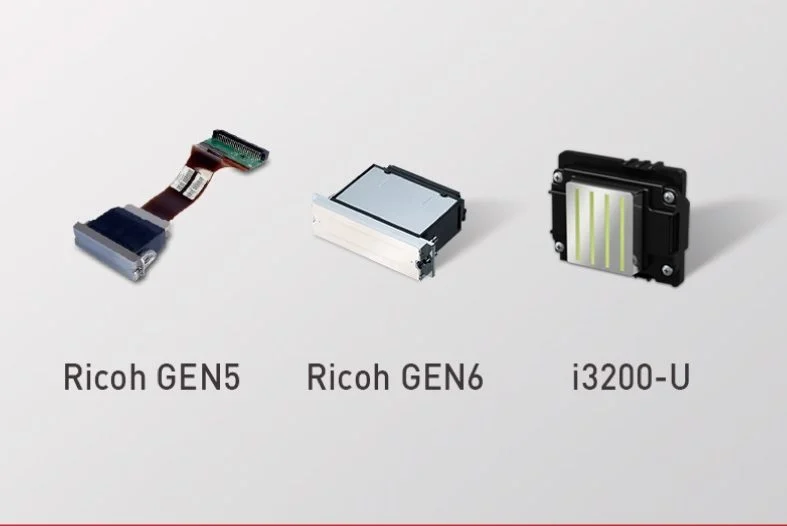

Different Printheads Available

Epson i3200-U, Ricoh GEN5,GEN6 available,meet the demands of different clients

Embossment Effect Printing

Support to print CMYK+White+Varnish,get perfect embossing effect for your image.

Negative Pressure System

Equipped with two advanced separate negative pressure systems (One for color and varnish, One for white). Stabilize the airpressure inside the ink supply system, one button to fill the ink. Simply and effectively ensure the continuous ink flow, assurethe maintenance of multi-heads equipment to be easy as well.

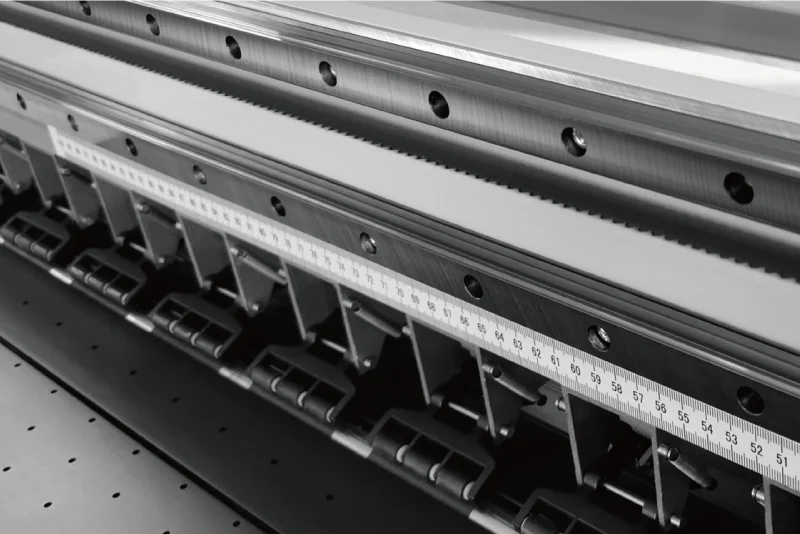

Dual guide rail

Dual guide rail configuration, guarantee the stability of long time running.

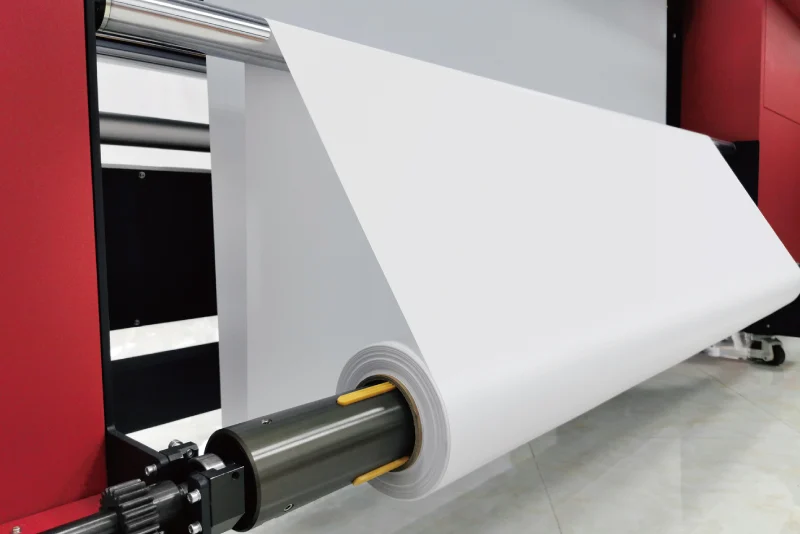

Material Tension System

Well-designed tension type material feeding and take-up system. Ensure the high accuracy of material stepping. Apply to not only regular sign materials, but also materials with slight malleability including the soft PVC film.

Modular Printhead Connecting Component

Modular component design for the connection of printhead and ink supply system, makes the printhead installation, cleaning and replacing to be quite convenient. (For Epson i3200-U)

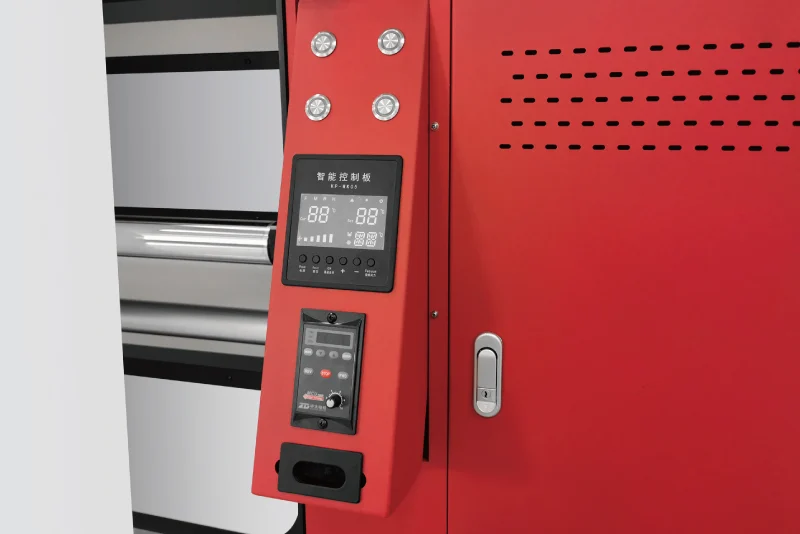

Integrated control centre

Integrated machine control centre. Convenient and high-efficiency.

Aluminum Beam

Ultra wide one-time molding aluminum beam. Ensure the high resolution printing.

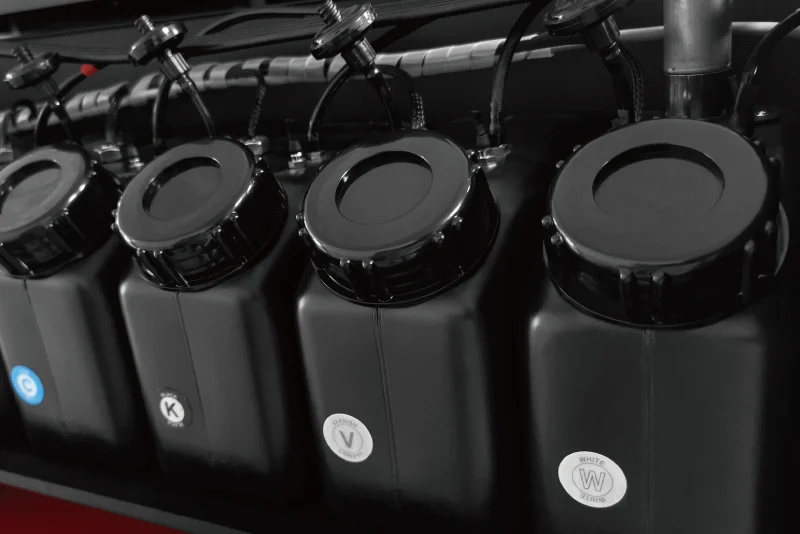

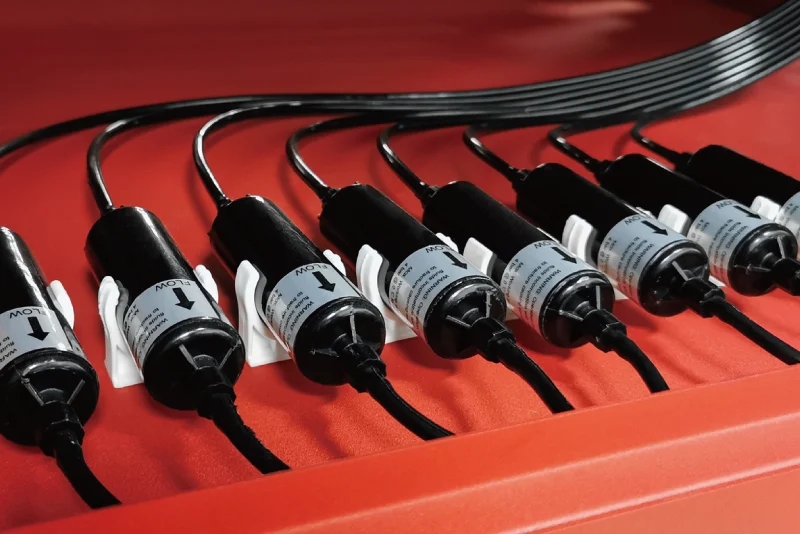

Ink Filter System

Rigorous ink filtration design, effectively avoid the impurities from going into the ink supply system.

Ink Stirring System

Mature time-set stirring system for white ink, effectively decrease the problems caused by white ink precipitation.

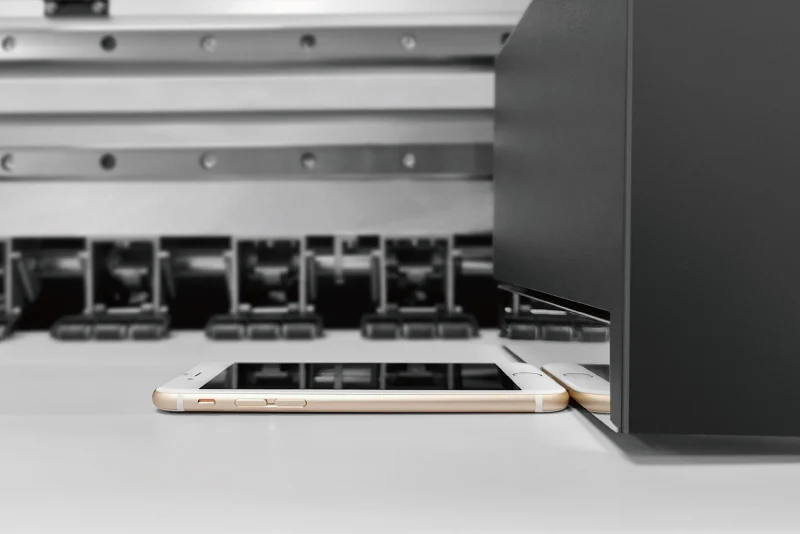

Anti-collision System

Printer will automatically stop when the printhead carriage hit any unexpected object during working, and system memory function support continuing printing from the interruption part, reduce the material waste.

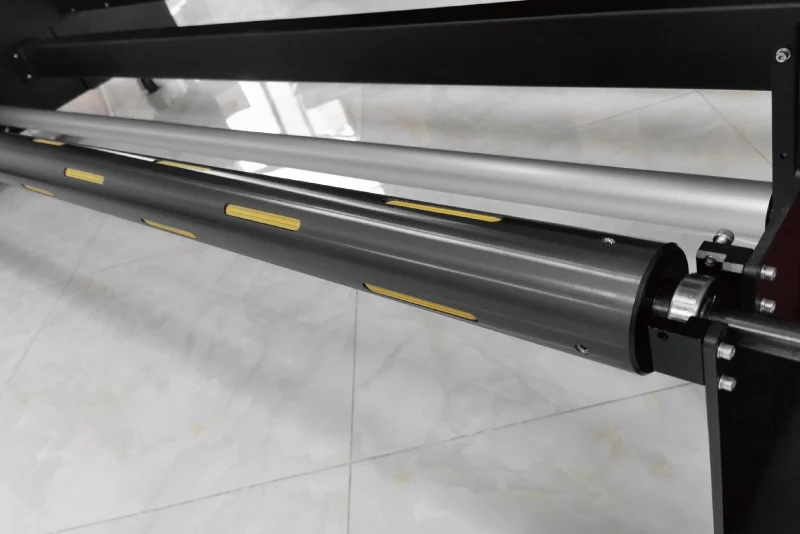

Heavy Duty Roller

Heavy duty material roller, load-bearing can reach maximum 180KG. And it can adapt to different diameter material by adjusting the air pressure inside the roller.

Download PDF Brochure

Model NO.		UR-3200S	UR-3200R	UR-3200R	UR-3200K
Printhead		3/4 × Epson i3200-U	3/4 × Ricoh GEN5	3/4 × Ricoh GEN6	4/8 × KonicaKM1024i-13pl
Resolution(dpi)		2400 dpi MAX	1200 dpi MAX	1200 dpi MAX	1440 dpi MAX
Media	Width	3200 mm MAX
Media	Types	Canvas, Leather, PET Film, Reflective Film, Soft Ceiling Film Etc
Ink	Type	UV Ink
	Color	CMYK / CMYK+W / CMYK+W+V (Fluorescent Color and Gold Foil Varnish Available)
	Curing	High Quality UV-LED Lamp
Speed	Printing Mode	CMYK
	Draft	55 ㎡/h (4 Heads)	30 ㎡/h (4 Heads)	36 ㎡/h (4 Heads)	80 ㎡/h (8 Heads)
	Production	36 ㎡/h (4 Heads)	15 ㎡/h (4 Heads)	18 ㎡/h (4 Heads)	55 ㎡/h (8 Heads)
	Quality	25 ㎡/h (4 Heads)	12 ㎡/h (4 Heads)	14 ㎡/h (4 Heads)	41 ㎡/h (8 Heads)
Ink Supply System		Two advanced separate negative pressure systems (One for color and varnish, One for white).
Cleaning		Automatic Cleaning, Anti-Clogging Flash Function & Capping System
Feed & Take Up		Automatic Media Feeding (Standard) & Take up System (Optional)
Rip Software		FlexiPRINT (Standard) /Onyx (Optional)
Connector		USB 3.0
Power		AC 110/ 220V, 50/ 60Hz, 1800W
Size	Machine	L5500×W900×H1630 mm
Size	Packing	L5160×W1100×H1950 mm
Weight	Machine	920 KG
Weight	Packing	1150 KG
