1.High-density UV curable ink produces rich, vibrant colors on coated or uncoated media.
2.High quality UV lamp, long lifespan, low heat, and instant on-off.
3.Standard media feeding and take-up system. Good for not only UV DTF printing, but also regular vinyl, pp paper, photo paper, banner, etc.

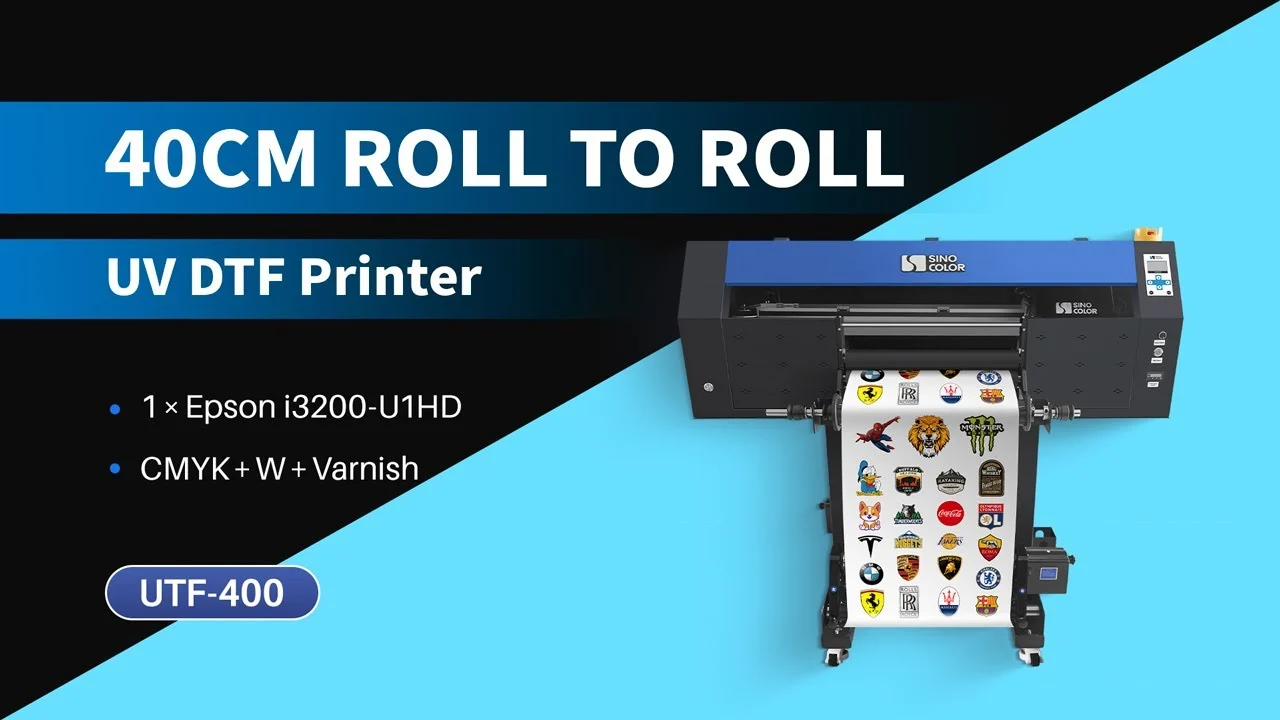

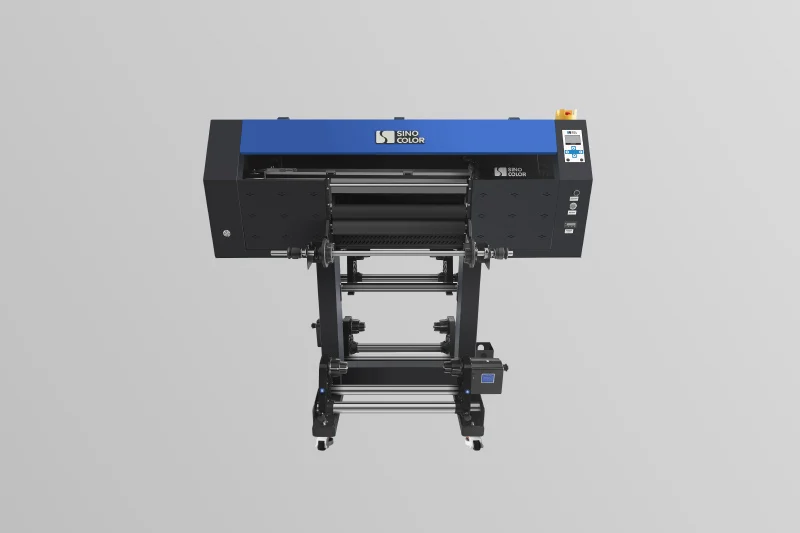

Printing and laminating all in one. Achieve high precision roll to roll UV DTF printing. Your high productivity choice.

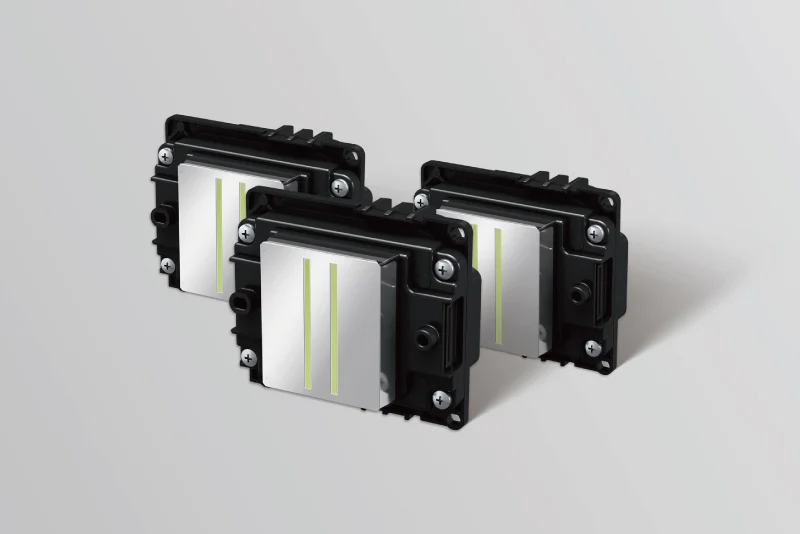

Equipped with 3 pcs Epson i1600-U heads, the high speed printing choice.

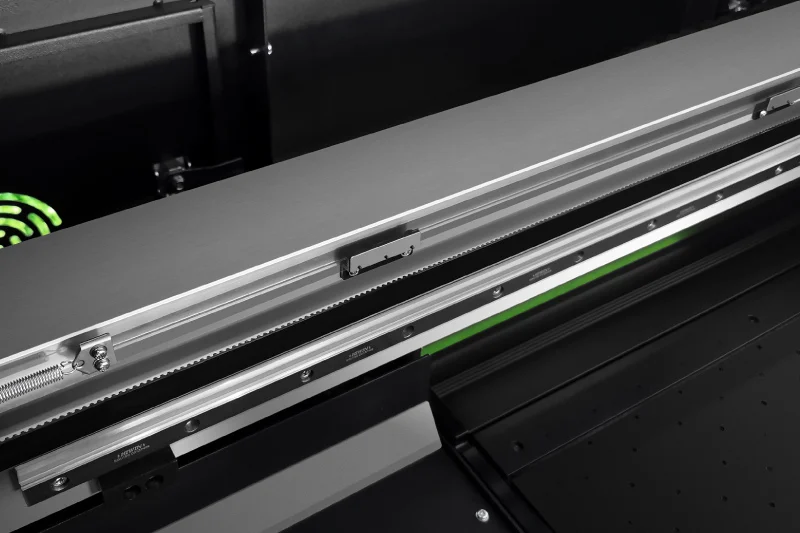

Branded accessories are used for high attrition areas. Greatly increased the lifetime and stability of the machine. For example, the Hiwin guide rail, German Igus drag chain, Italian Megadyne belt.

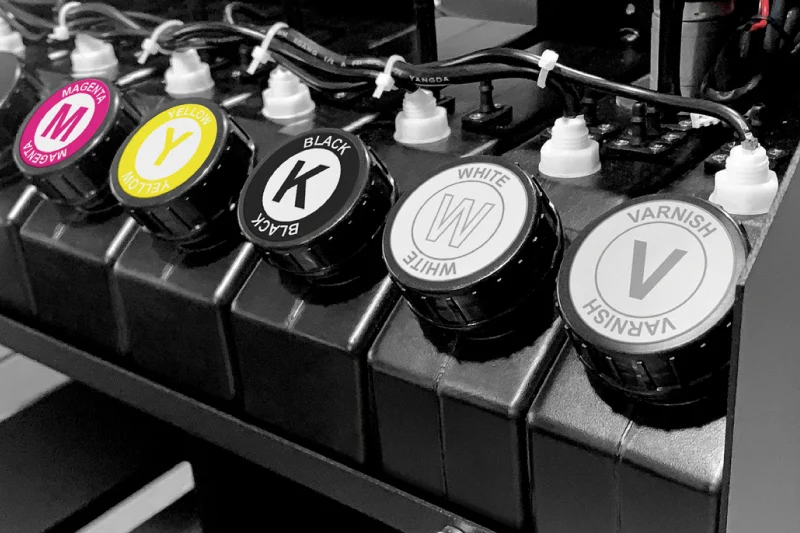

Mature time-set stirring system for white ink, effectively decreases the problems caused by white ink precipitation.

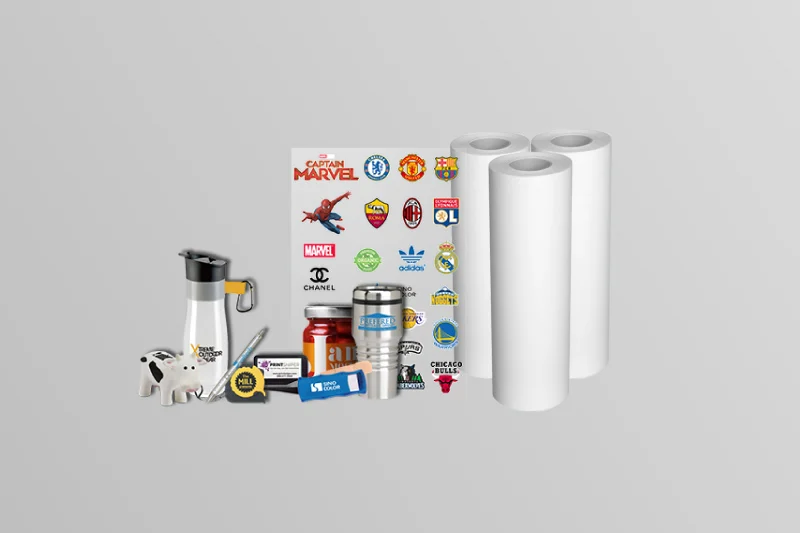

Good for not only roll to roll UV DTF crystal sticker, but also printing of regular PP paper, photo paper, non-woven fabric, canvas, etc.

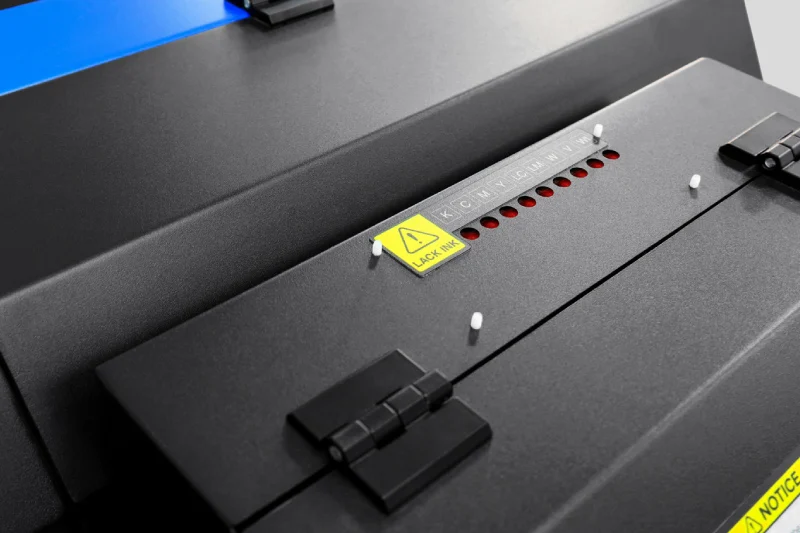

Gives LED light signal reminding operator to fill the ink. No interruption during printing job any more.

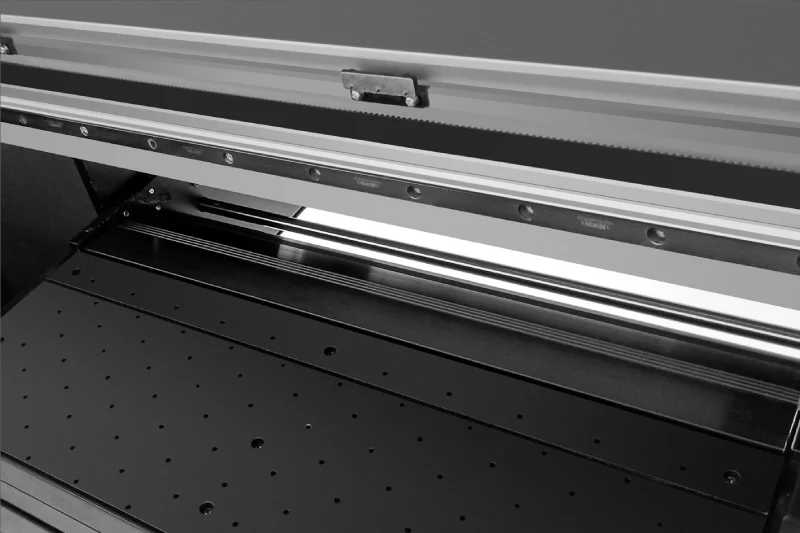

Ensure the high accuracy of each carriage movement.

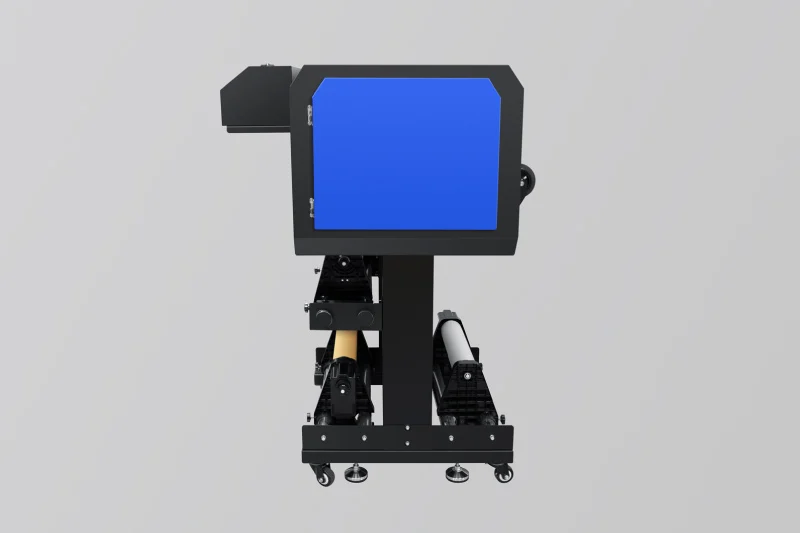

Standard media feeding and take-up system. Roll the printed material automatically and increase the efficiency.

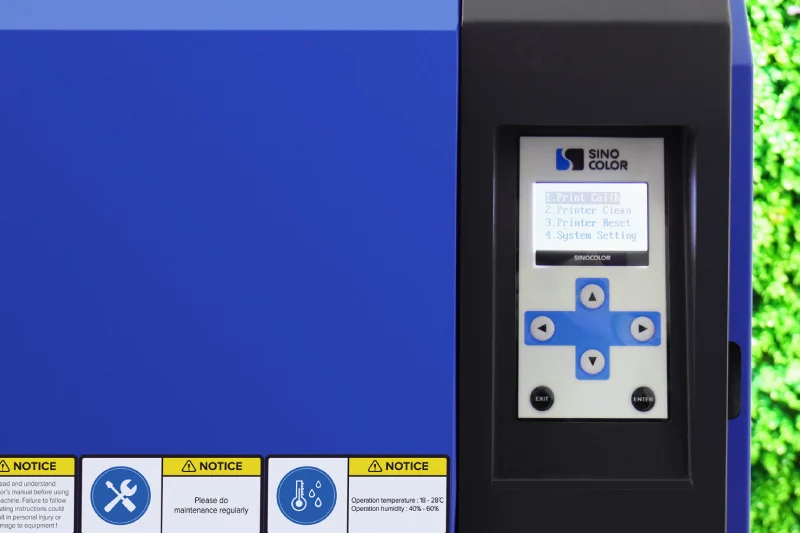

Adopts the latest program Intelligent Error Auto-Detection boards, it can guide user to find solution very quickly.

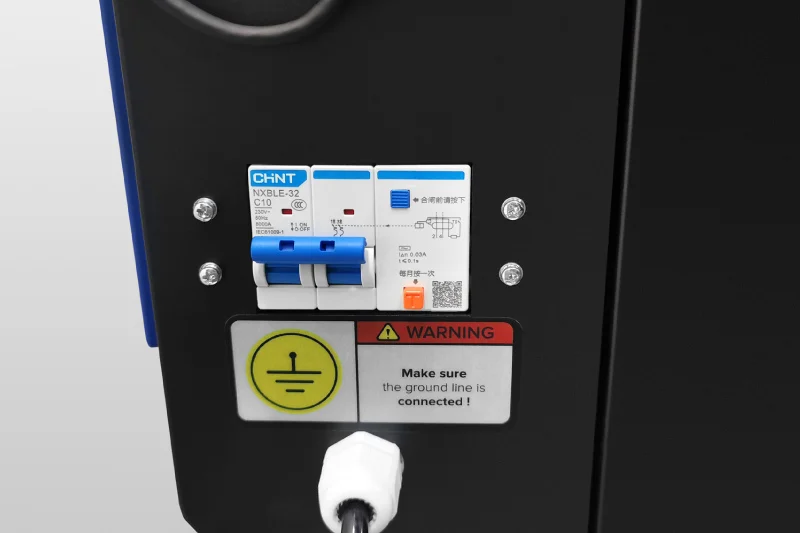

Protect the safety of the whole electronic system.
1.High-density UV curable ink produces rich, vibrant colors on coated or uncoated media.
2.High quality UV lamp, long lifespan, low heat, and instant on-off.
3.Standard media feeding and take-up system. Good for not only UV DTF printing, but also regular vinyl, pp paper, photo paper, banner, etc.
| Model NO. | UTF-400D Plus | UTF-600D Plus | |
|---|---|---|---|
| Printhead | 3/4 × Epson i1600-U | ||
| Resolution(dpi) | 2400dpi MAX | ||
| Media | Width | 400 mm MAX | 600 mm MAX |
| Types | UV DTF Crystal Label, Vinyl, PP Paper, Photo Paper, Film, Etc | ||
| Ink | Type | UV Ink | |
| Color | CMYK + W + V / CMYK + W + Regular Varnish + Gold Foil Varnish | ||
| Curing | High Quality Water Cooling UV-LED Lamp | ||
| Speed | Printing Mode | CMYK + W + V | |
| Production | 4.5 – 6 ㎡/h | ||
| Environment | Temperature: 20-28℃, Humidity: 40%-60% | ||
| Cleaning | Automatic Cleaning, Anti-Clogging Flash Function & Capping System | ||
| Feed & TakeUp | Automatic Media Feeding (Standard) & Take up System (Standard) | ||
| Rip Software | Maintop (Standard) / FlexiPRINT (Optional) / Onyx (Optional) | ||
| Operation System | Windows 7 / XP / 10 | ||
| Connector | USB 3.0 | ||
| Power | AC 110/ 220V, 50/ 60Hz, 700W | ||
| Size & Weight | Machine | L1400×W900×H1400 mm/ 150KG; L1600×W900×H1400 mm/ 180KG (UTF-600) | |
| Packing | L1550×W900×H1060 mm/ 250KG; L1750×W900×H1060 mm/ 280KG (UTF-600) | ||
