UV Flatbed Printer FB-1612D series

|

When choosing the UV flatbed printer, 160x120cm maybe too small to print all the material you need, and 250x130cm maybe too big and cost too much. Then check this FB-1612D series. A perfect size UV printer to fulfill all your printing demand, for not only signage, gifts, DIY products, but also decoration

Download PDF Brochure

Double built-in high-power independent vacuum pump. Guarantee the powerful suction.

User-friendly projecting touch screen. Make the operation to be at your fingertips.

Advanced ClS Machine Vision System (Optional)

Detect not only the object position, but also the direction automatically.Greatly increase the positioning precision and work efficiency.

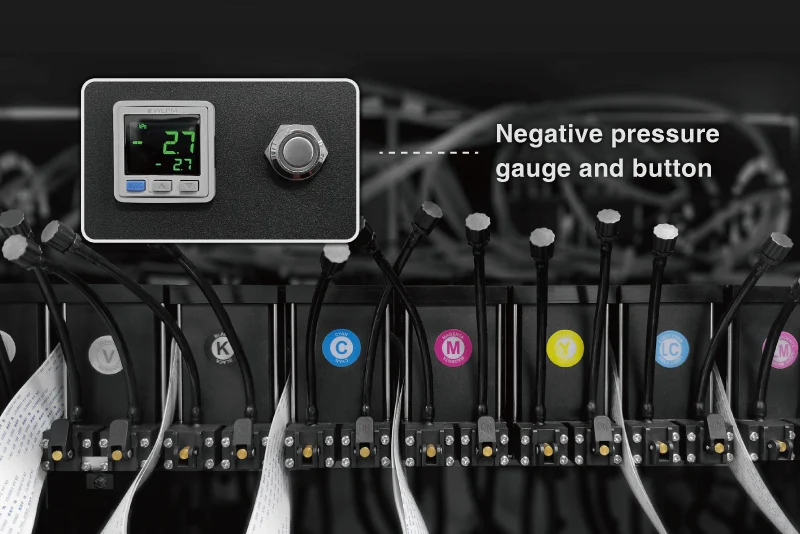

Negative Pressure System (Optional)

Equipped with two advanced separate negative pressure systems (One for color and varnish, One for white). Stabilize the air pressure inside the ink supply system, one button to fill the ink. Simply and effectively ensure the continuous ink flow, assure the maintenance of multi-heads equipment to be easy as well.

Consistent design of double guide rail , guarantee the stable movement of carriage.

And one-time molding aluminum beam that ensure the high accuracy of each carriage movement.

Built-in media alignment pins, guarantee the quick, simple and high precision media positioning.

Divide the vacuum table to 4 zones. Concentrate energy, Save energy.

Anti-collision system is equipped to protect the printhead and carriage all the time

Quality anti-static device is optional. eliminate static efficiently and reliably from printer and the media. Gurantee the high precision output.

Automatic media height detecting system is equipped, provide great help for setting the proper print height.

Advanced magnetic levitation transmission is available (optional). Easy to clean, durable. Built for fast, stable, and long-term running.

Oxidation treated high precision platform. High resolution, easy to clean.

Branded circuit breaker to protect the safety of the whole electronic system.

Lack ink alarm system is equipped. Give LED light signal reminding operator to fill the ink. No interruption during printing job any more.

White ink stir system is equipped. Decrease the problems caused by white ink precipitation.

Screw rod type transmission for the Y axis. Guarantee the high precision of each printing.

High grade two-layer Germany Igus drag chain. Effectively protect ink tube and cables.

When choosing the UV flatbed printer, 160x120cm maybe too small to print all the material you need, and 250x130cm maybe too big and cost too much. Then check this FB-1612D series. A perfect size UV printer to fulfill all your printing demand, for not only signage, gifts, DIY products, but also decoration

Download PDF Brochure

Model No.		FB-1612D
Printhead		2/3/4 pcs Epson i1600-U Printheads
Resolution		2400 dpi
Media	Thickness	12 cm MAX
	Size	1600 x 1200 (mm)
	Types	Glass, Acrylic, Ceramic, Metal, Paper, Wood, Leather, PVC , PP, PE, PTFE Etc.
Speed	Draft	38 sqm/h ( CMYK, 4 heads )
	Production	25 sqm/h ( CMYK, 4 heads )
	High Quality	18 sqm/h ( CMYK, 4 heads )
Ink	Type	UV Ink
	Color	CMYK/ CMYK + W/ CMYK + W + V/ CMYK + W + V + Pre-treating Liquid
	Capacity	500 ML
	Dry System	UV_LED light system
Rip Software		MainTop (Standard) / FlexiPrint (Optional)
PC Operation System		Windows 7/XP/10
Operation environment		Temperature: 20-28℃, Humidity: 40%-60%
Power Supply		AC 110/ 220V, 50/ 60Hz, 4600W
Image Format		TIFF, JPEG, EPS, PDF…
Size & Weight	Machine	L3260×W2020×H1520 mm/ 670 KG
Size & Weight	Packing	L3400×W2170×H1780 mm/ 850 KG
