Direct to Garment printing is the process of printing full-colour images onto garments. It can be used on light or dark colored garments. Using the latest printing technology and top quality DTG machines, get the high added value for T-Shirts, polo shirts, hoodies and other clothing at the lowest cost.
SinoColor System. Much more professional and more stable than desktop modified printer. Control the color freely.
One printer, two engines. Two printheads to drive the machine. One for color ink, one for white ink. Perfectly balanced the printing quality and productivity.Best solution for not only light color garment, but also dark color garment.
Maximumly use mold to produce machine components to achieve amazing resolution.
Automatic media height detecting system is standard equipped. Simplify the setting of proper platform height.
Low ink alarm,waste ink alarm are equipped to protect the printer.
High quality Hiwin steel guide rail. Build for long life use.
White ink circulation and stirring system are equipped. Reduce problem caused by white ink precipitation.

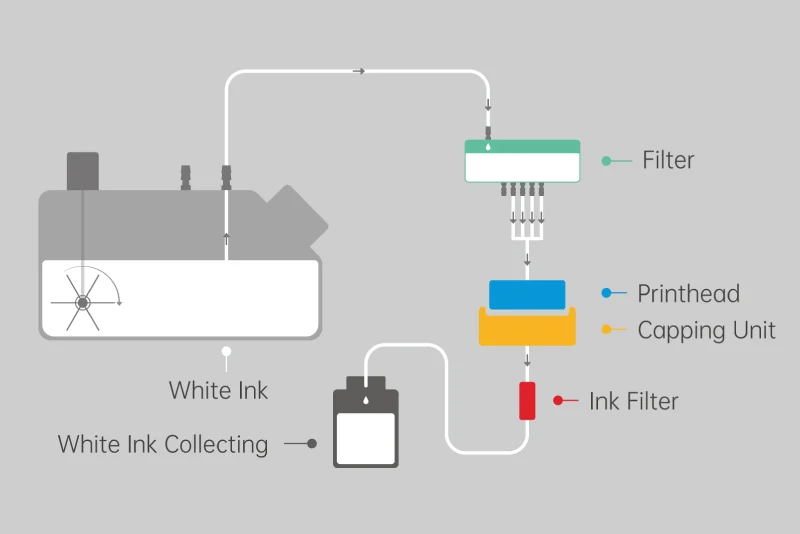

White ink collecting and reusing systems are equipped. Collecting and filtering the ink from the capping unit, then reusing. Greatly reduce the waste of white ink.

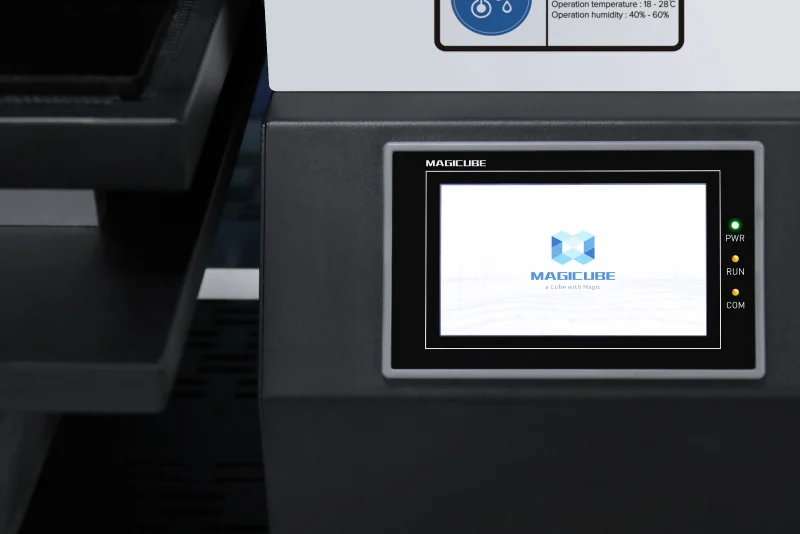

Well-designed touch screen. Easily Adjust platform position.

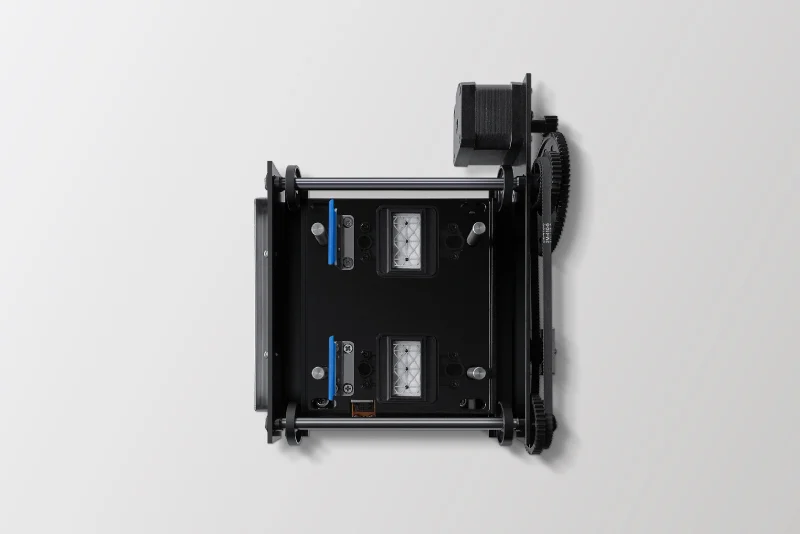

High accuracy and aluminum made capping station system. Lengthways design of two printheads, decrease the machine width and packing size. Besides, sufficient space between white printhead and color ink printhead, avoid the ink mixing problem, guarantee the bright output.

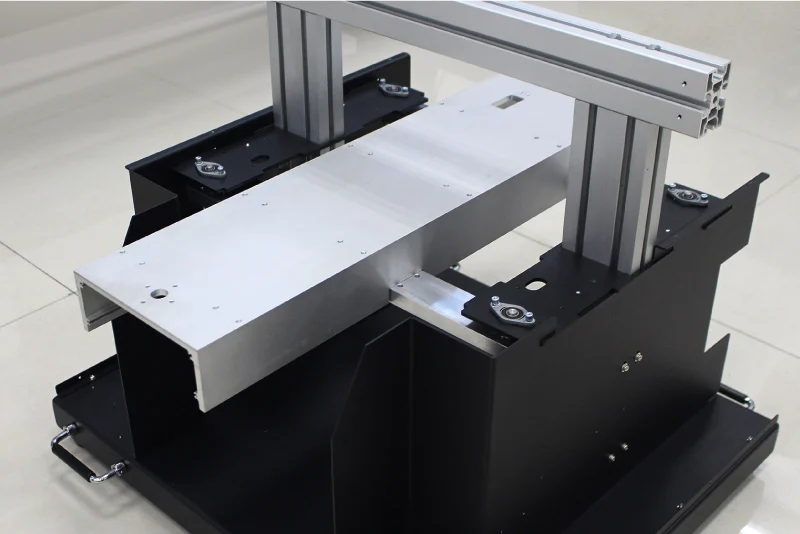

Screw drive transmission and dual Y-axis guide rail are equipped to guarantee the high precision printing.

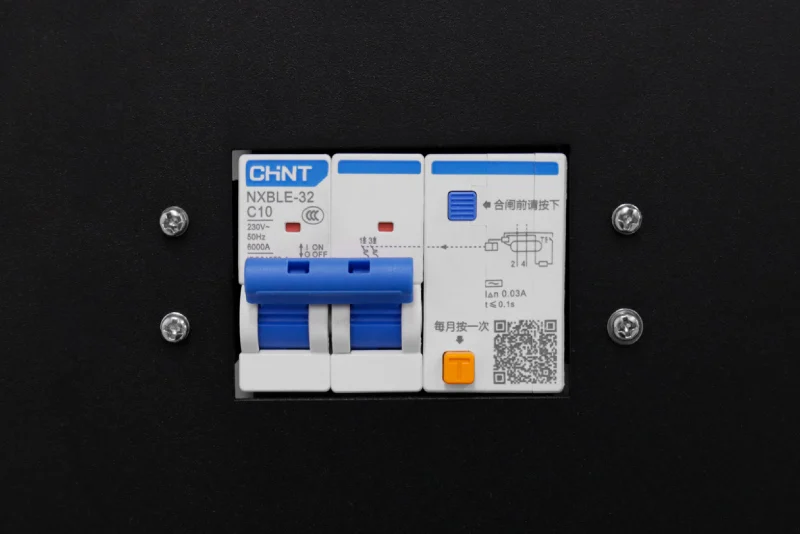

Branded circuit breaker to protect the safety of the whole electronic system.

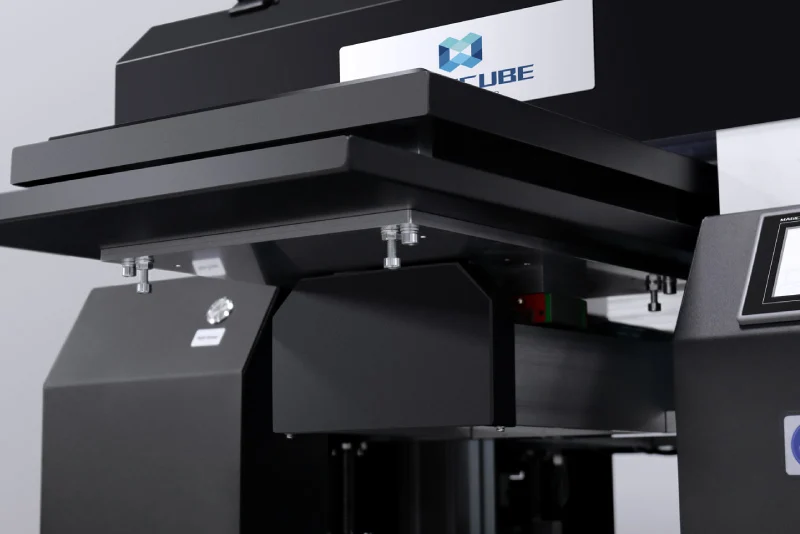

Well-designed adjustable platform. The good smoothness of platform and high accuracy printing are guaranteed.

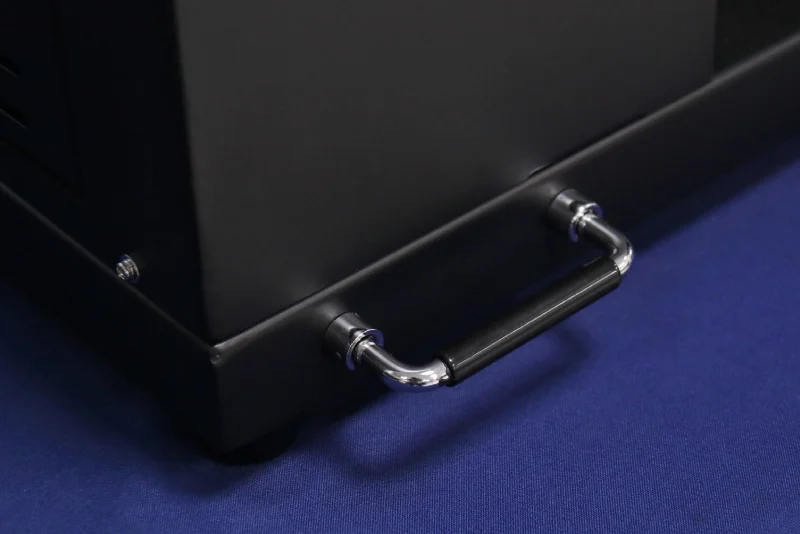

Attentive handle designing, lift and move the equipment easily.
Direct to Garment printing is the process of printing full-colour images onto garments. It can be used on light or dark colored garments. Using the latest printing technology and top quality DTG machines, get the high added value for T-Shirts, polo shirts, hoodies and other clothing at the lowest cost.
| Model No. | TP-300i | TP-300D | TP-600i | TP-600D | |
|---|---|---|---|---|---|
| Print Head | 1XEpson Head | 2 x Epson i1600 Heads | 1XEpson Head | 2 x Epson i1600 Heads | |
| Print Resolution | 1440 dpi | 2400 dpi | 1440 dpi | 2400 dpi | |
| Ink Color | CMYK | CMYK +W | CMYK | CMYK +W | |
| Printing Speed | 2 minutes for one T-shirt | ||||
| Print Head Adjustable Height | 10 cm MAX | ||||
| Printing Size | 30 x 40 cm MAX | 40 x 60 cm MAX | |||
| Print Direction | Intelligence double side | ||||
| Print Method | Micro piezo print technology,intelligence drops transformation technology | ||||
| Height Adjust | Electric | ||||
| Distance of Print Head Printing | 1-3 mm (2 mm is the best) | ||||
| Ink Supply System | CISS | ||||
| Ink Consumption | 15-20 ml / squre meter (1 liter print about 300PCS T-shirt) | ||||
| Min Ink Drop Size | < 1.5 PL | ||||
| Interface | USB 3.0 | ||||
| Rip Software | Maintop(Standard)/ FlexiPrint(Optional) | ||||
| Normal Working Environment | Temperature 18-30 Celsius, Humidity 30-70 RH, Clean room, Low dust, Less sun light | ||||
| Power | AC 110/ 220V, 50/ 60Hz, 300W | ||||
| Size&Weight | Machine | L820×W740×H560 mm / 82KG | L1070×W860×H560 mm / 110KG | ||
| Packing | L900*W840*H710 mm/100KG | L1150*W950*H680mm/140KG | |||
