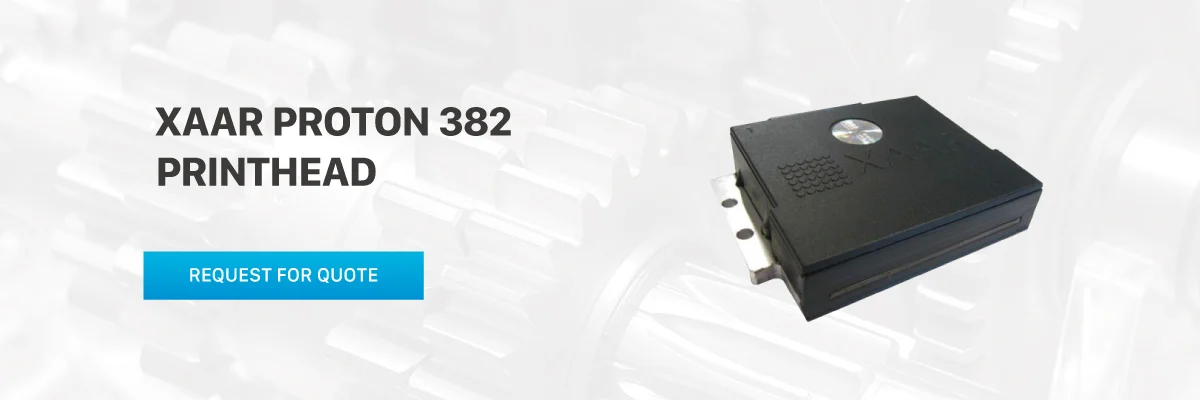

Xaar Proton 382 Printhead

Highest Print Quality

* 35pl drop size

* 180dpi native resolution

* Consistent drop placement

---

Increased Productivity

* 9.5kHz firing frequency

* Wide 53.7mm print swathe

---

Simplest Integration

* Self-initialising on start-up

* Lockable fluid and electrical connections

* On-board waveform and temperature compensation

* Simple pressure prime to fill

Simple to install and easy to integrate are the two key characteristics of the Xaar Proton printhead. Using the same electronics as the Xaar 500 (similar to the Xaar 126 electronics) the Xaar Proton provides existing Xaar customers an easy integration path with minimal product development.

---

Specifications

Physical Attributes		Xaar Proton
Active nozzles		382
Print swathe width		53.7 mm
Nozzle pitch		141µm
Nozzle density(nozzles per inch)		180 npi
Drop velocity*		5 m/s
Printhead weight(dry)		150 g
Dimensions(W x D x H)		86 x 21 x63.5 mm
Ink type		Solvent
Drop volume*		35 pl
Typical firing frequency*		9.5 kHz
